Removal and Replacement

WINDOW REGULATOR

REMOVAL

1. Remove the door trim panel.
2. Remove the waterdam.
3. Remove the window glass

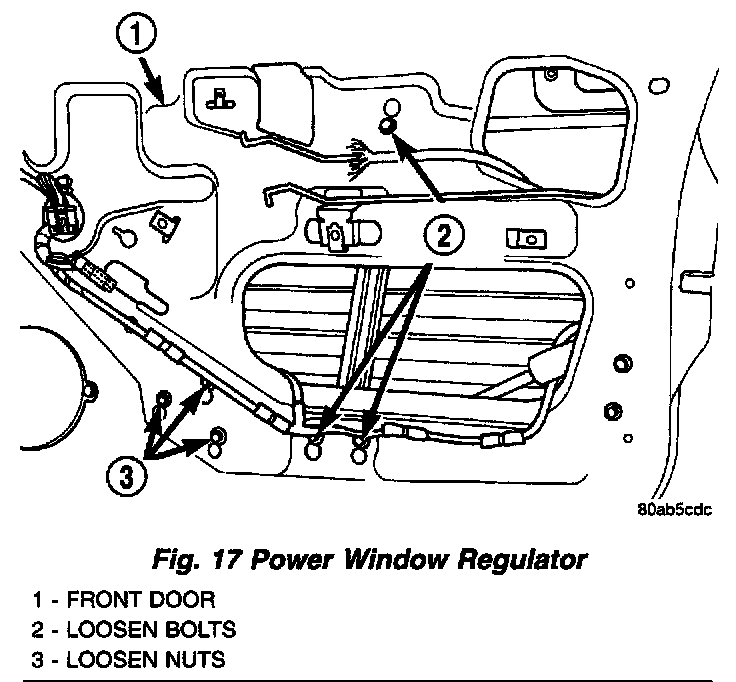

Fig. 17:

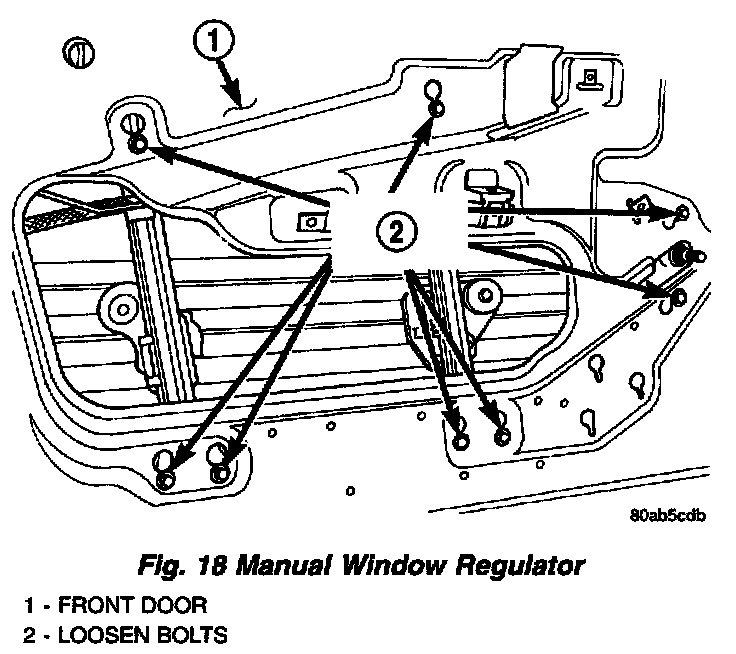

Fig. 18:

4. Loosen the bolts attaching the regulator to the inner door panel (Fig. 17) and (Fig. 18) as applicable.
5. Lift the regulator upward to release it from the key hole slots and remove it through the access hole in the door inner panel.

INSTALLATION

1. Position the regulator in the door and align with key hole slots.

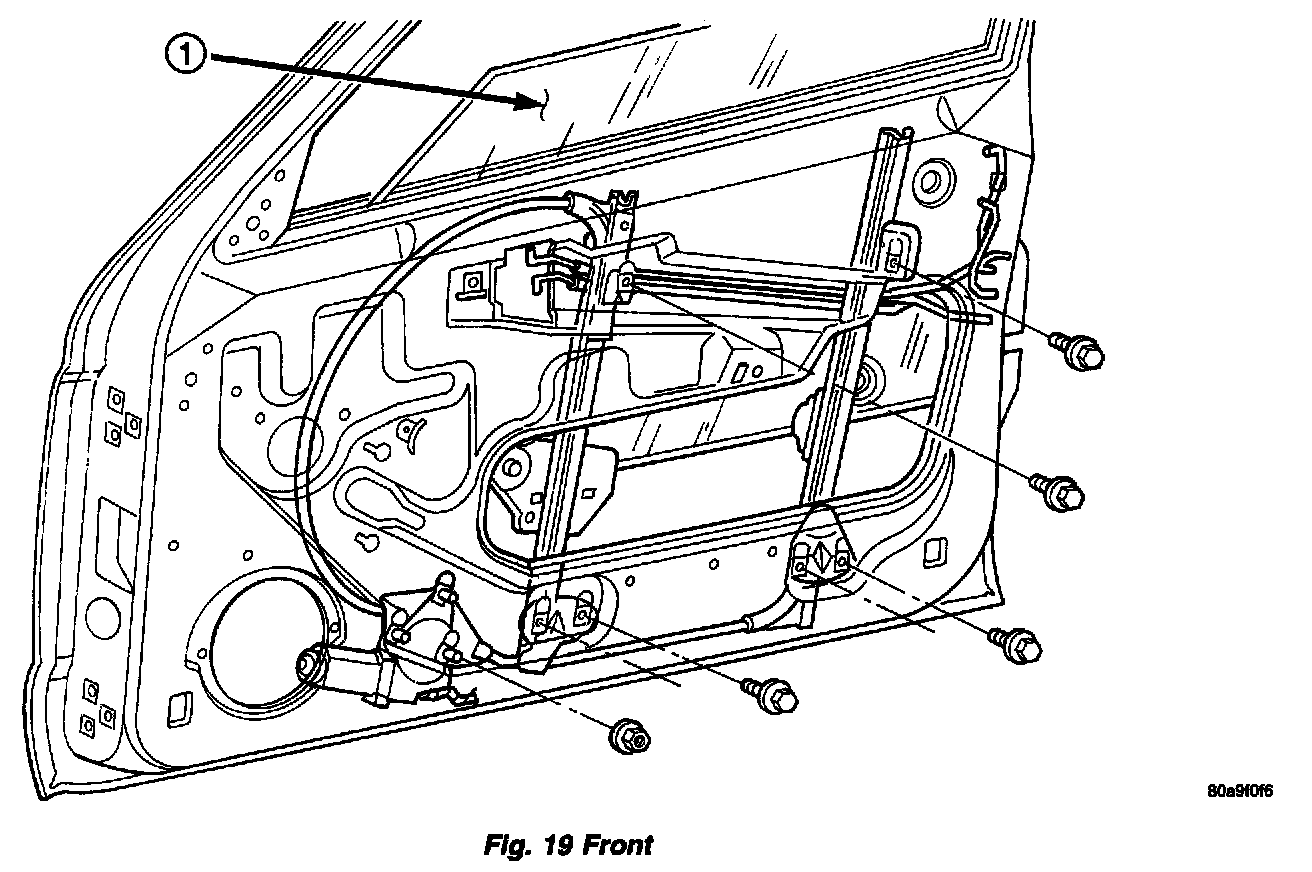

Fig. 19:

2. Attach the regulator to door inner panel with bolts (Fig. 19).
3. Install the window glass
4. Install the waterdam.
5. Install the trim panel.
