Checking the Engine Coolant Temperature Sensor Operation

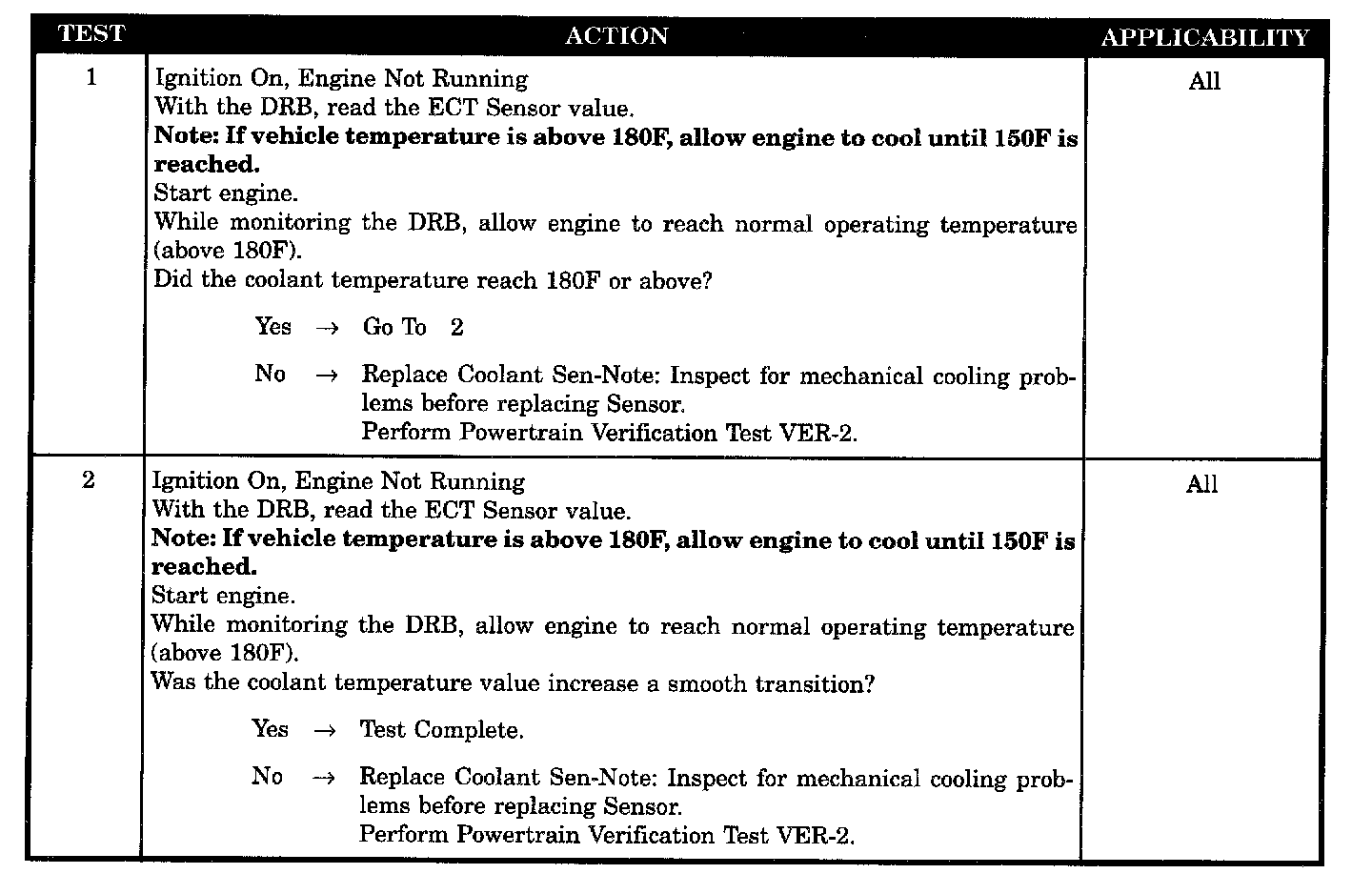

Tests 1 - 2:





SYMPTOM
CHECKING COOLANT SENSOR CALIBRATION

POSSIBLE CAUSES
- Temperature failed to reach at least 180 °F or above
- Temperature increase not smooth
