Checking Oxygen Sensor Heater

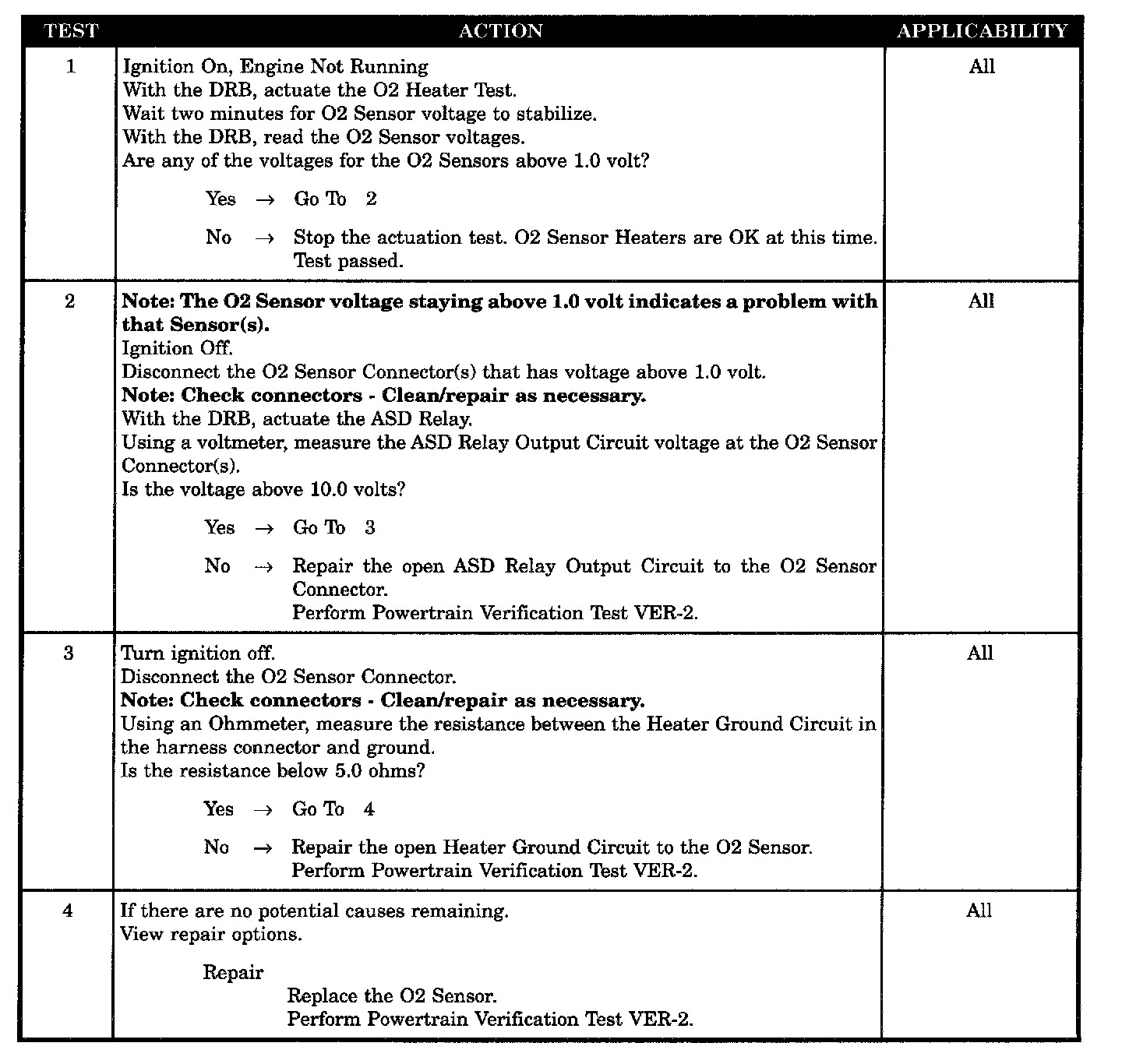

Tests 1 - 4:





SYMPTOM
CHECKING THE OXYGEN SENSOR HEATER

POSSIBLE CAUSES
- ASD relay output circuit open
- Heater ground circuit open
- O2 sensor
