Fuel Filter: Locations

Fig. 2 Fuel Pump Module Components:

The combination fuel filter and fuel pressure regulator is located on the top of fuel pump module.

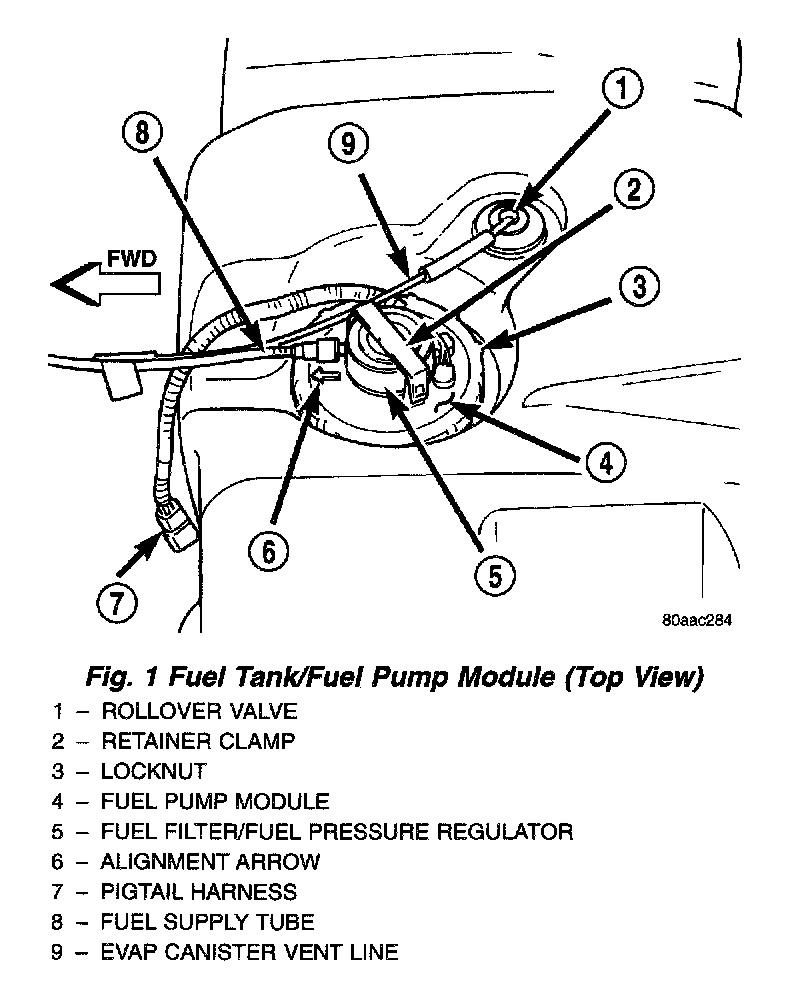

Fig. 1 Fuel Tank/Fuel Pump Module (Top View):

The fuel pump module is located on top of the fuel tank.
