Starting System

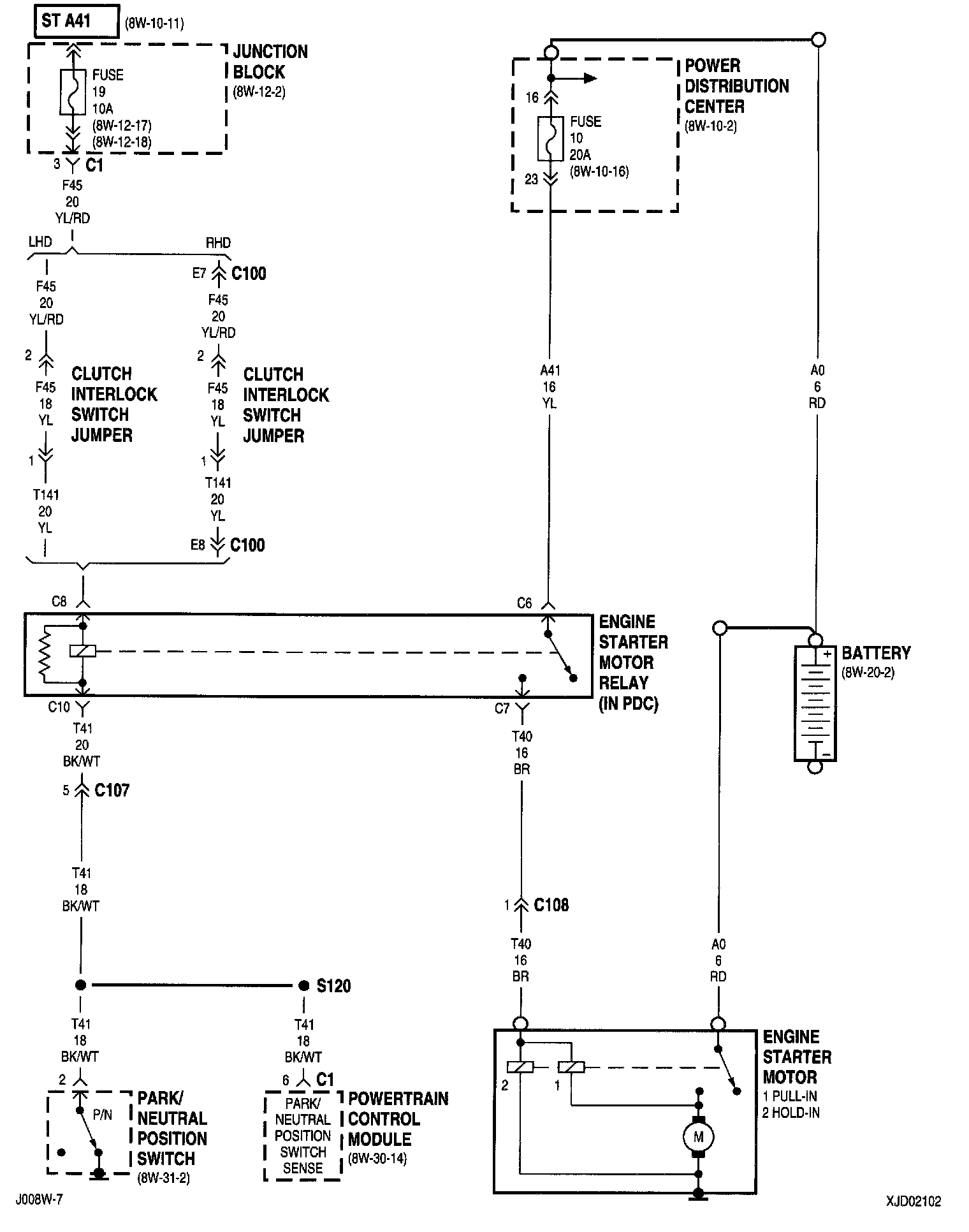

8W-21-2 (A/T):

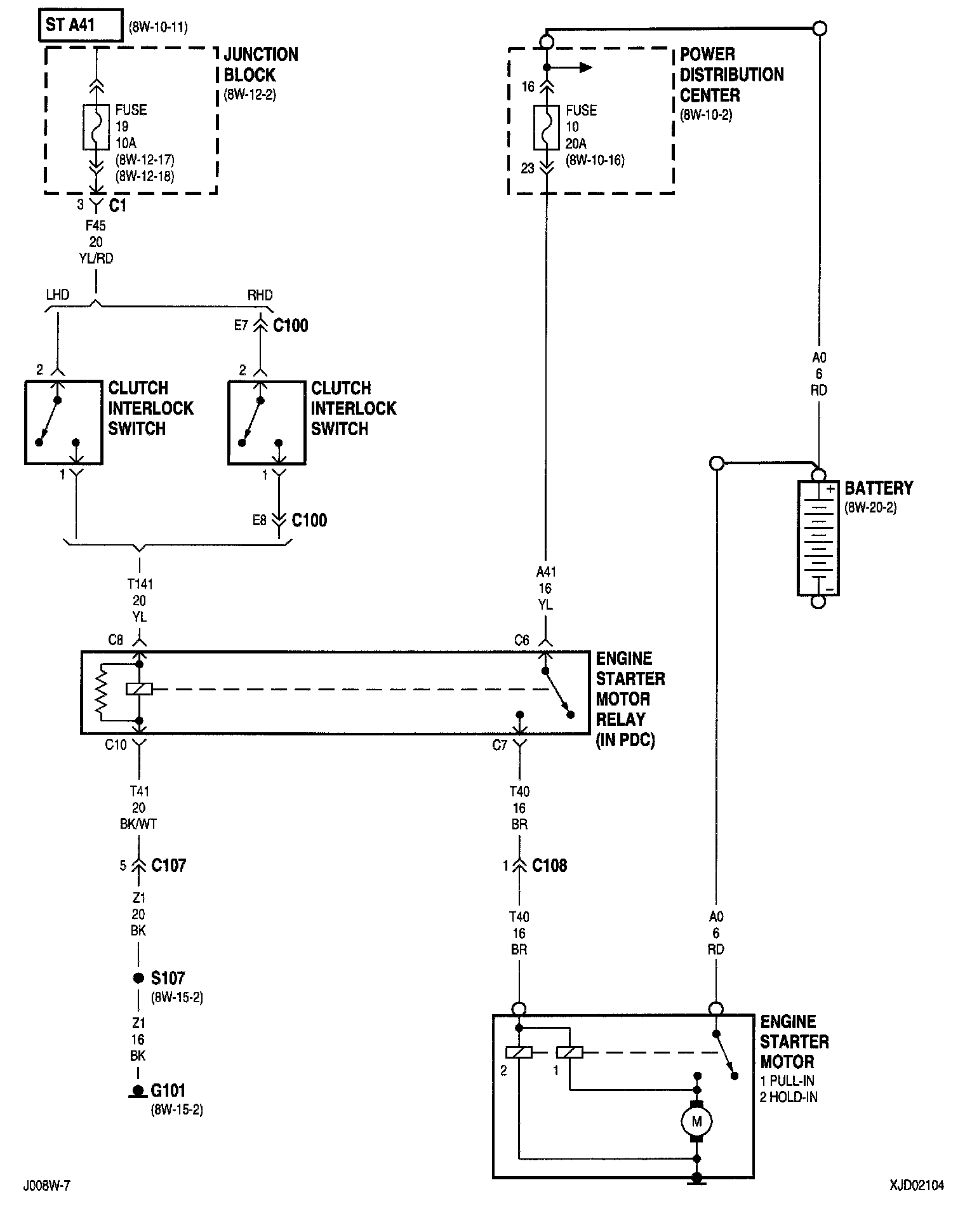

8W-21-4 (M/T):






NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
