Acceleration/Deceleration Sensor: Service and Repair

REMOVAL
1. Raise and fold rear seat assembly forward for access to sensor.
2. Disconnect switch harness.






3. Remove switch mounting screws.
4. Remove the acceleration switch.

INSTALLATION

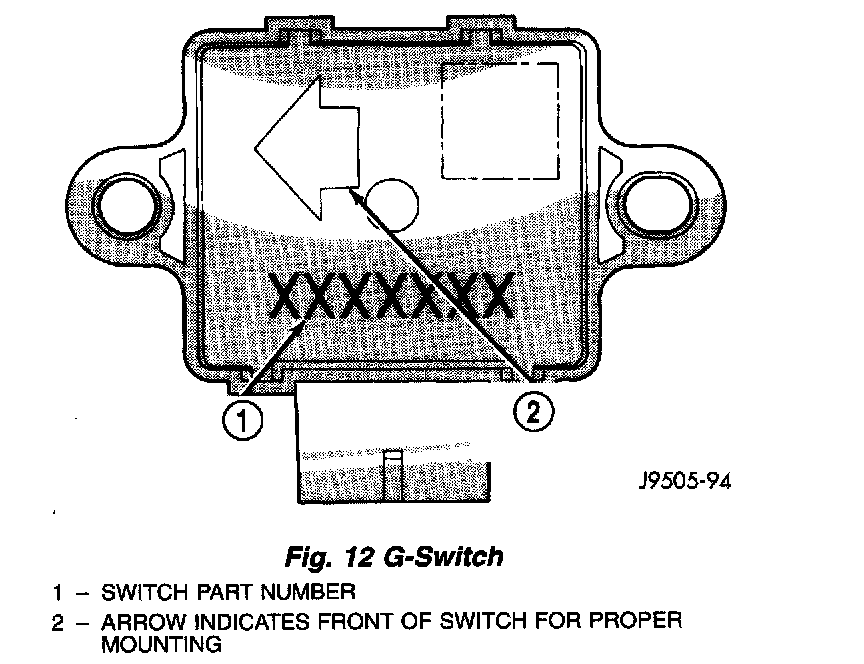

CAUTION: The mercury switch (inside the G-switch) will not function properly if the switch is installed incorrectly. Verify that the switch locating arrow is pointing to the front of the vehicle.

1. Position switch in mounting bracket.
2. Install switch mounting bolts and tighten to 3 Nm (27.5 inch lbs.).
3. Connect harness to switch. Be sure harness connector is firmly seated.
4. Move seat back to normal position.
