Checking Fuel System

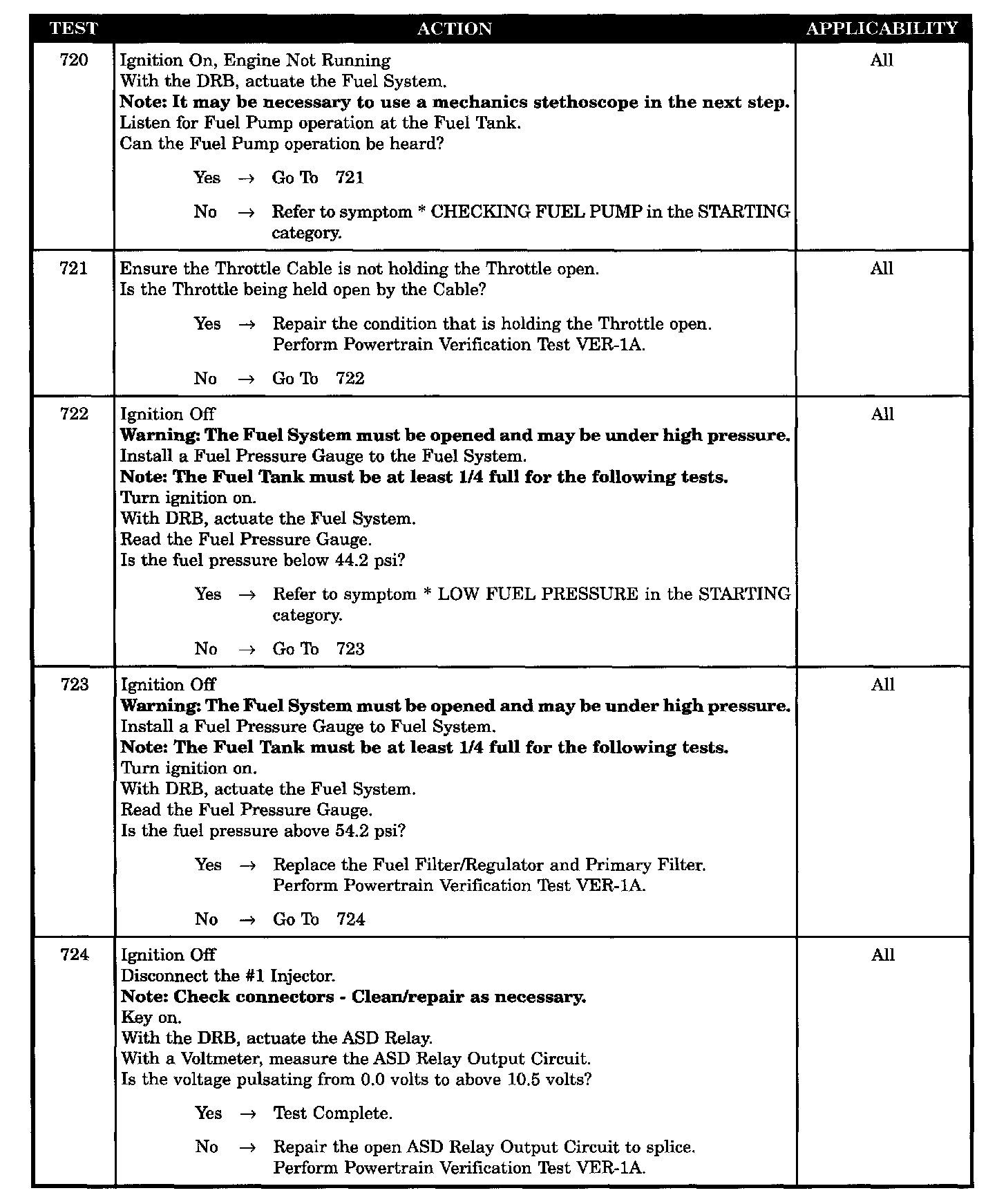

Tests 720 - 724:




SYMPTOM
* CHECKING FUEL SYSTEM

POSSIBLE CAUSES
- Auto shutdown relay output circuit open
- Throttle cable obstruction
- Fuel system filter(s) defective
