July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

System Diagram

Oil Pump Components AW-4 Automatic Transmission:

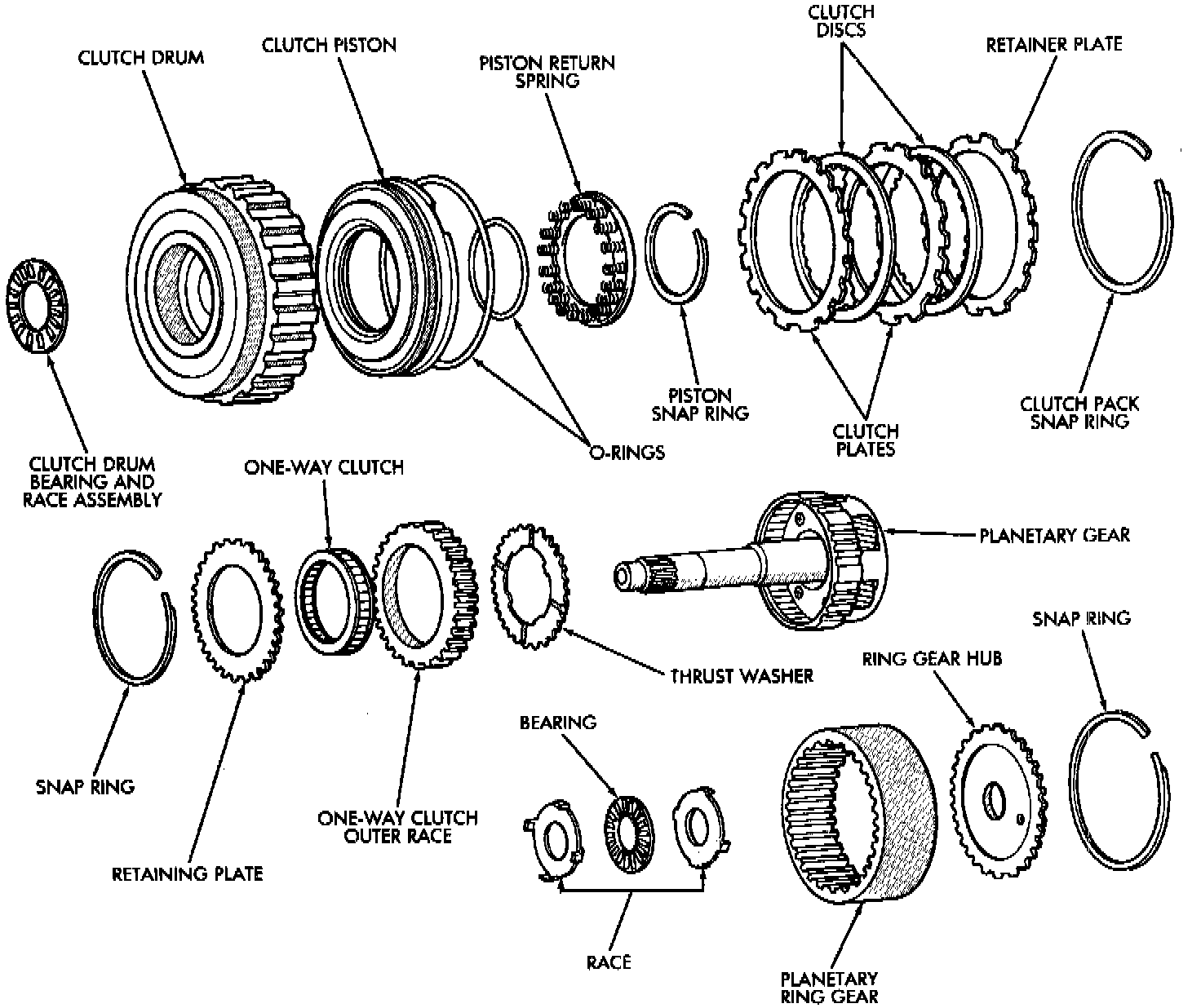

Overdrive Planetary Gear And Clutch Components AW-4 Automatic Transmission:

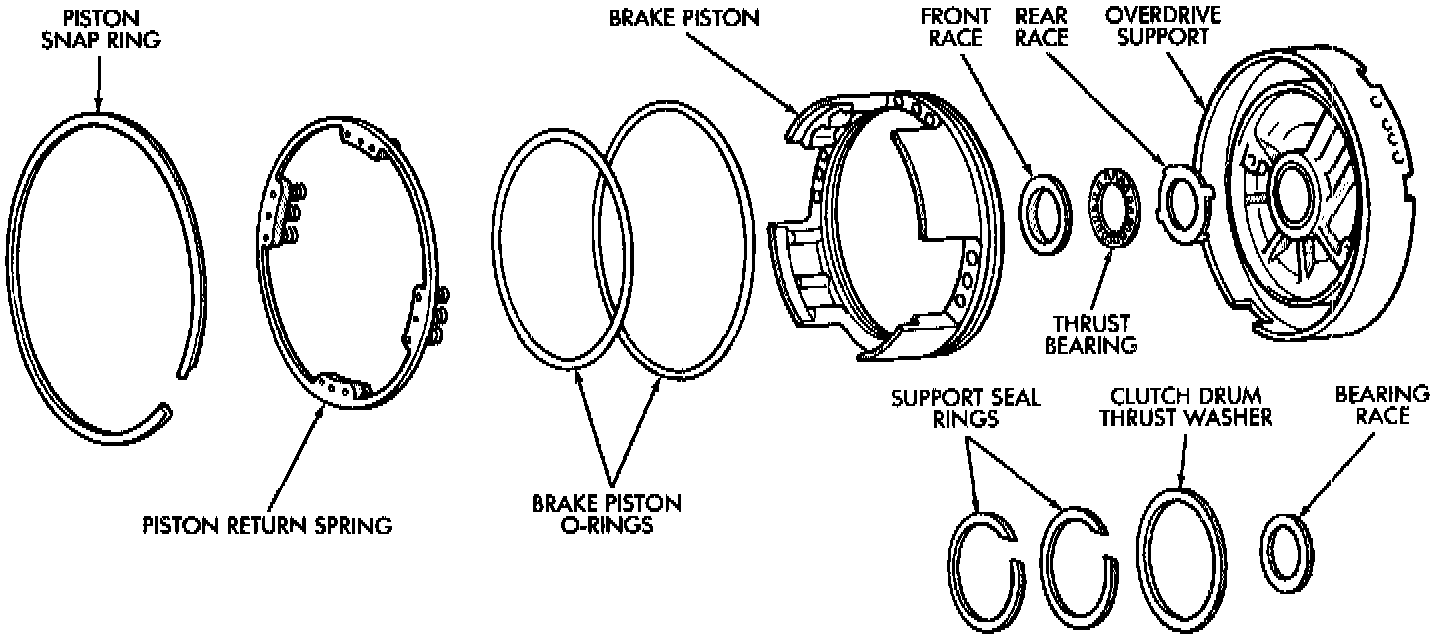

Overdrive Support Components AW-4 Automatic Transmission:

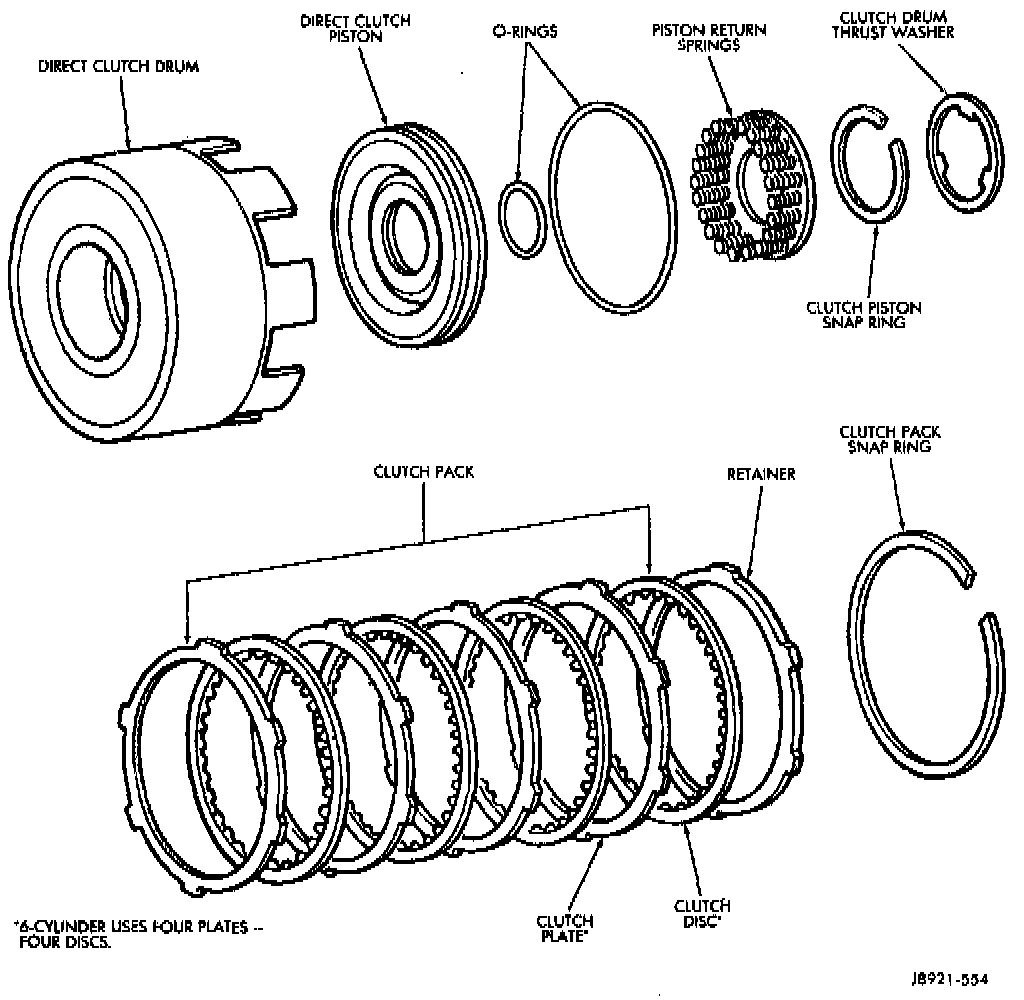

Direct Clutch Components AW-4 Automatic Transmission:

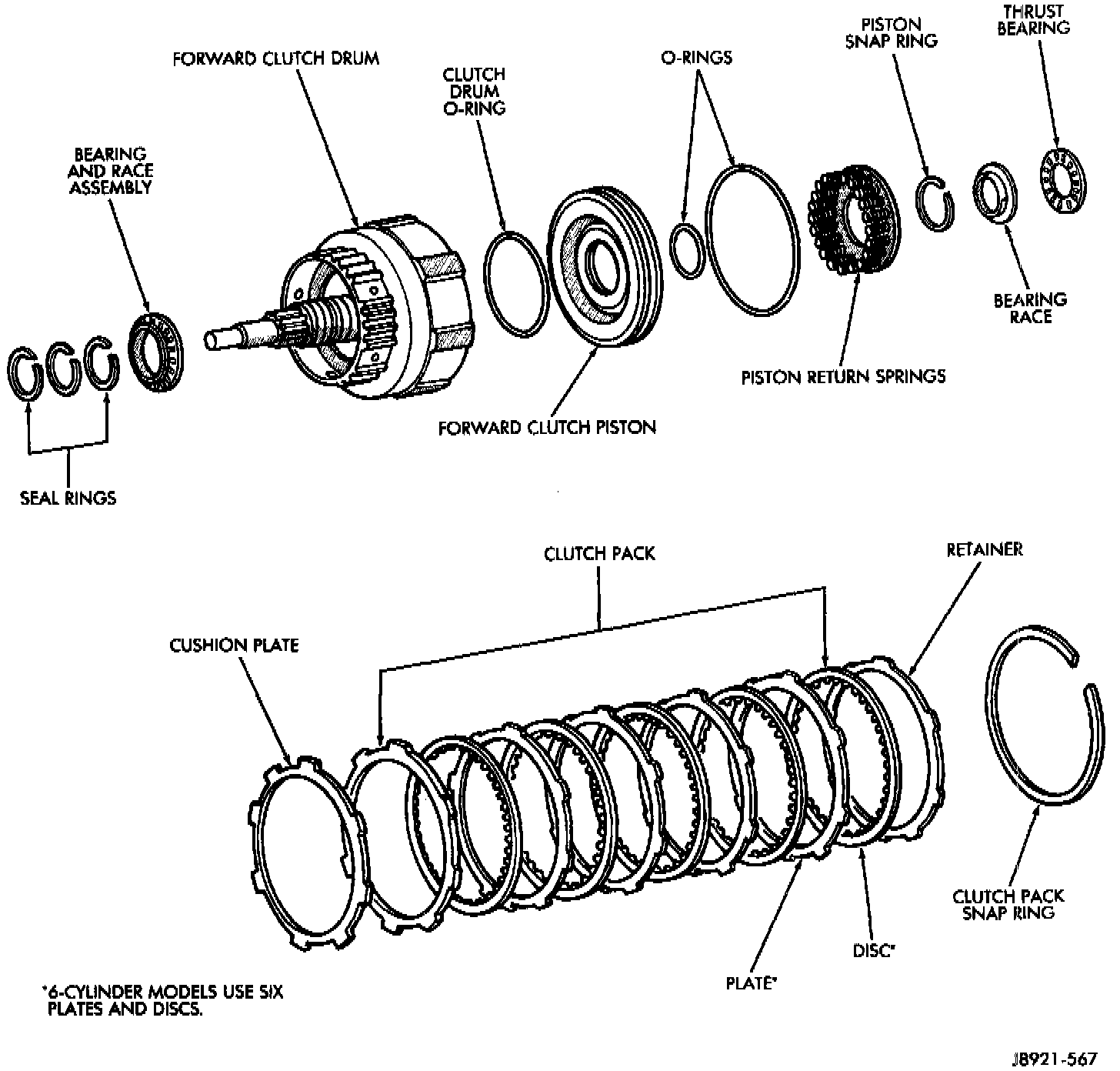

Forward Clutch Components AW-4 Automatic Transmission:

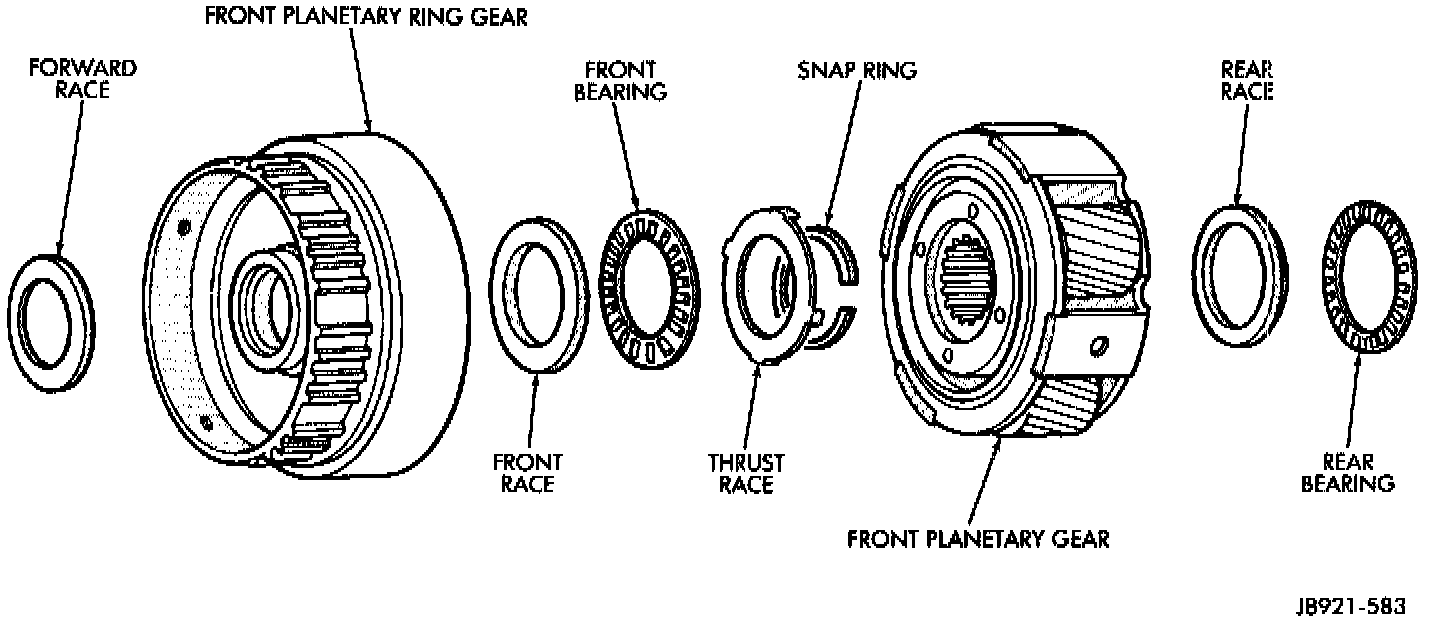

Front Planetary Gear Components AW-4 Automatic Transmission:

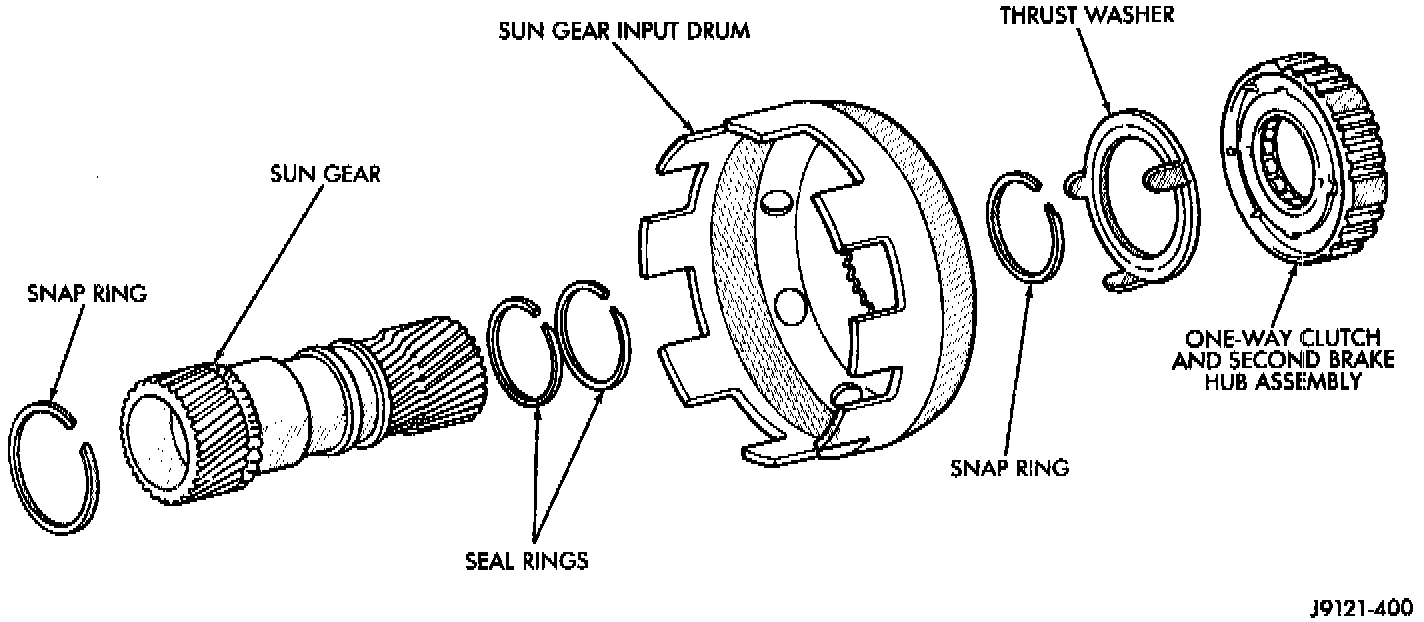

Sun Gear And One-Way Clutch Components AW-4 Automatic Transmission:

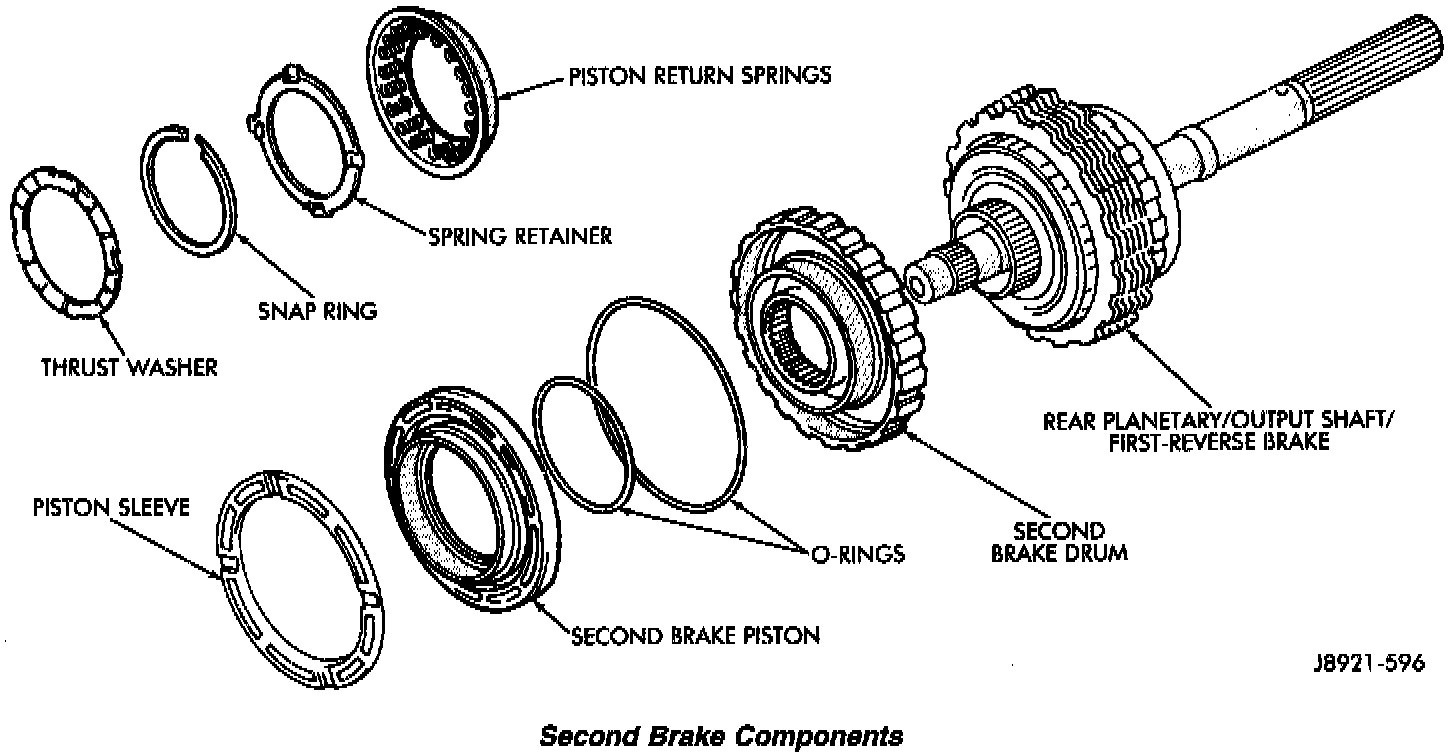

Second Brake Components AW-4 Automatic Transmission:

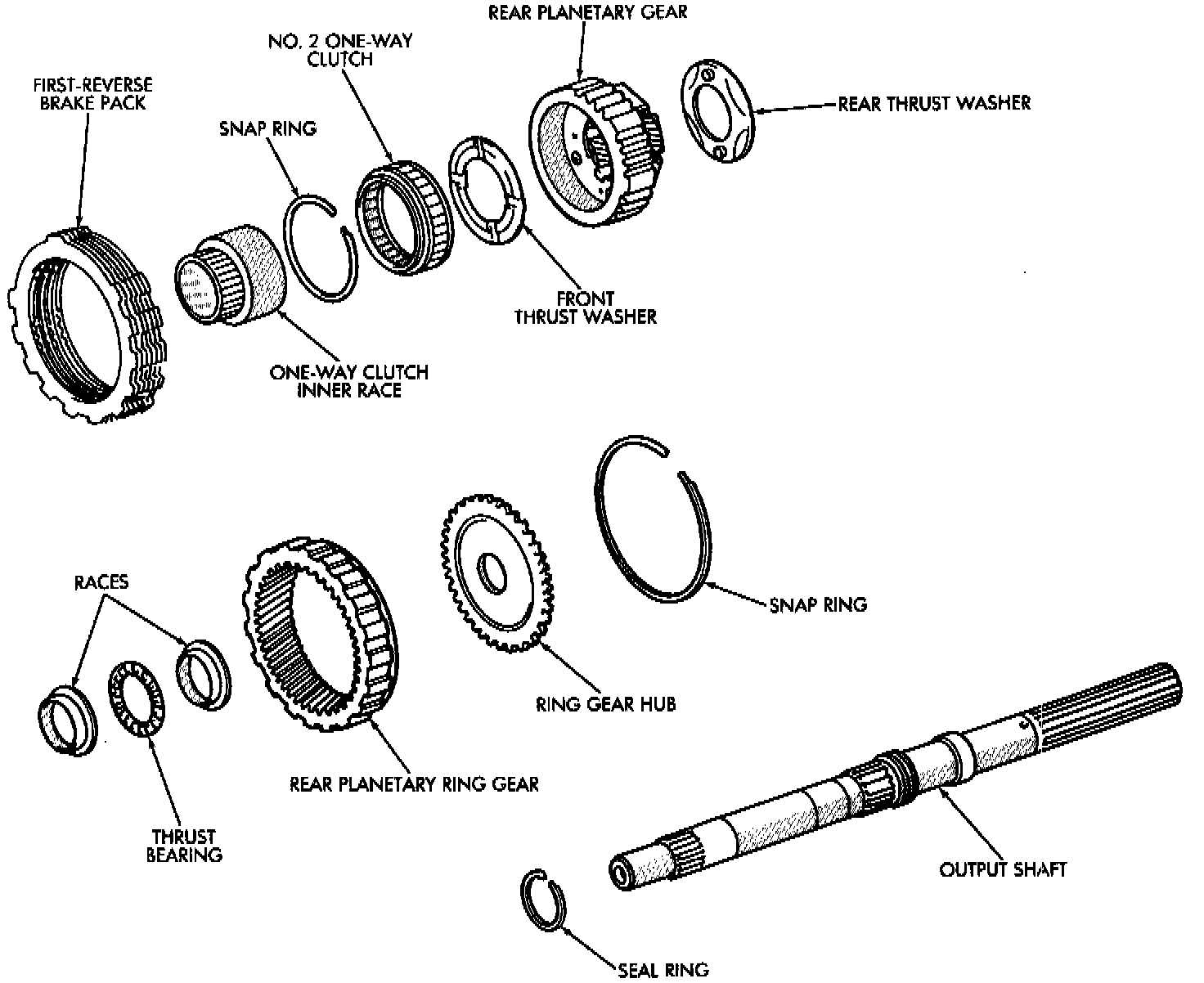

Rear Planetary, Brake Pack, Output Shaft Components AW-4 Automatic Transmission:
