Park/Neutral Switch (Aw-4 Auto. Trans.)

  1. Disconnect park/neutral switch. Ensure continuity exists between terminals "B" and "C" with transmission in Park or Neutral. See Fig 1 .
  2. Ensure continuity exists between terminals "A" and "E" with transmission in Reverse. See Fig 1 . Ensure continuity exists between terminals "A" and "G" with transmission in 3rd gear.
  3. Ensure continuity exists between terminals "A" and "H" with transmission in 1st or 2nd gear. See Fig 1 . If switch continuity tests are okay, check gearshift adjustment or back-up light circuit. If switch fails any continuity test, replace park/neutral switch.

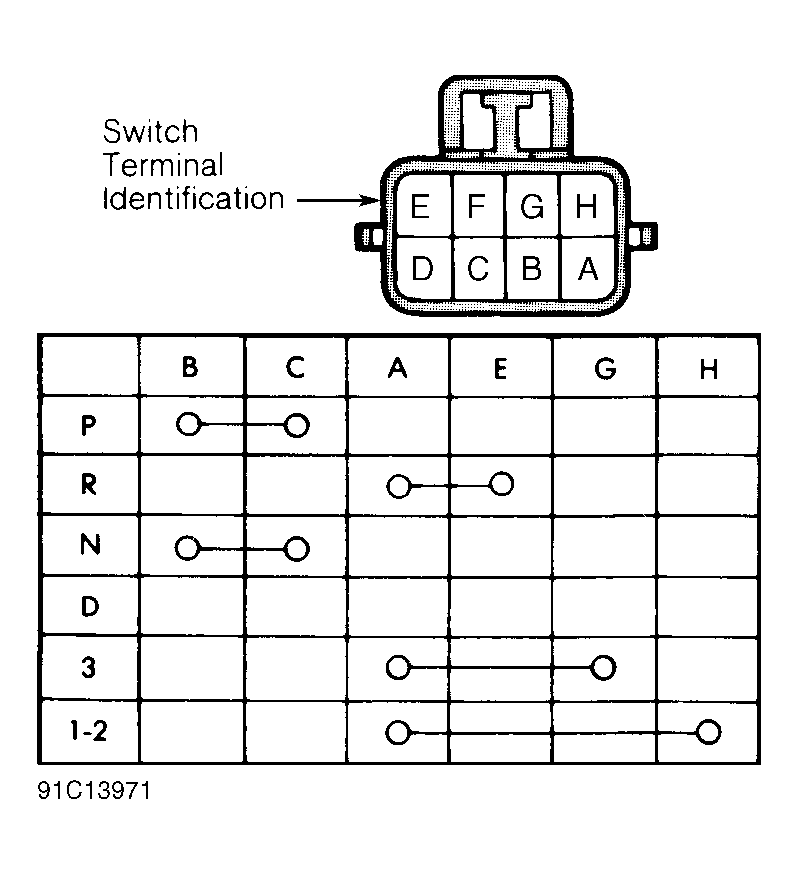

Fig 1: Testing Park/Neutral Switch Continuity (AW-4 Auto. Trans.)
G91C13971Courtesy of CHRYSLER CORP.
NOTE: Also see appropriate park/neutral switch input test procedures in TESTS W/CODES - 2.5L & 4.0L article in this section.
