Grand WAGONEER & Wrangler

  1. Center front wheels straight ahead and lock steering wheel in centered position. Measure toe and compare to specifications. See WHEEL ALIGNMENT SPECIFICATIONS .
  2. Loosen tie rod adjustment sleeve clamp bolts. See Fig 1 or Fig 2 . Rotate sleeve to adjust toe to specification. See WHEEL ALIGNMENT SPECIFICATIONS . After adjustment, position clamp bolts so threaded ends face rearward and are angled upward. Tighten sleeve clamp to specification. See TORQUE SPECIFICATIONS .
  3. If necessary, steering wheel can be centered by adjusting the drag link adjustment sleeve. When adjustment is complete, position sleeve as described earlier and tighten to specifications. See TORQUE SPECIFICATIONS .

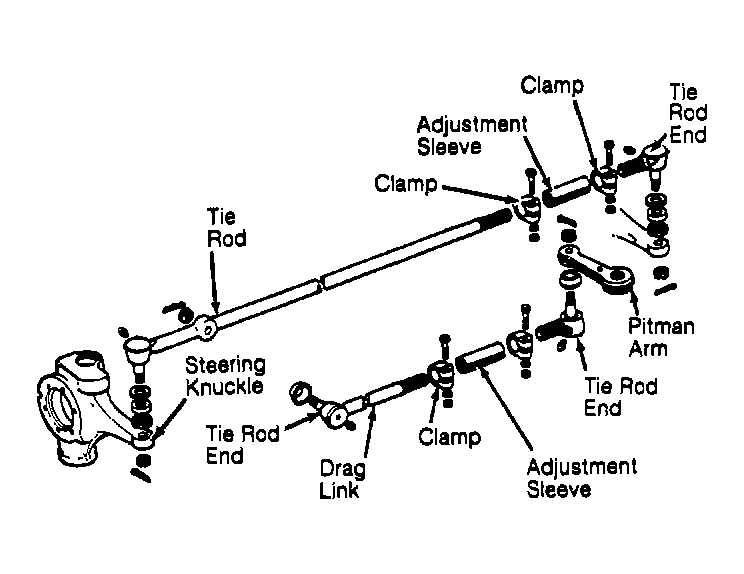

Fig 1: Exploded View of Steering Linkage (Grand Wagoneer)
G90G04497Courtesy of CHRYSLER MOTORS.
Fig 2: Exploded View of Steering Linkage (Wrangler)
G90E17081Courtesy of CHRYSLER MOTORS.
