NS-6A: Repairing No Sync Pick-Up Signal Fault

Fig 1: Test NS-6A Schematic, Repairing No Sync Pick-Up Signal Fault

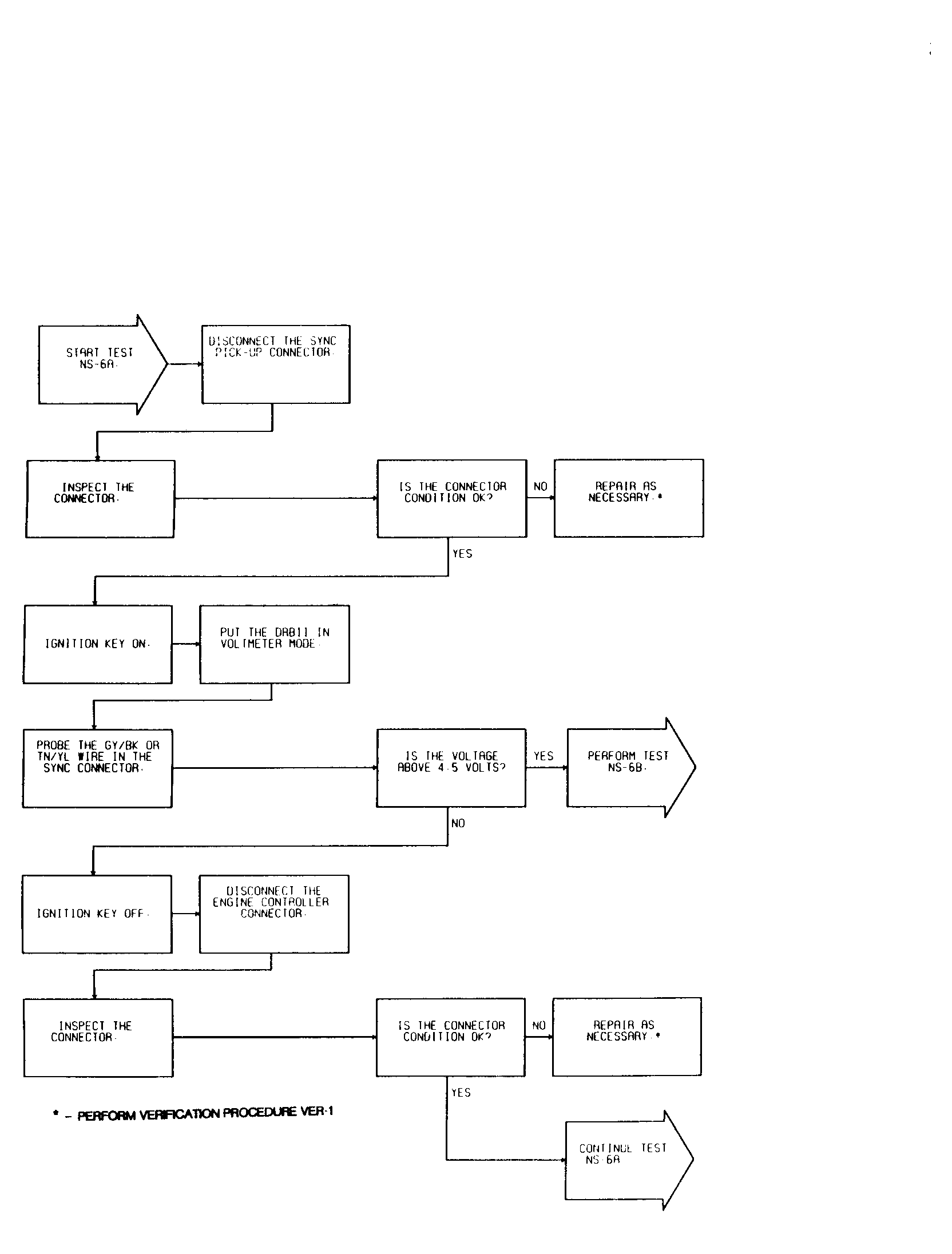

Fig 2: Test NS-6A (1 of 2) Repairing No Sync Pick-Up Signal Fault

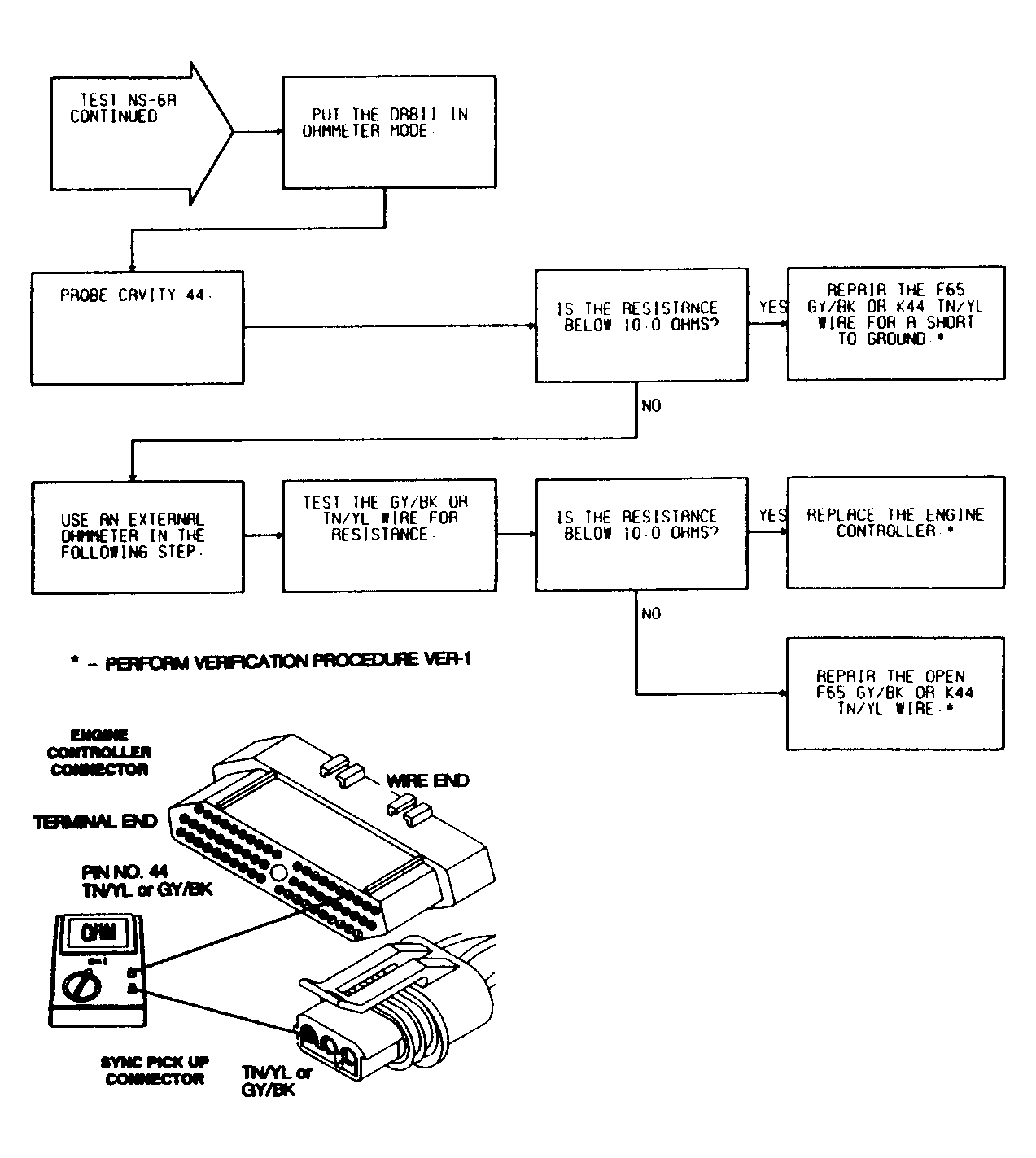

Fig 1: Test NS-6A (2 of 2) No Sync Pick-Up Signal Fault
