NS-12E: Checking Idle Speed Motor Operation

Fig 1: Test NS-12E Schematic, Checking Idle Speed Motor Operation
G91H13943

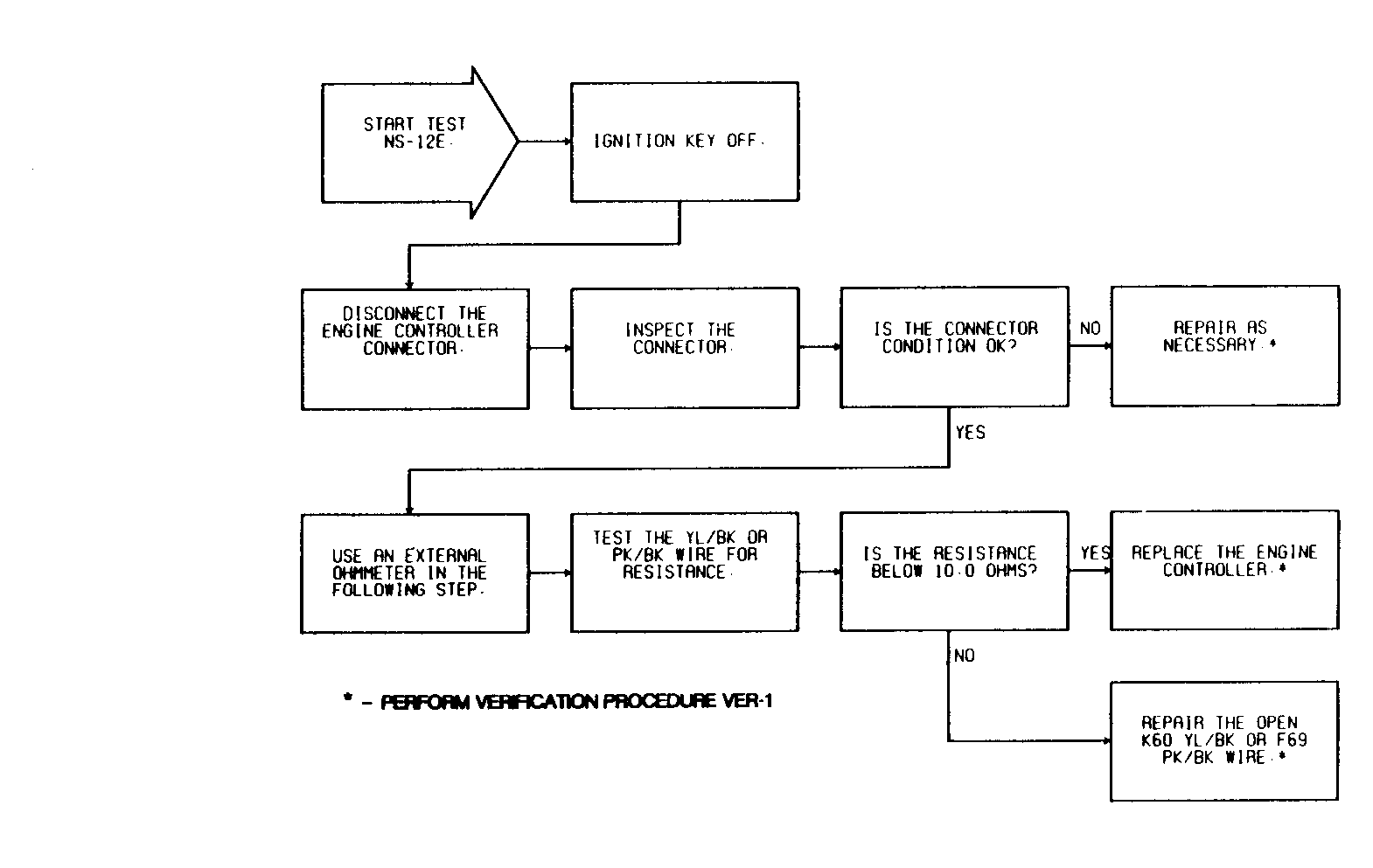

Fig 2: Test NS-12E Checking Idle Speed Motor Operation
G91B13855
