NS-12B: Checking Idle Speed Motor Operation

Fig 1: Test NS-12B Schematic, Checking Idle Speed Motor Operation
G91H13943

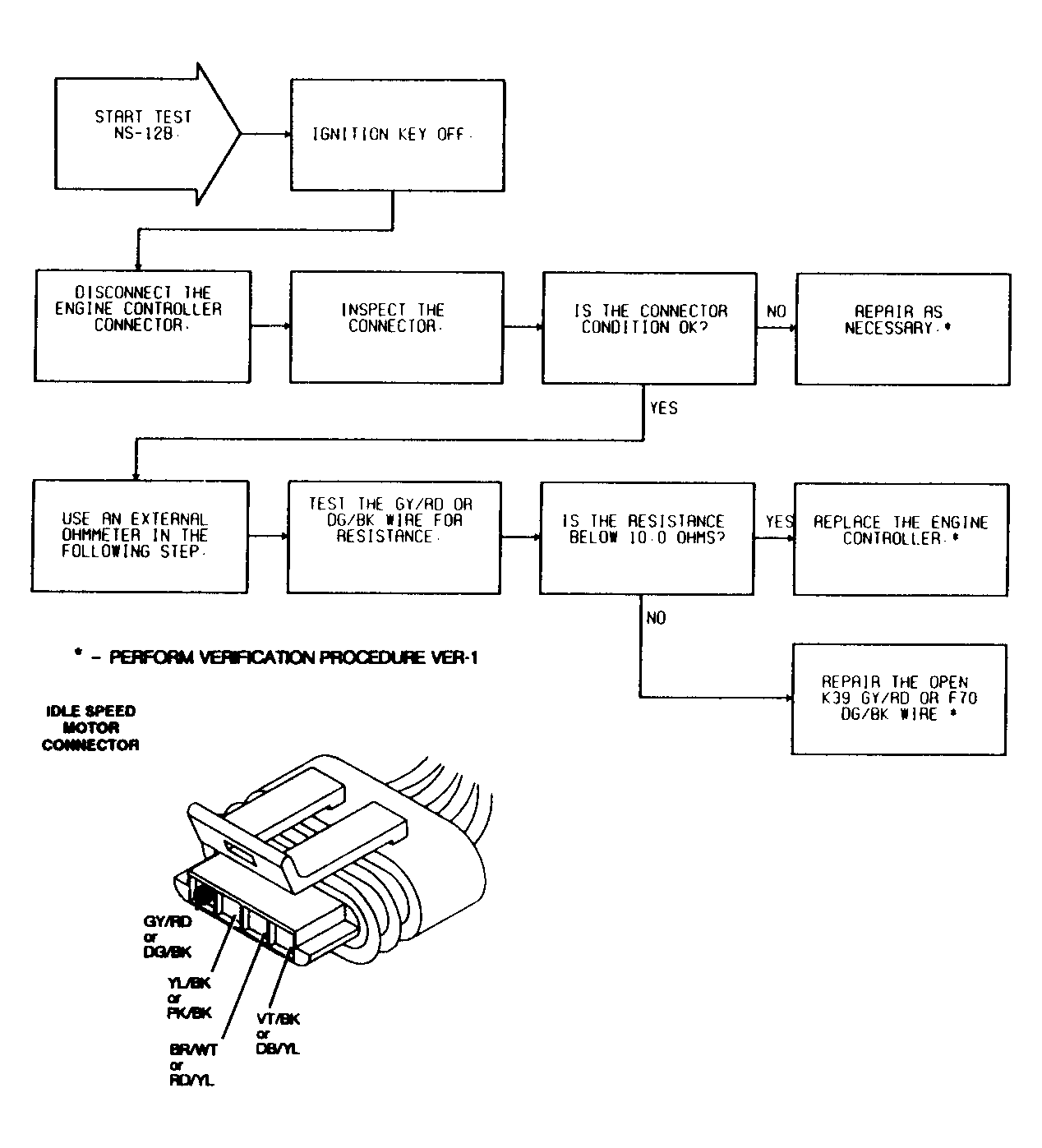

Fig 2: Test NS-12B Checking Idle Speed Motor Operation
G91I13852
