July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Code 815 - Right Rear Wheel Speed Sensor Fault

Fig 1: ABS Module Connector

Fig 2: Speed Sensor Connector (Sensor Side)

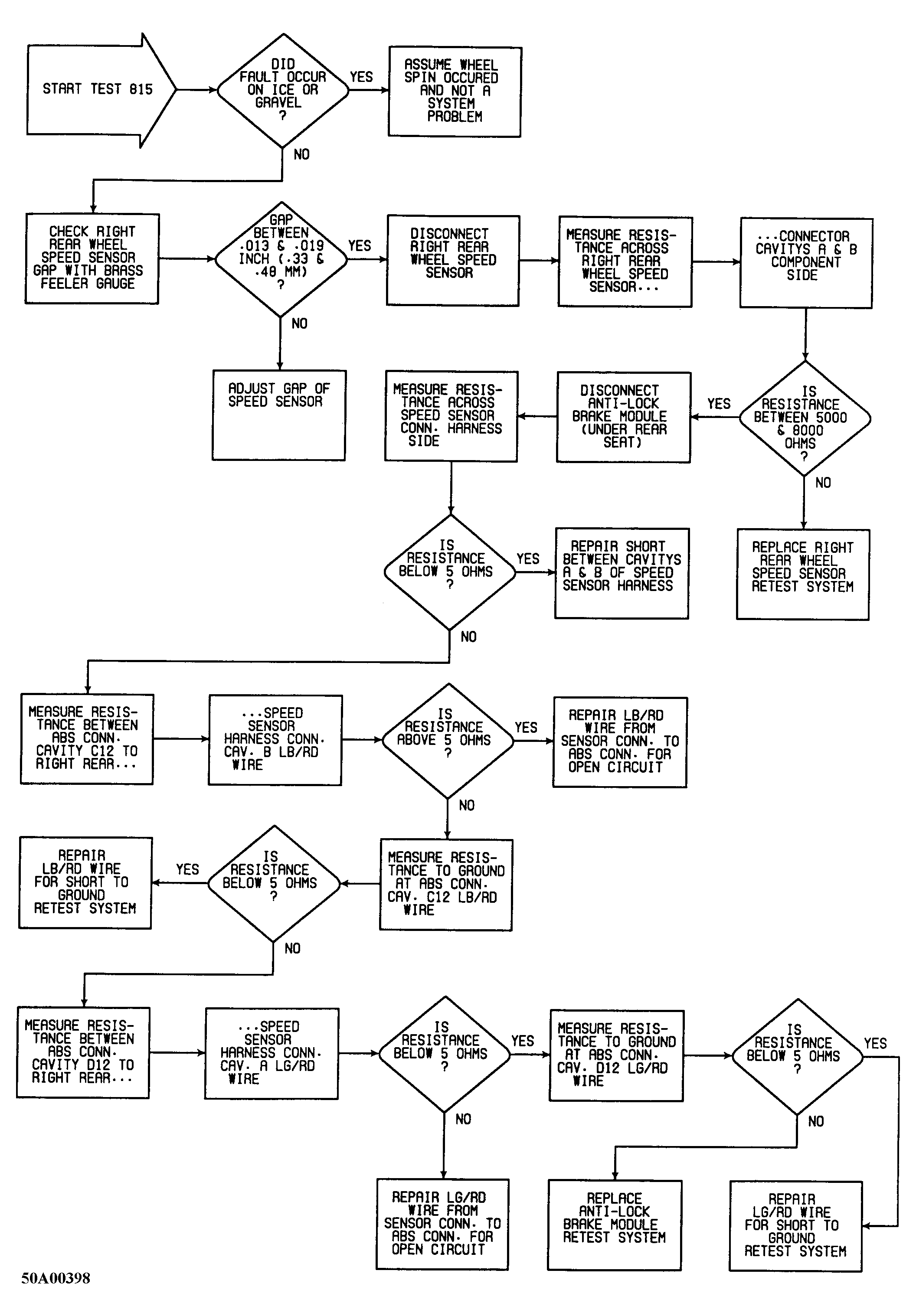

Fig 3: Fault 815: Right Rear Wheel Speed Sensor Fault

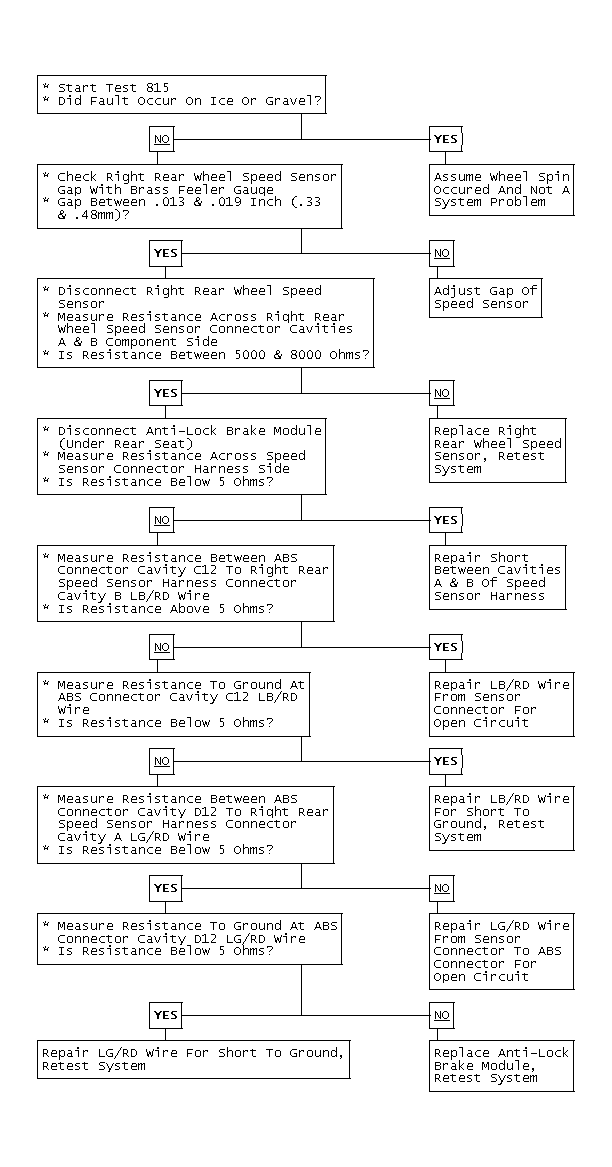

Fig 4: Fault 815: Right Rear Wheel Speed Sensor Fault
