Code 807 - Low Accumulator Pressure

Fig 1: ABS Module Connector

G93A45559

Fig 2: Low Accumulator Switch (Harness Side)

G93I45565

Fig 3: Pump/Relay Harness Connector

G93J45566

Fig 4: Pump Connector (Component Side)

G93A45567

Fig 5: Motor/Pump Relay Connector

G93B45568

Fig 6: Pump Connector (Harness Side)

G93C45569

Fig 7: Pump/Relay Connector (Pump Side)

G93F45570

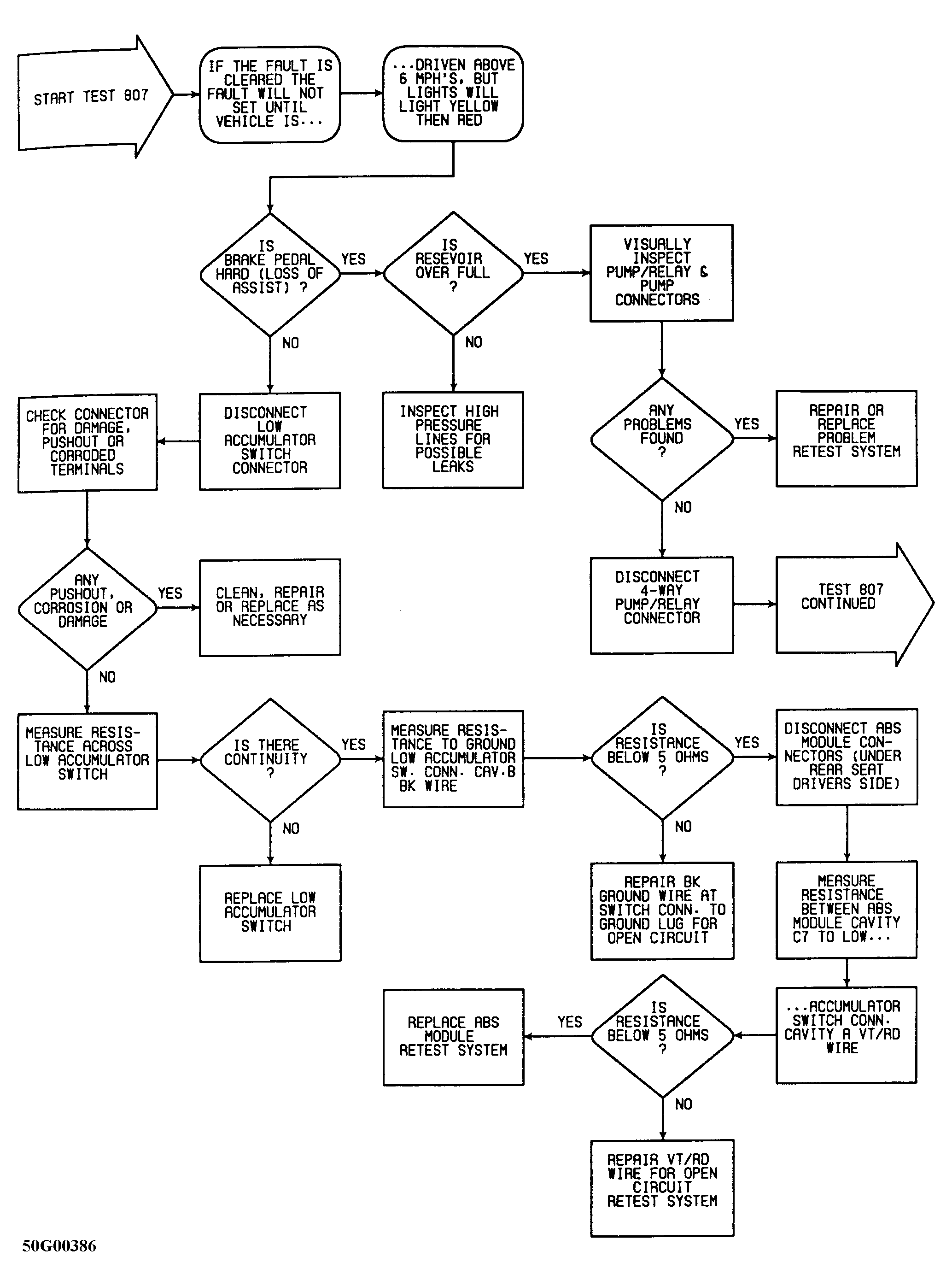

Fig 8: Fault 807: Low Accumulator (1 of 3)

G50G00386

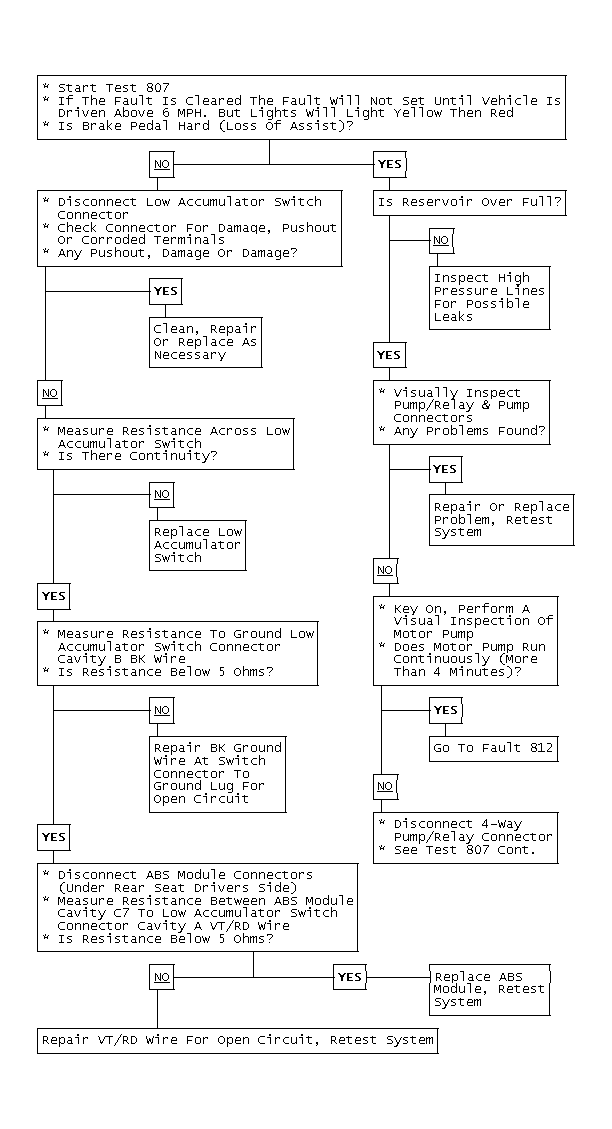

Fig 9: Fault 807: Low Accumulator

GB0010714

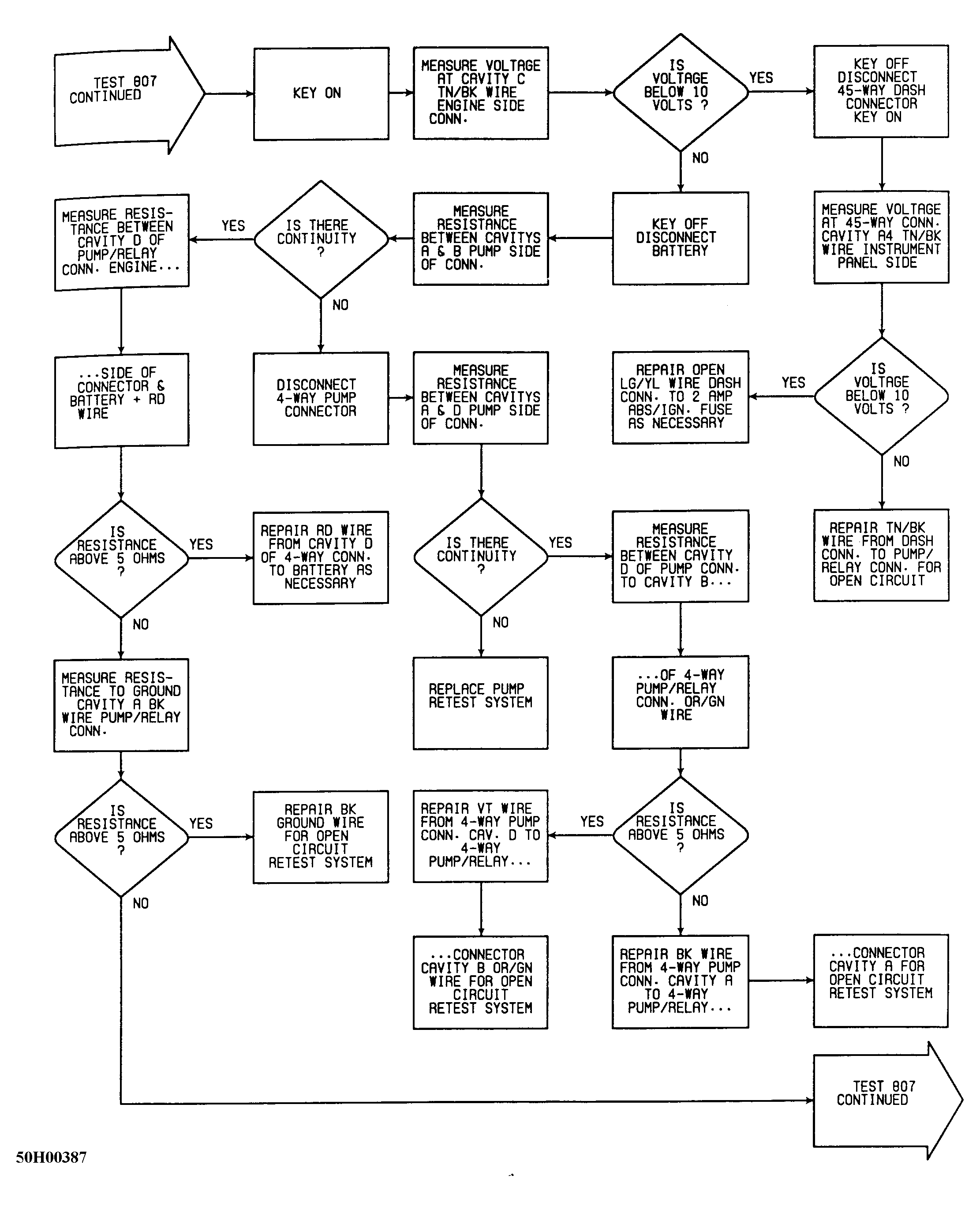

Fig 10: Fault 807: Low Accumulator (2 of 3)

G50H00387

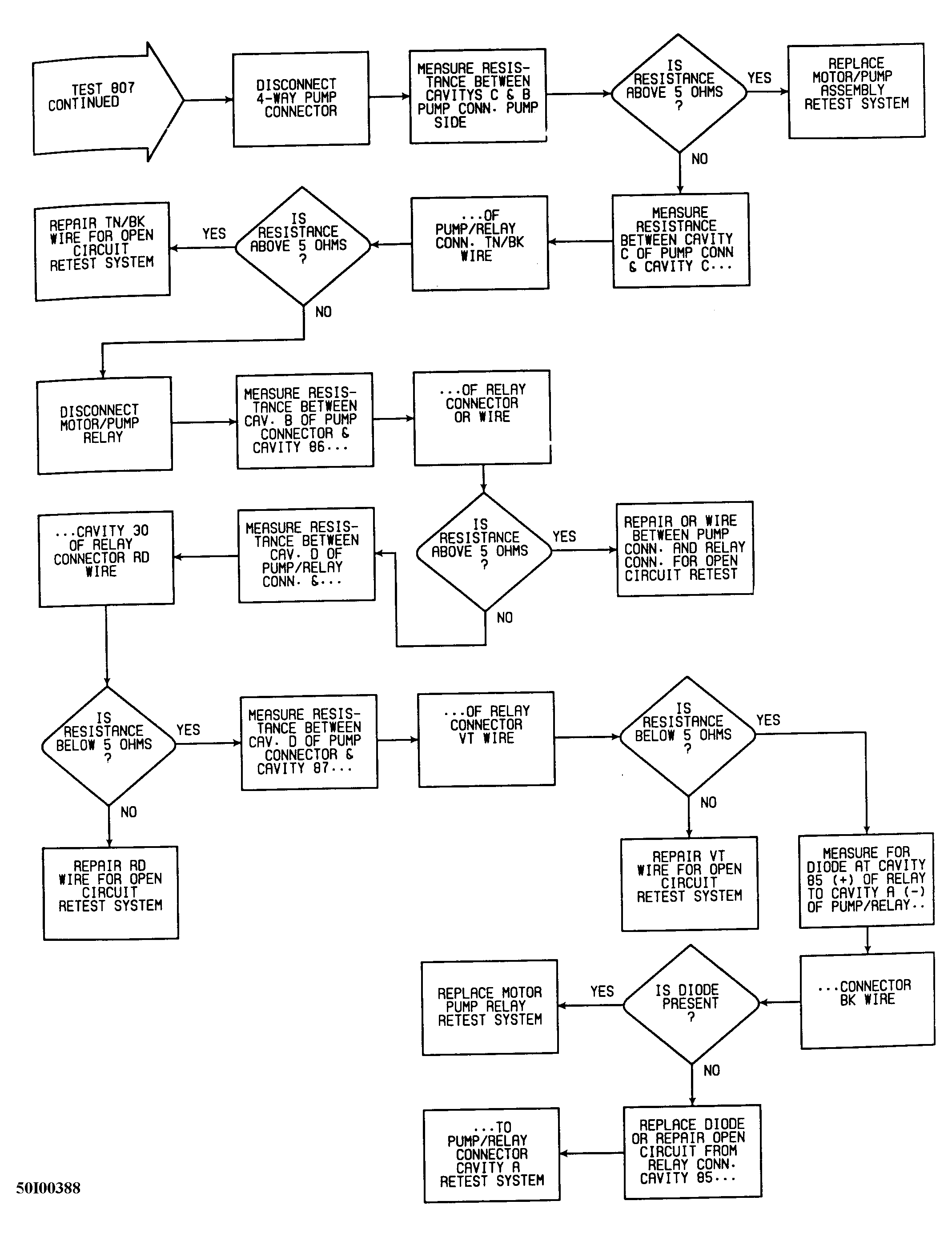

Fig 11: Fault 807: Low Accumulator (3 of 3)

G50I00388

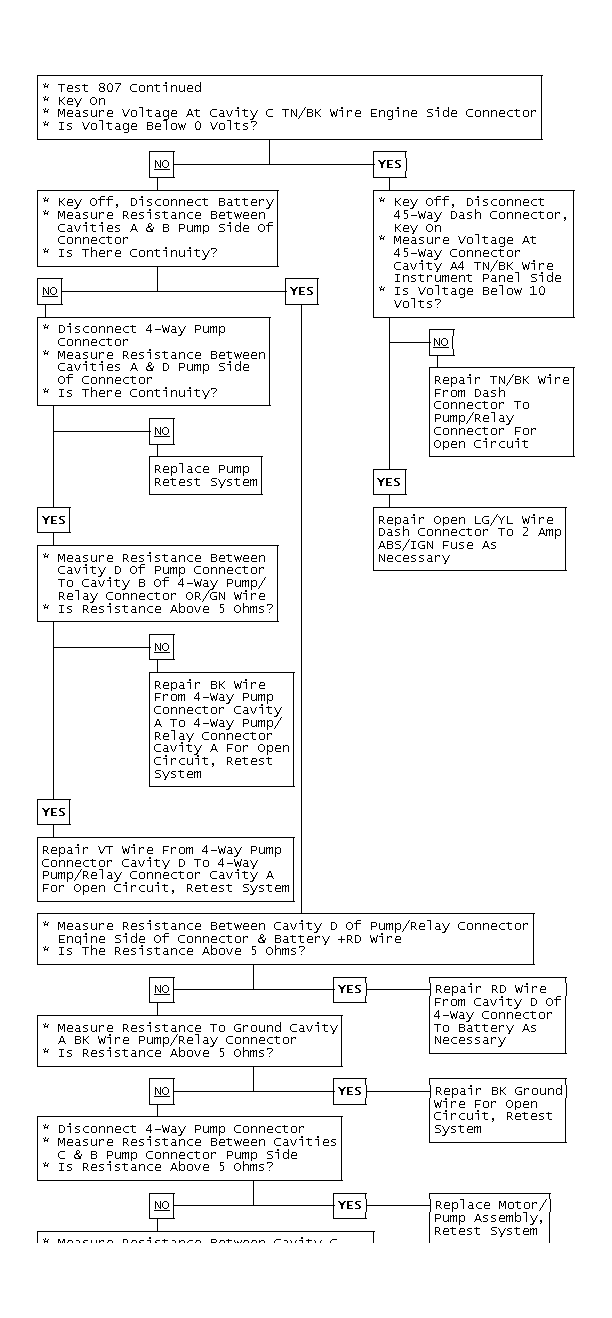

Fig 12: Fault 807: Low Accumulator

GB0010715
