Service Indicator & Warning Lights: Notes

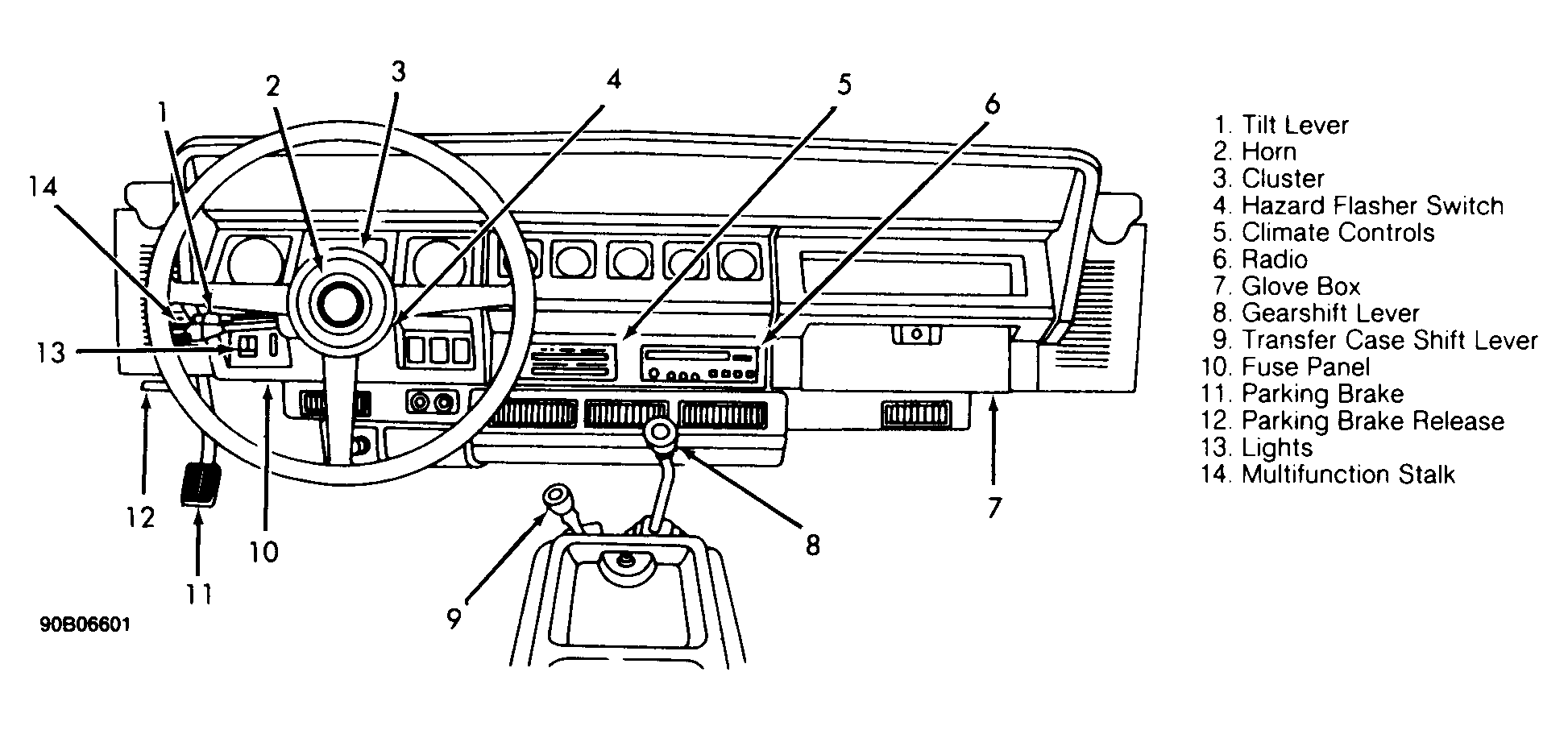

Fig 1: Instrument Panel & Interior Controls
G90B06601Courtesy of CHRYSLER MOTORS.

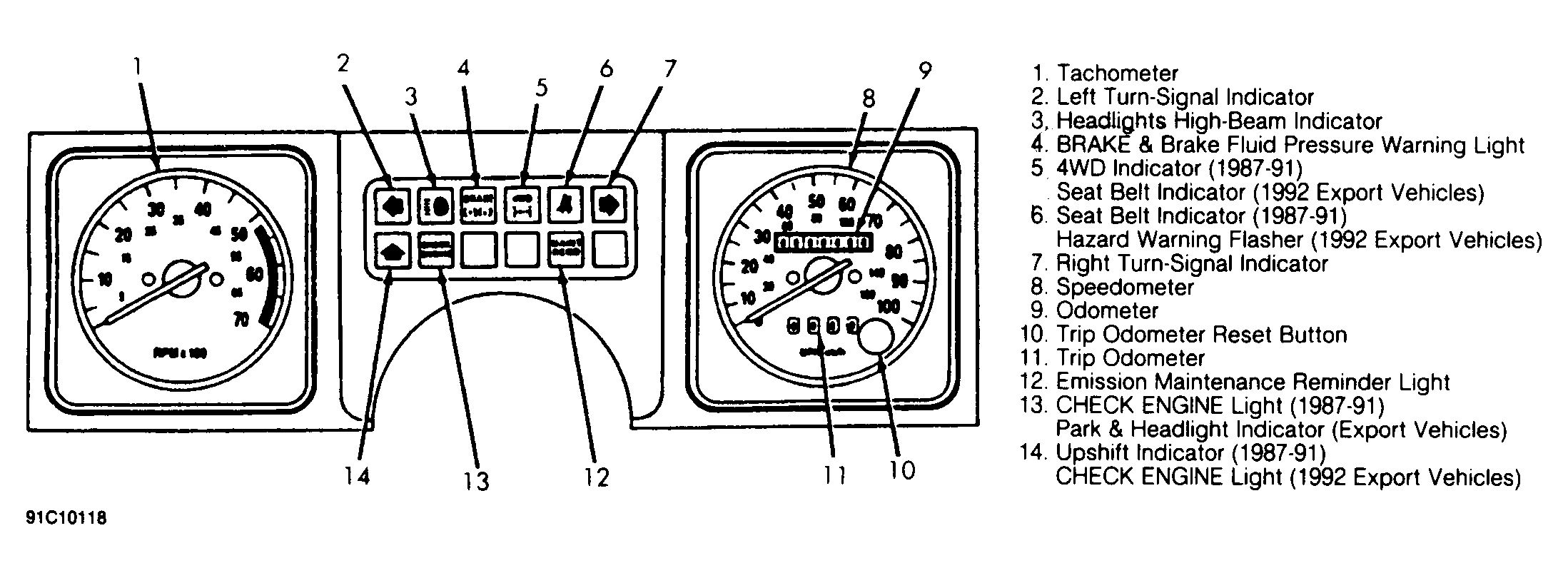

Fig 2: Dash Gauges & Warning Lights
G91C10118Courtesy of CHRYSLER MOTORS.
