Torque Specifications



Front

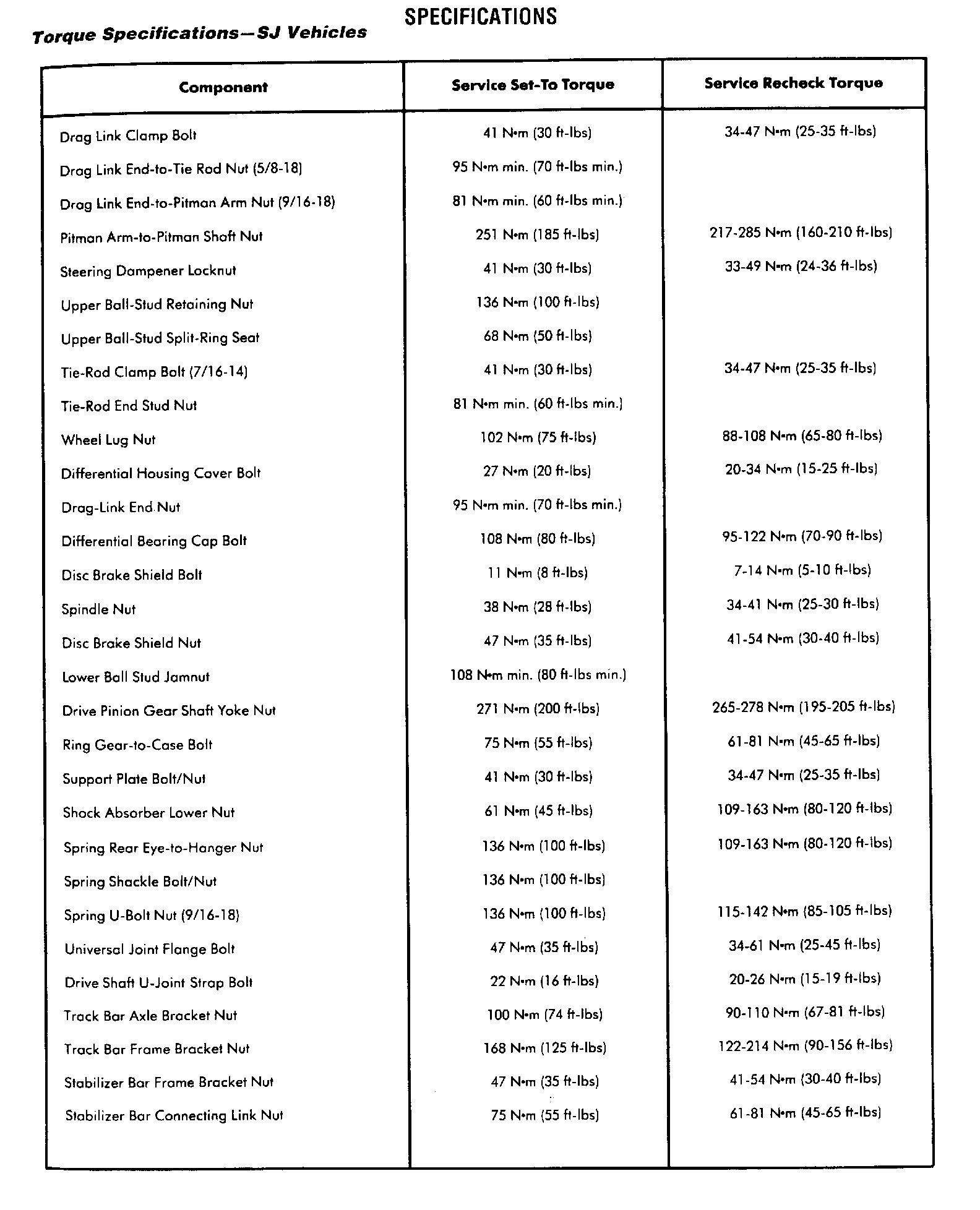

Torque Specifications, SJ Vehicles:

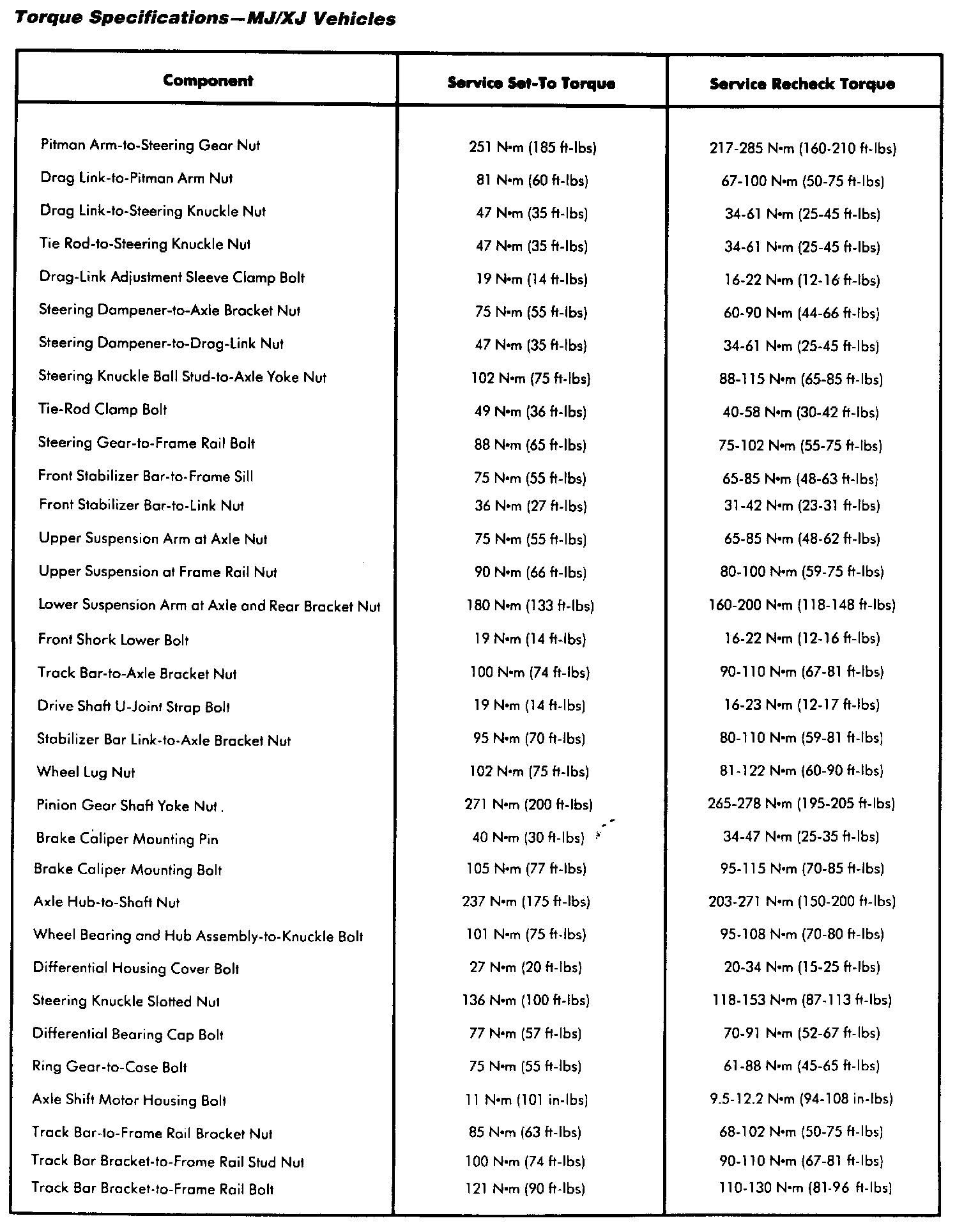

Torque Specifications-MJ/XJ Vehicles:

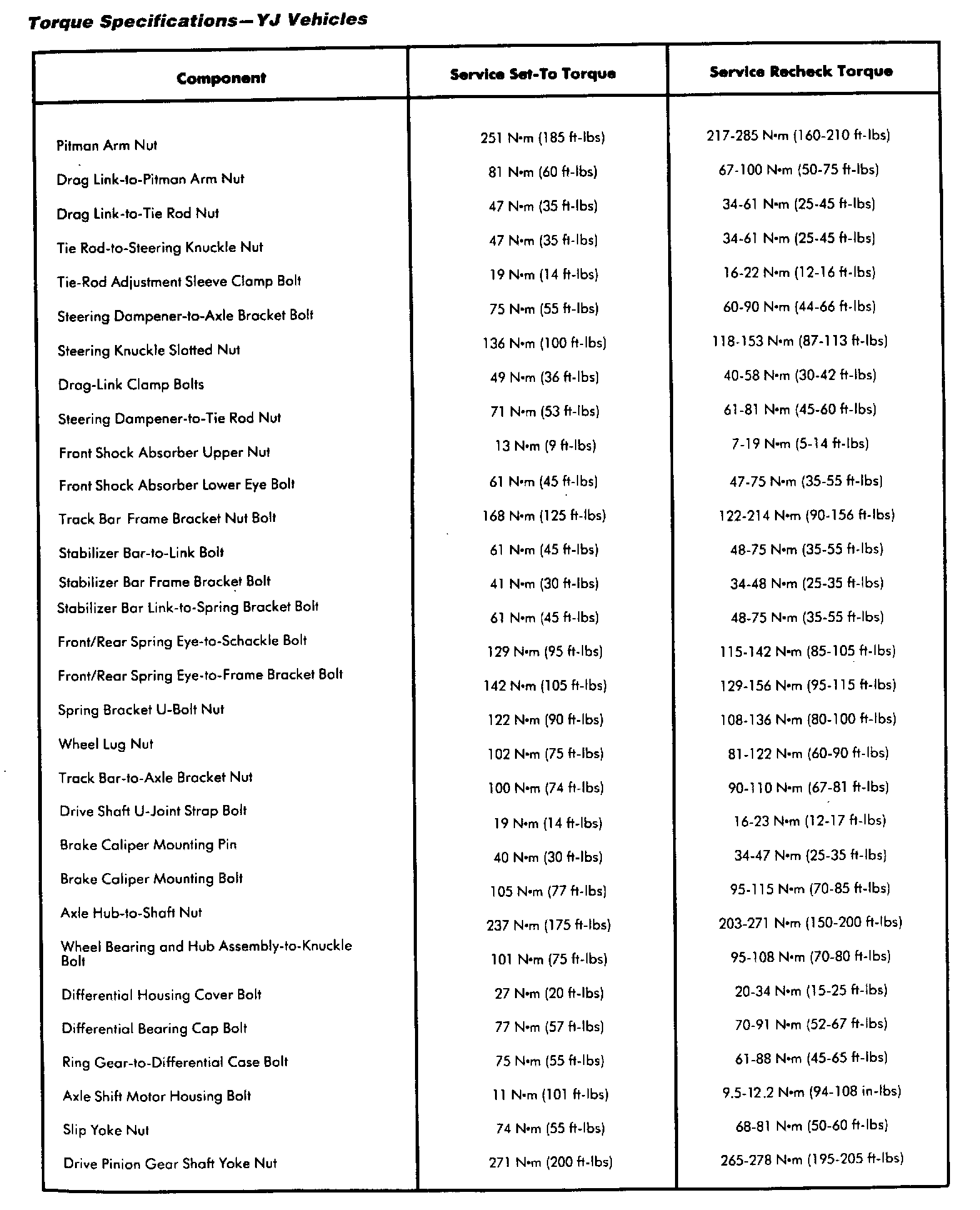

Torque Specifications - YJ Vehicles:





Rear

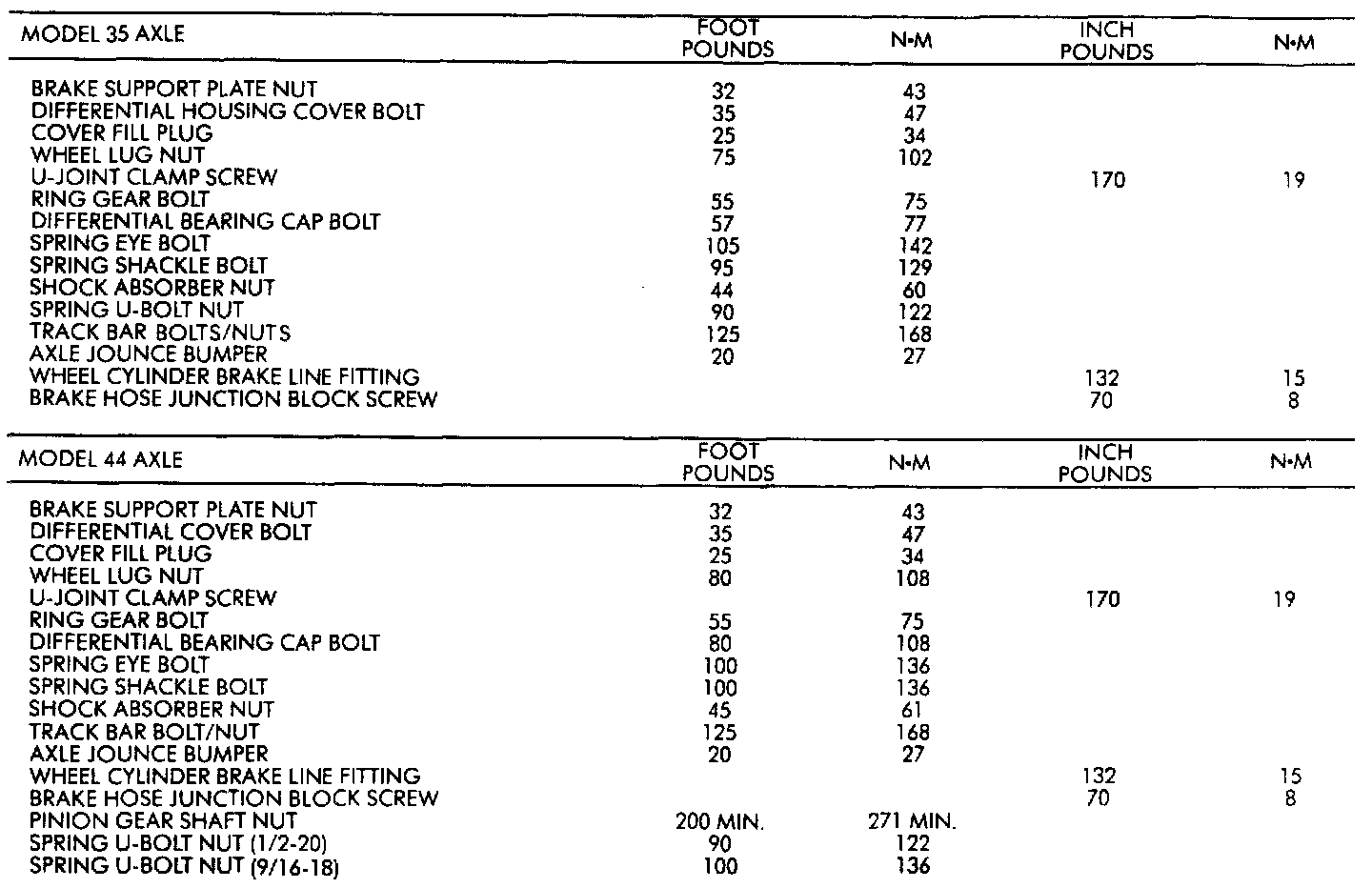

Torque Specifications, Axle Models 35 & 44:
