Clearance and Design Specifications
Models 904 / 999

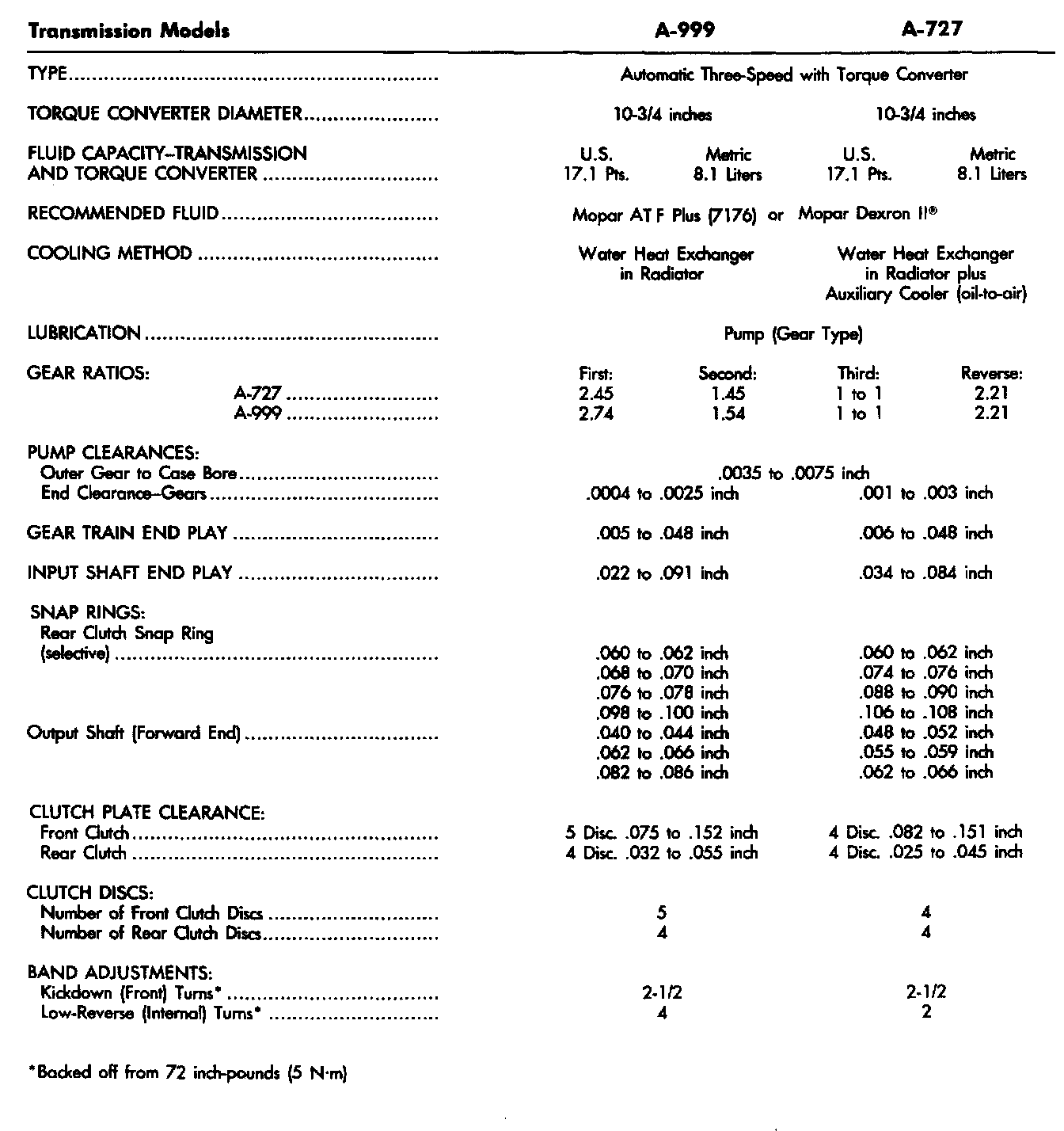

General Specifications:

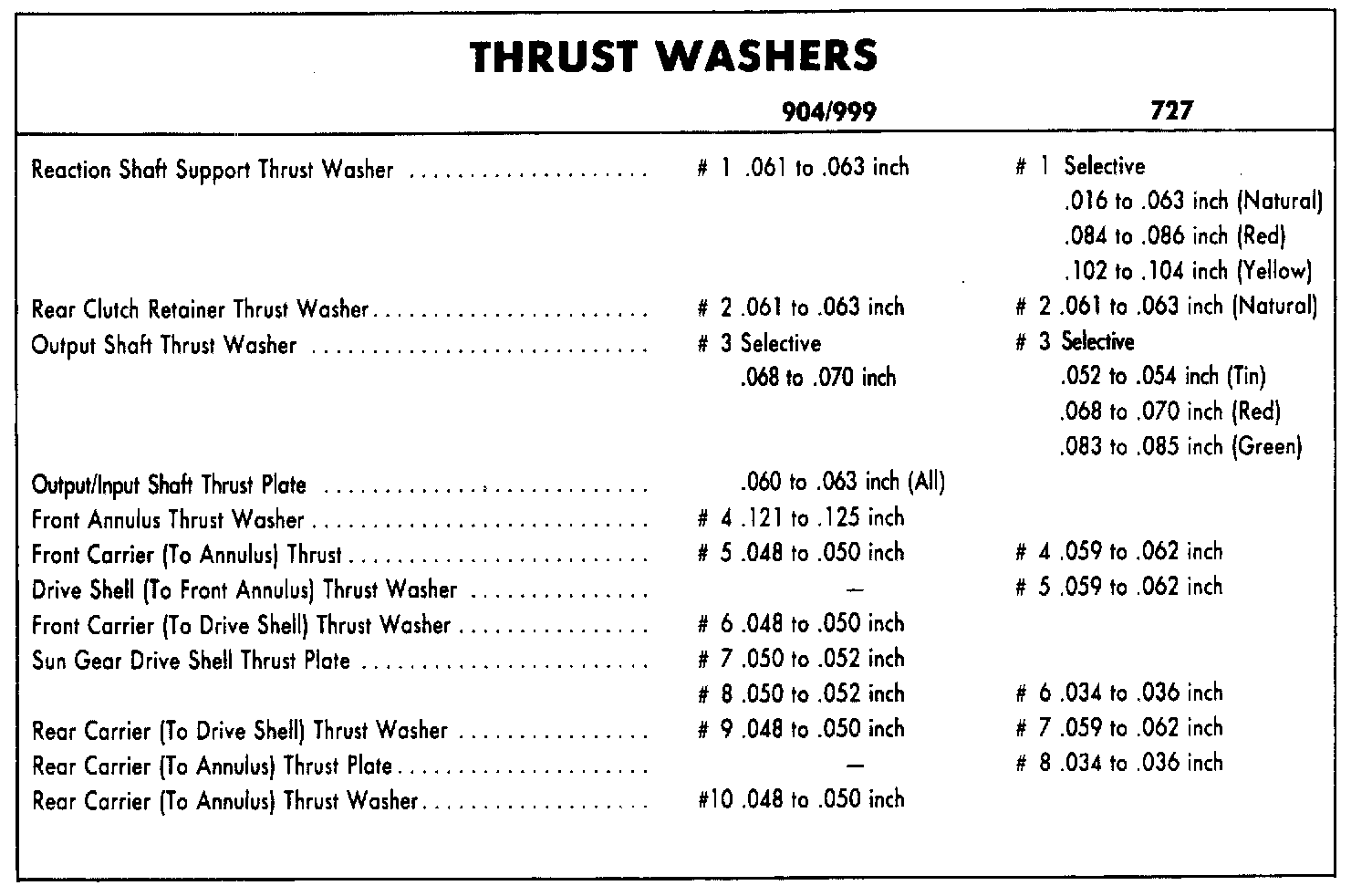

Thrust Washer Specifications Chart:
Pressure Test Specifications:
AW-4

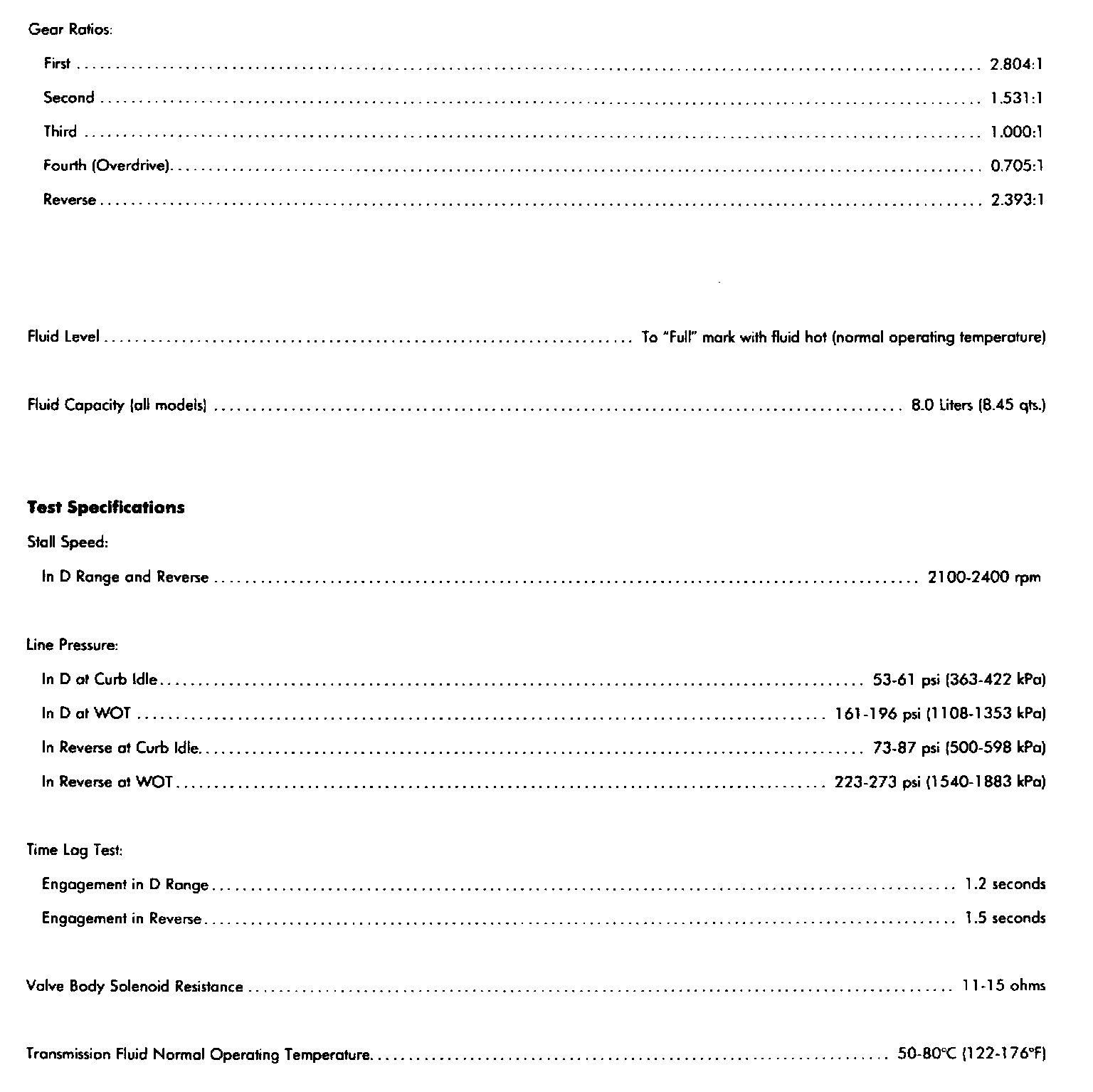

General Specifications:
Oil Pump Wear Limits:
Clutch Disc And Plate Thickness Specifications:

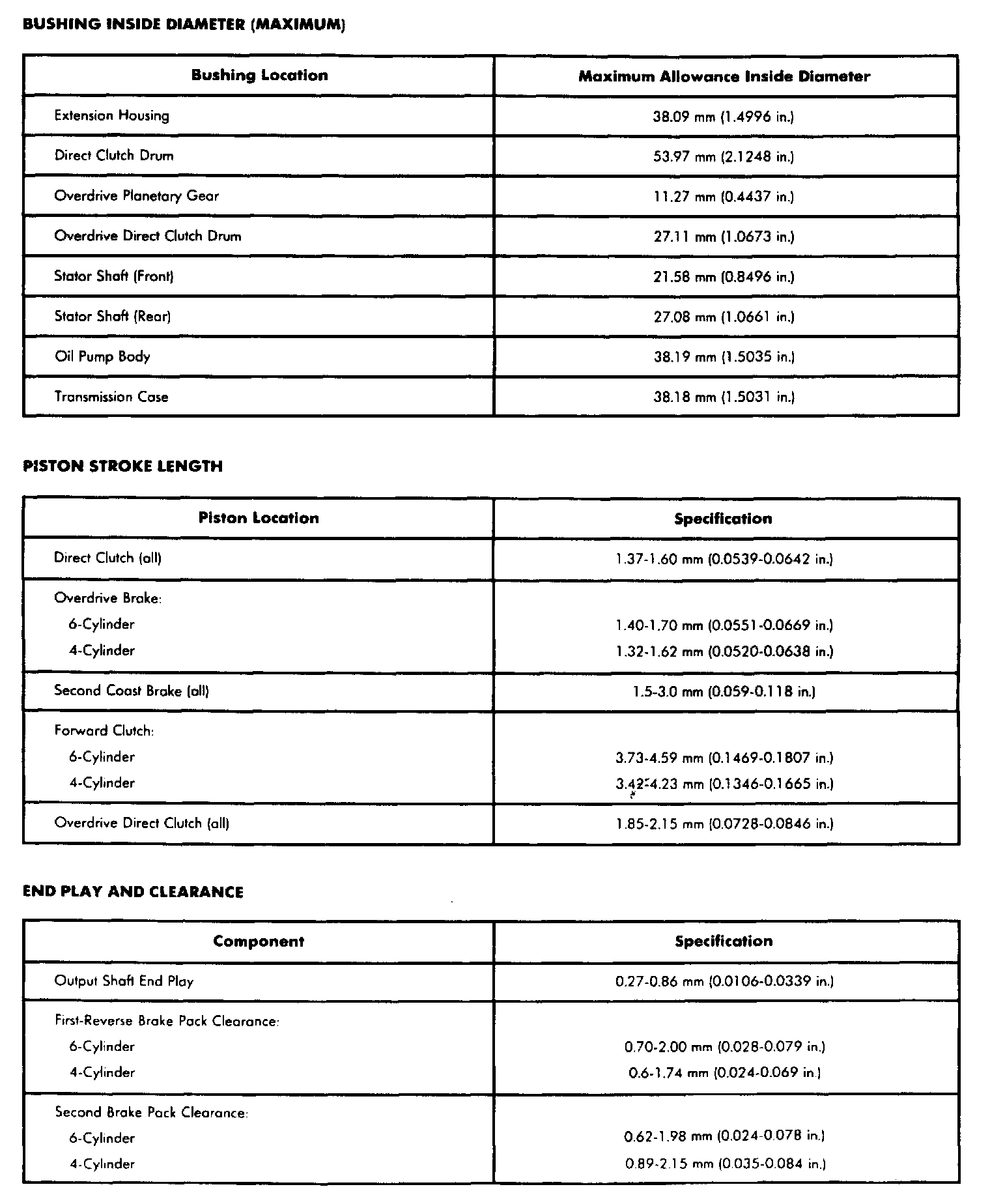

Bushing And Piston Clearance Specifications:

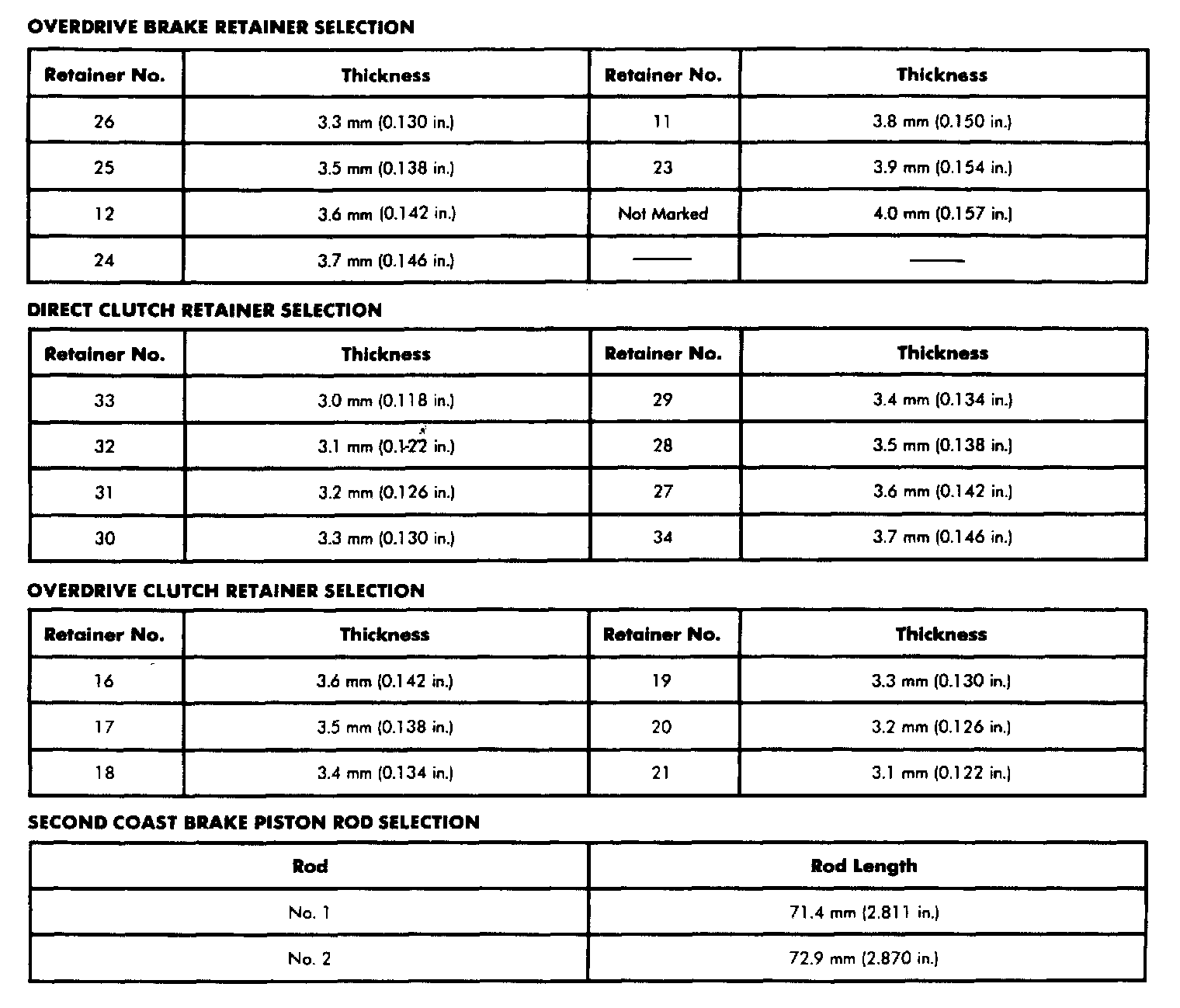

Retainer And Piston Specifications:

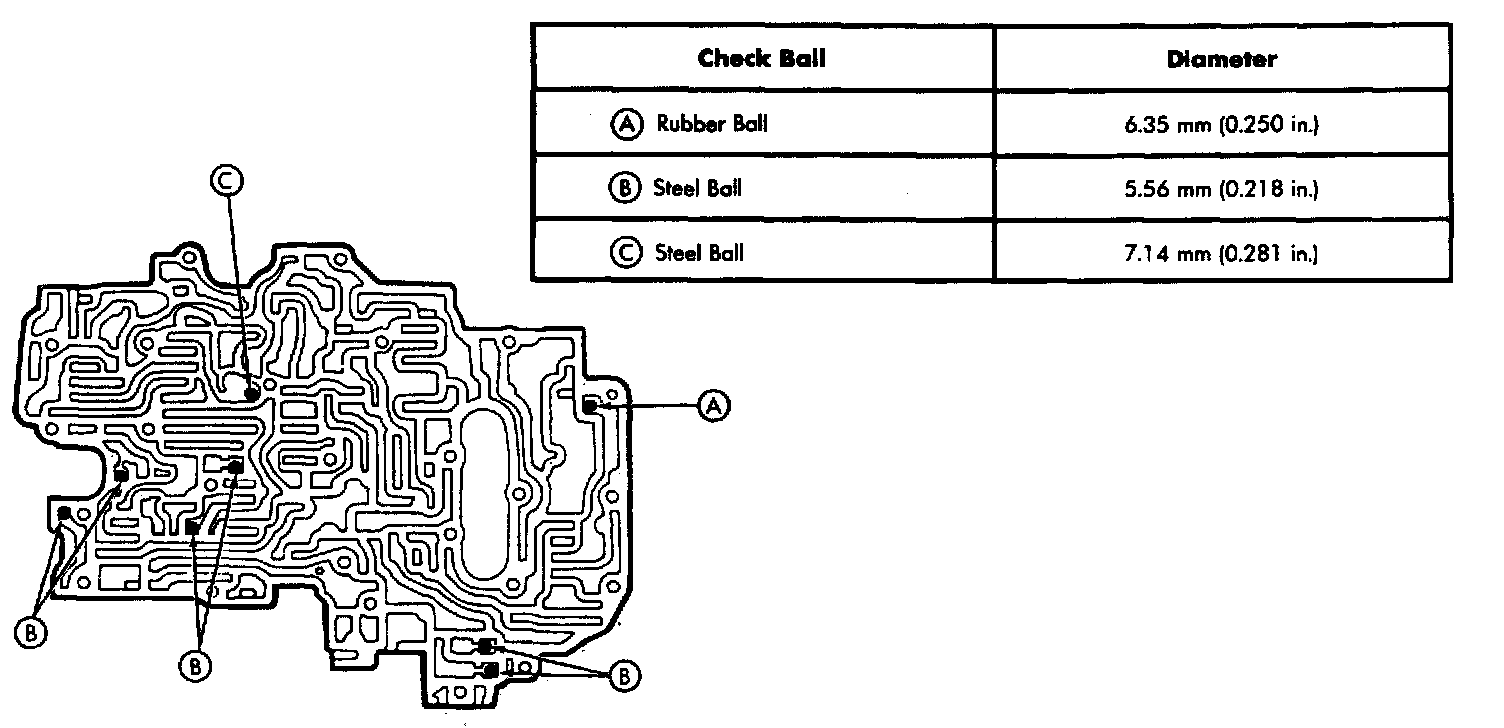

Valve Body Check Ball Dimensions:
Clutch/Brake Pack Requirements:

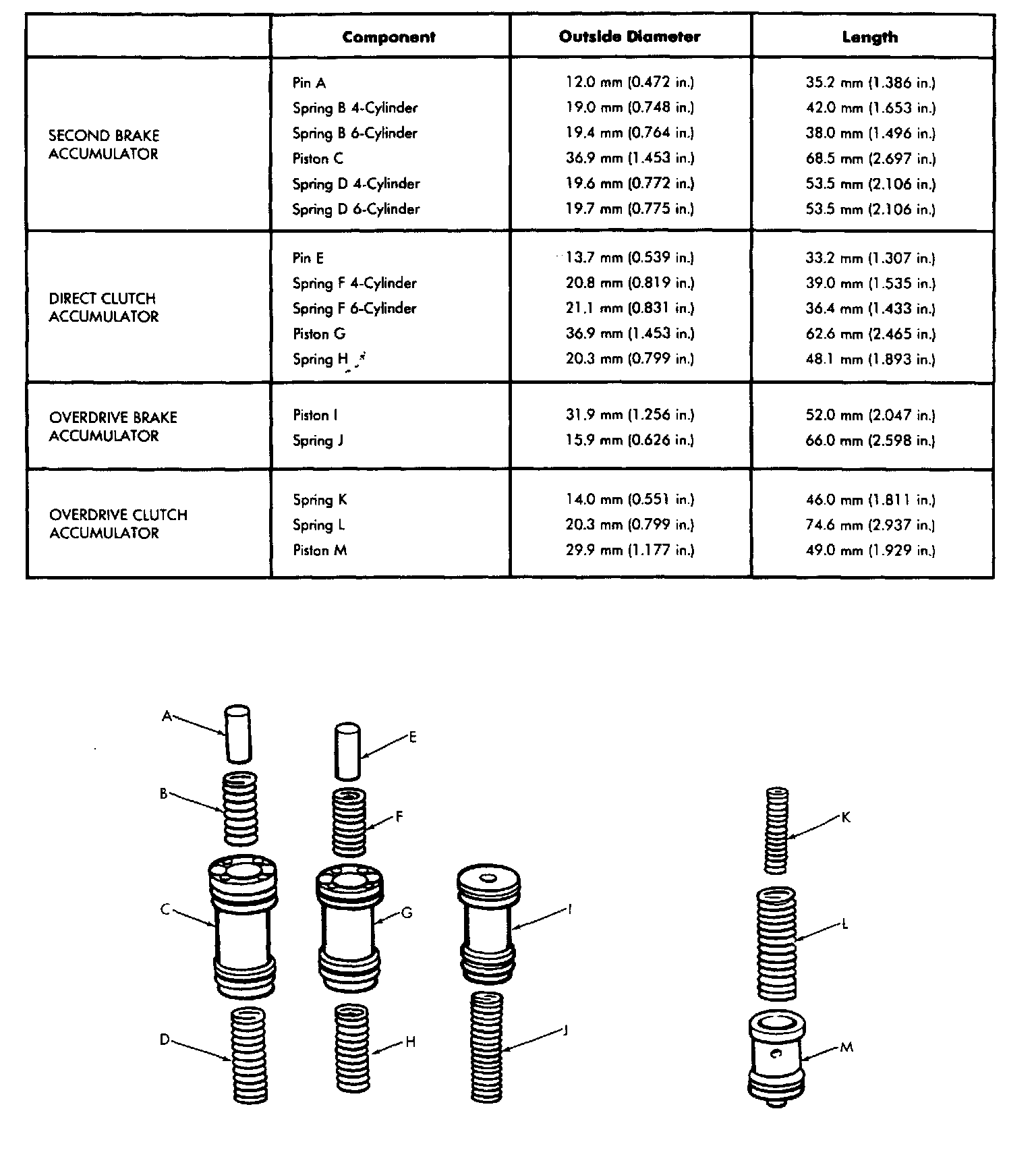

Accumulator Component Dimensions:

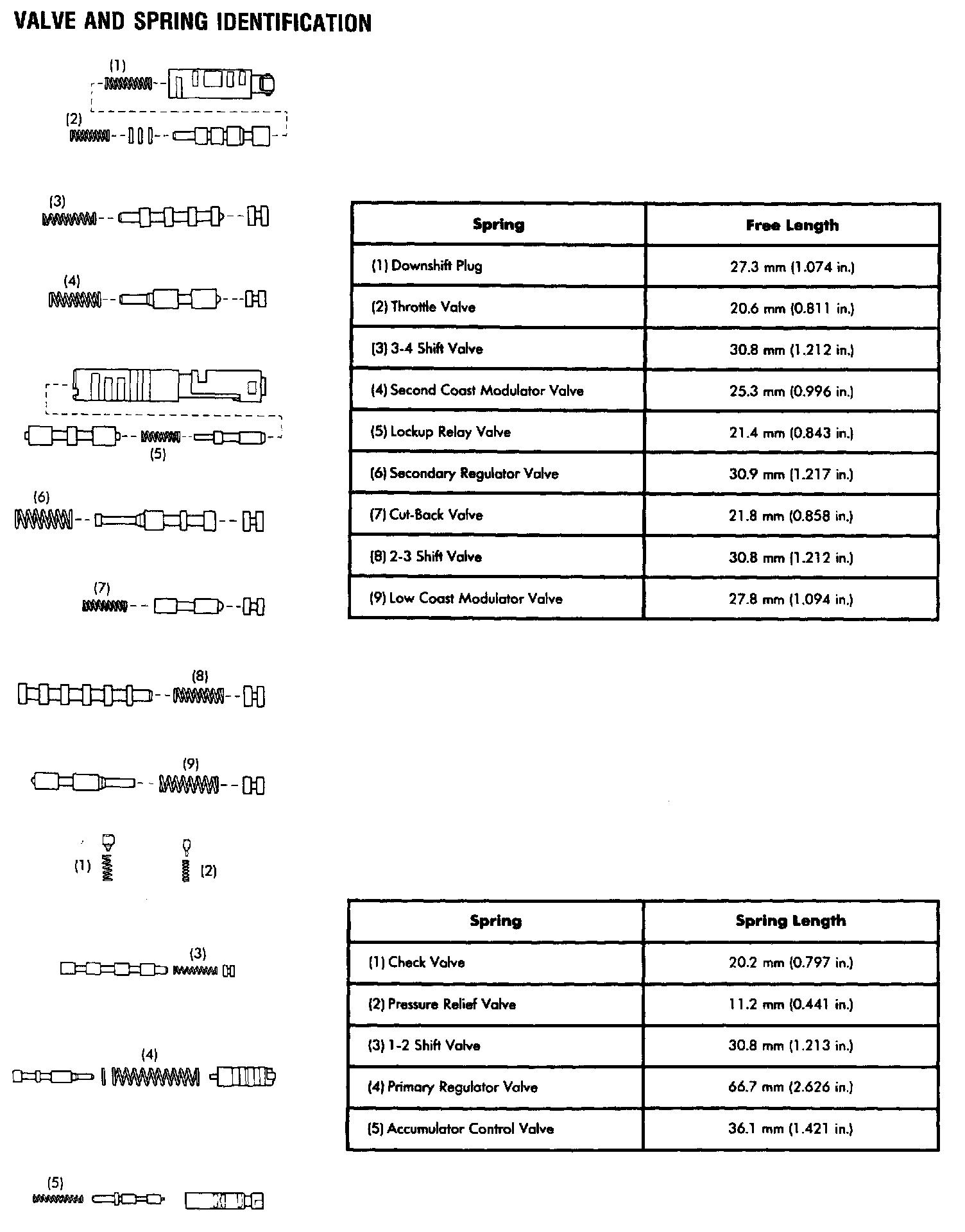

Valve And Spring Identification:
