Transmission Control Systems: Locations

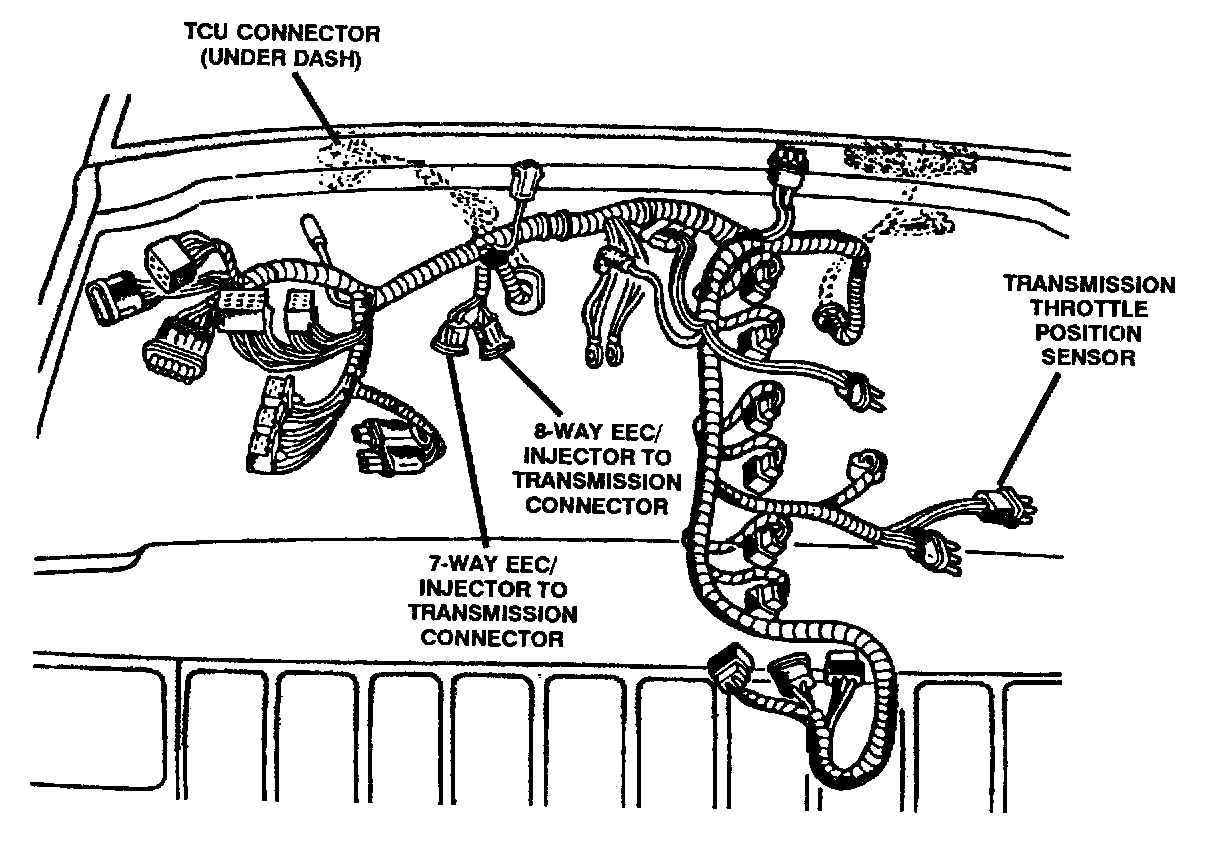

Underhood wiring

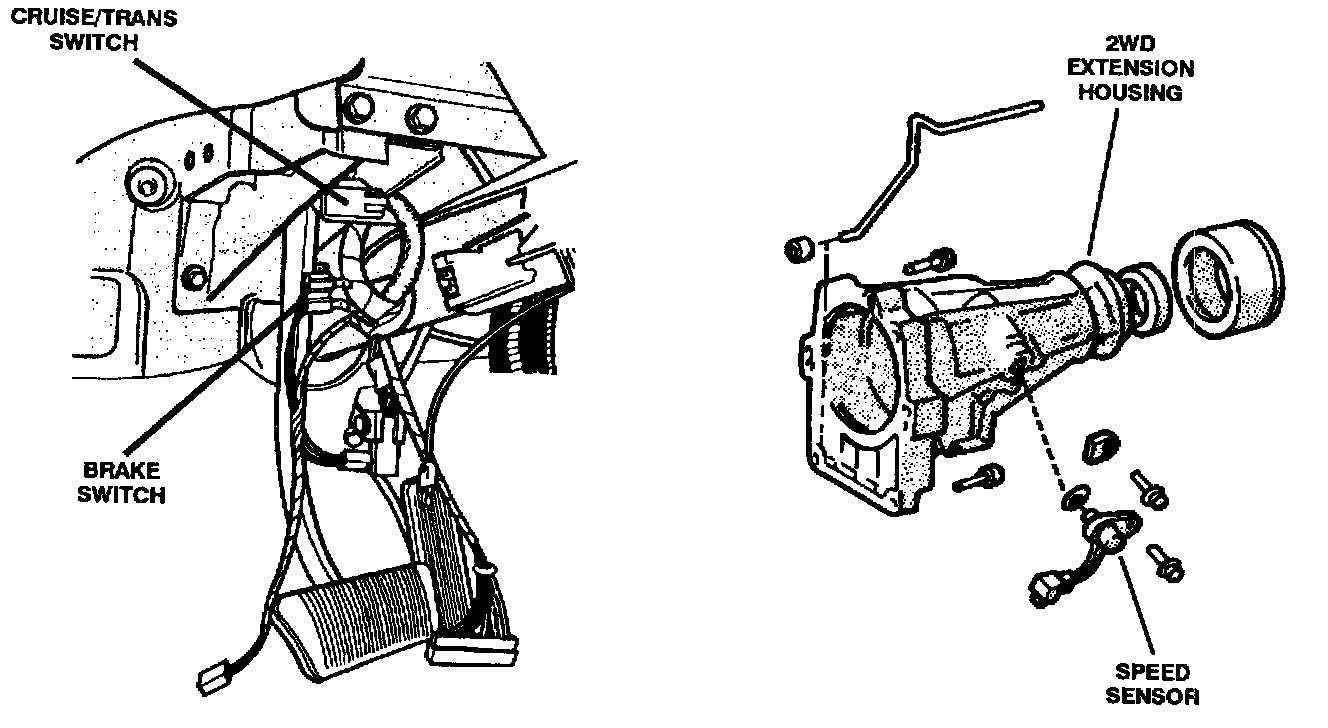

Brake switch & speed sensor

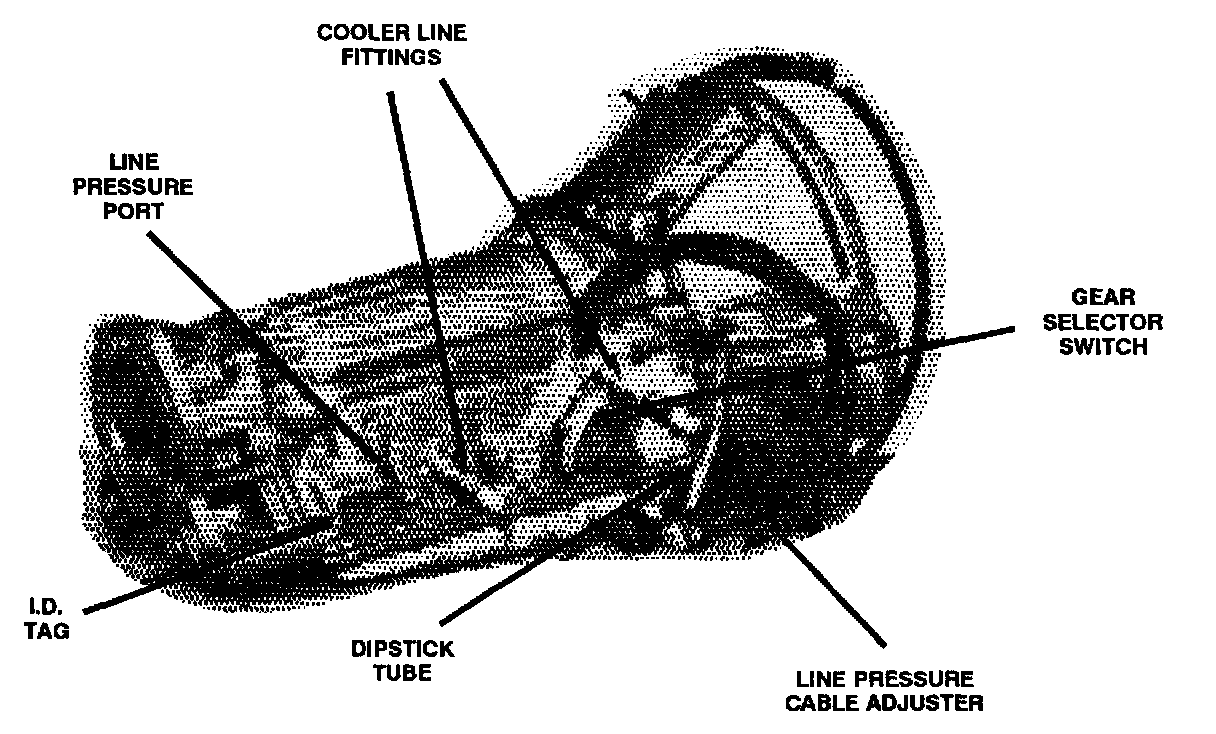

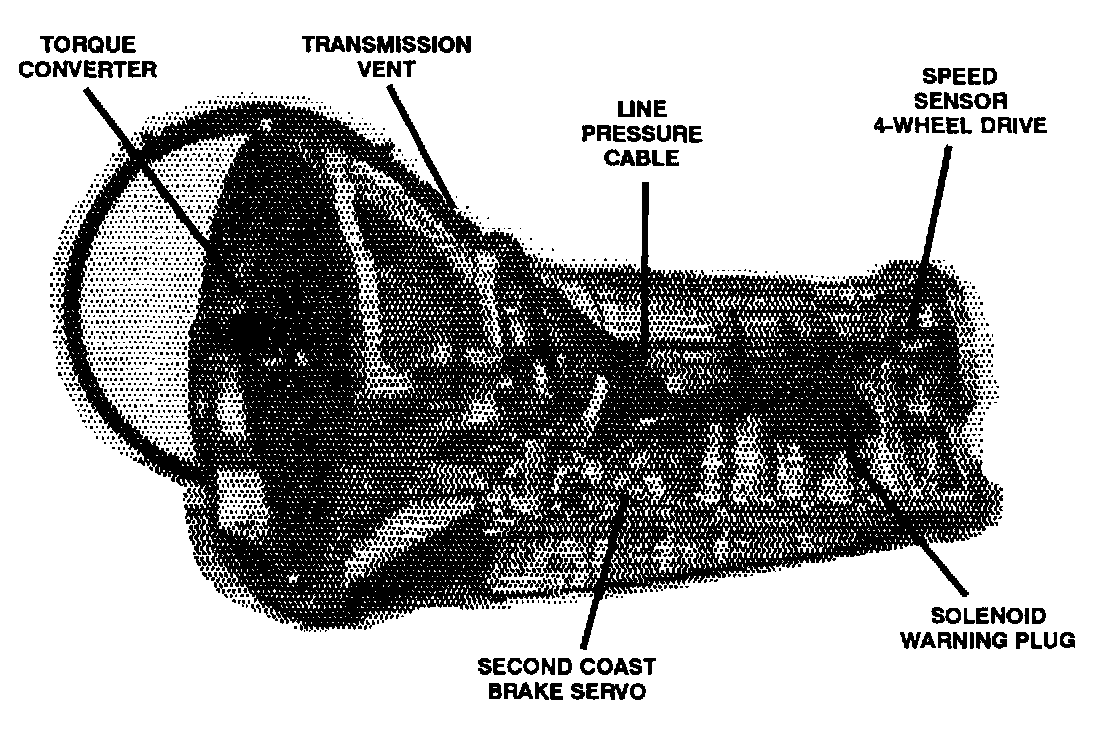

Transmission external components
