Computers and Control Systems: Locations

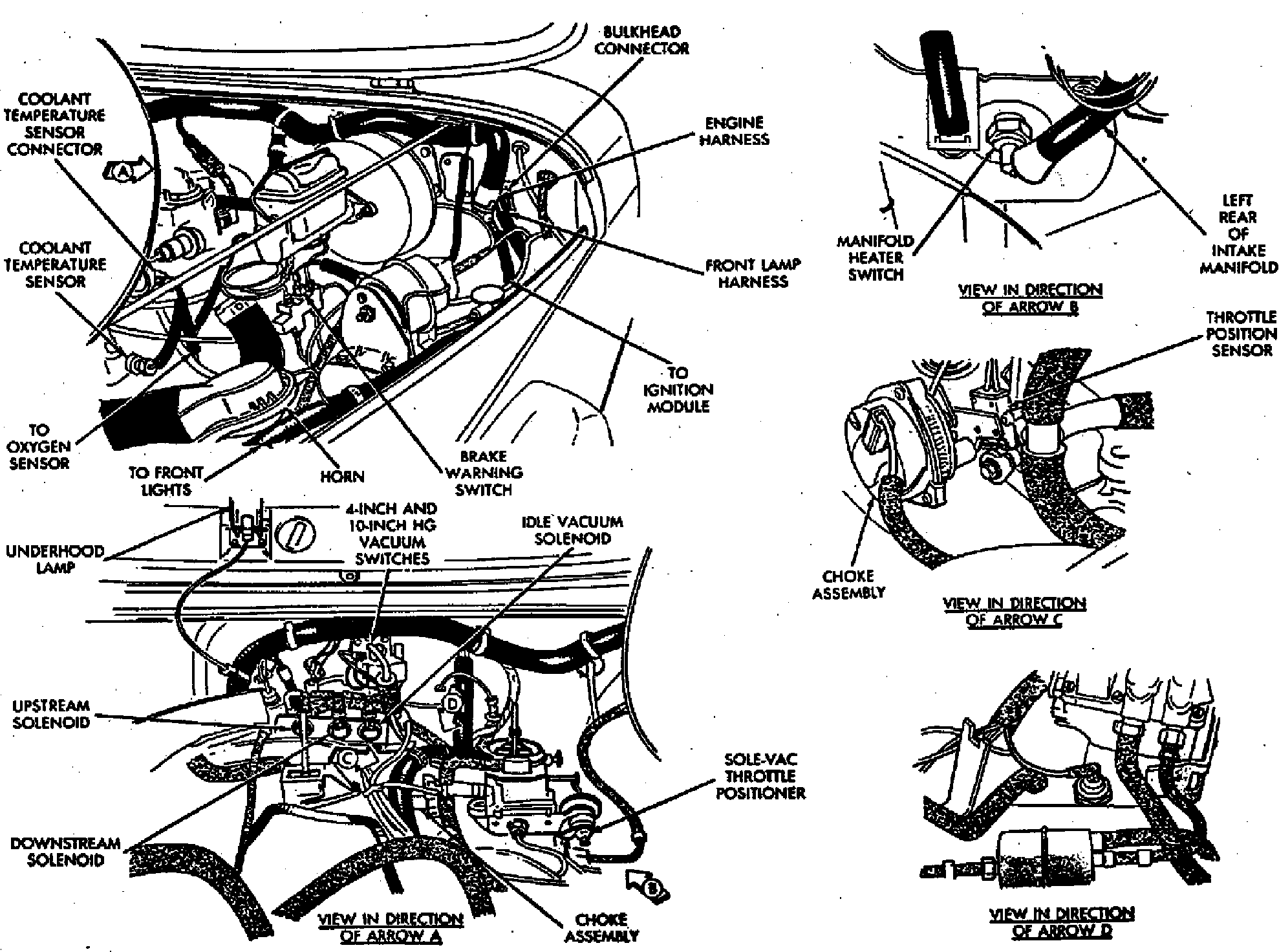

Engine Components.:

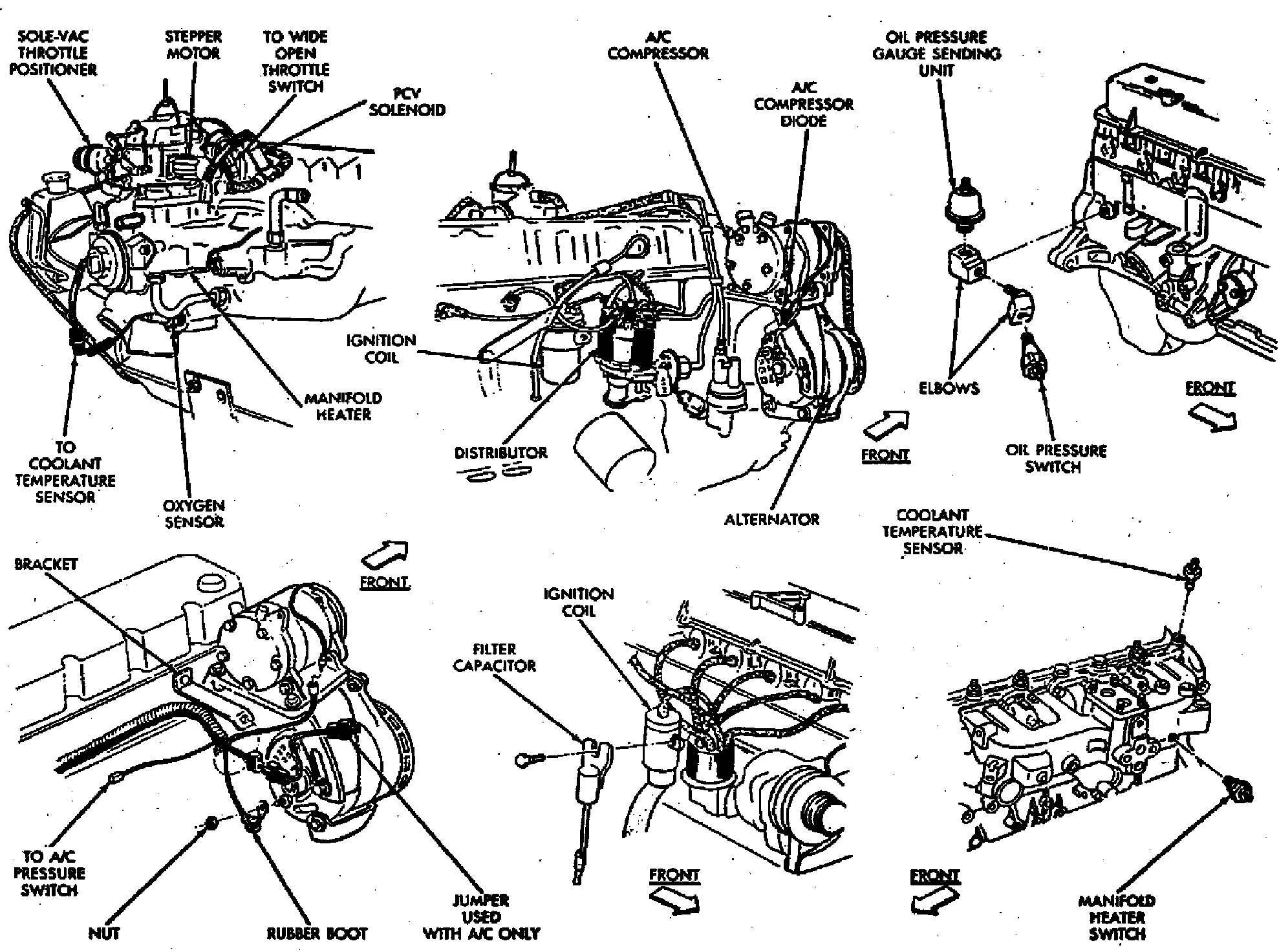

Engine Components.:




LH Rear Side Of Engine

Applicable to: 6-258/4.2L Engine
