Fault 1018: Serial Data Circuit

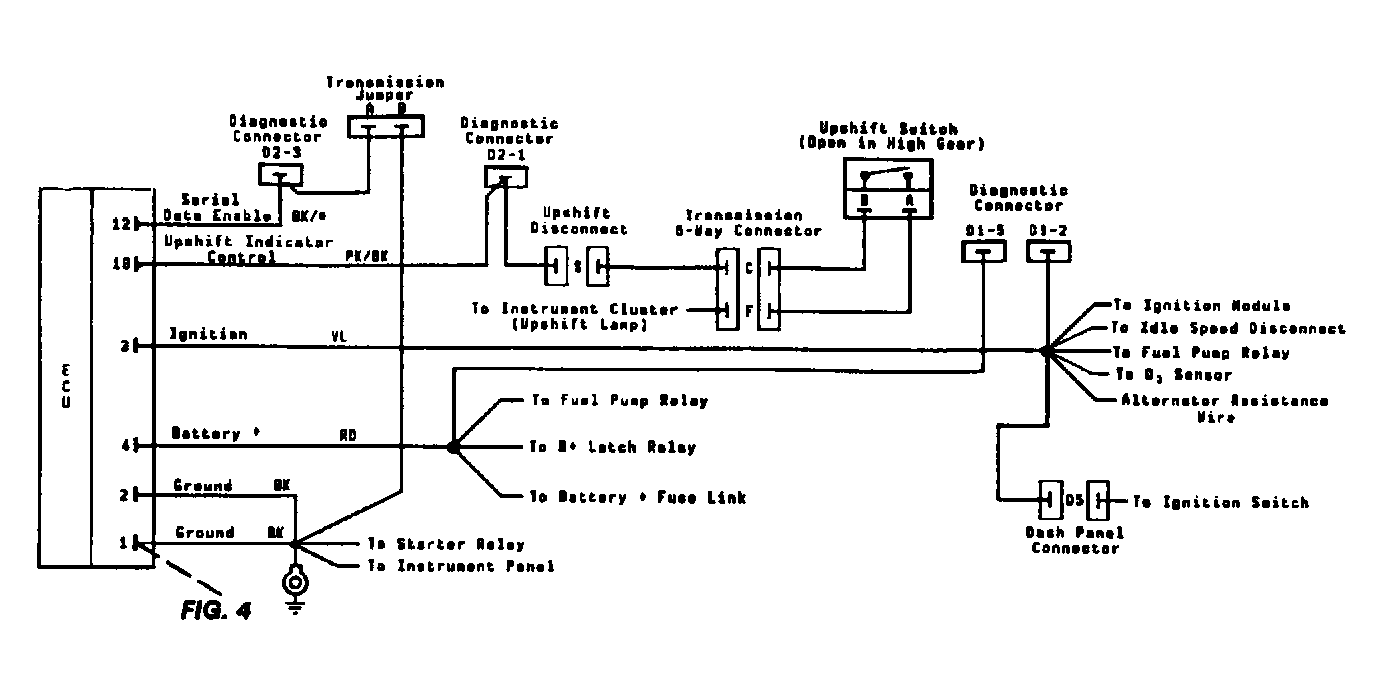

Fig 1: Fault 1018: Circuit Diagram Serial Data Circuit
G90B17674

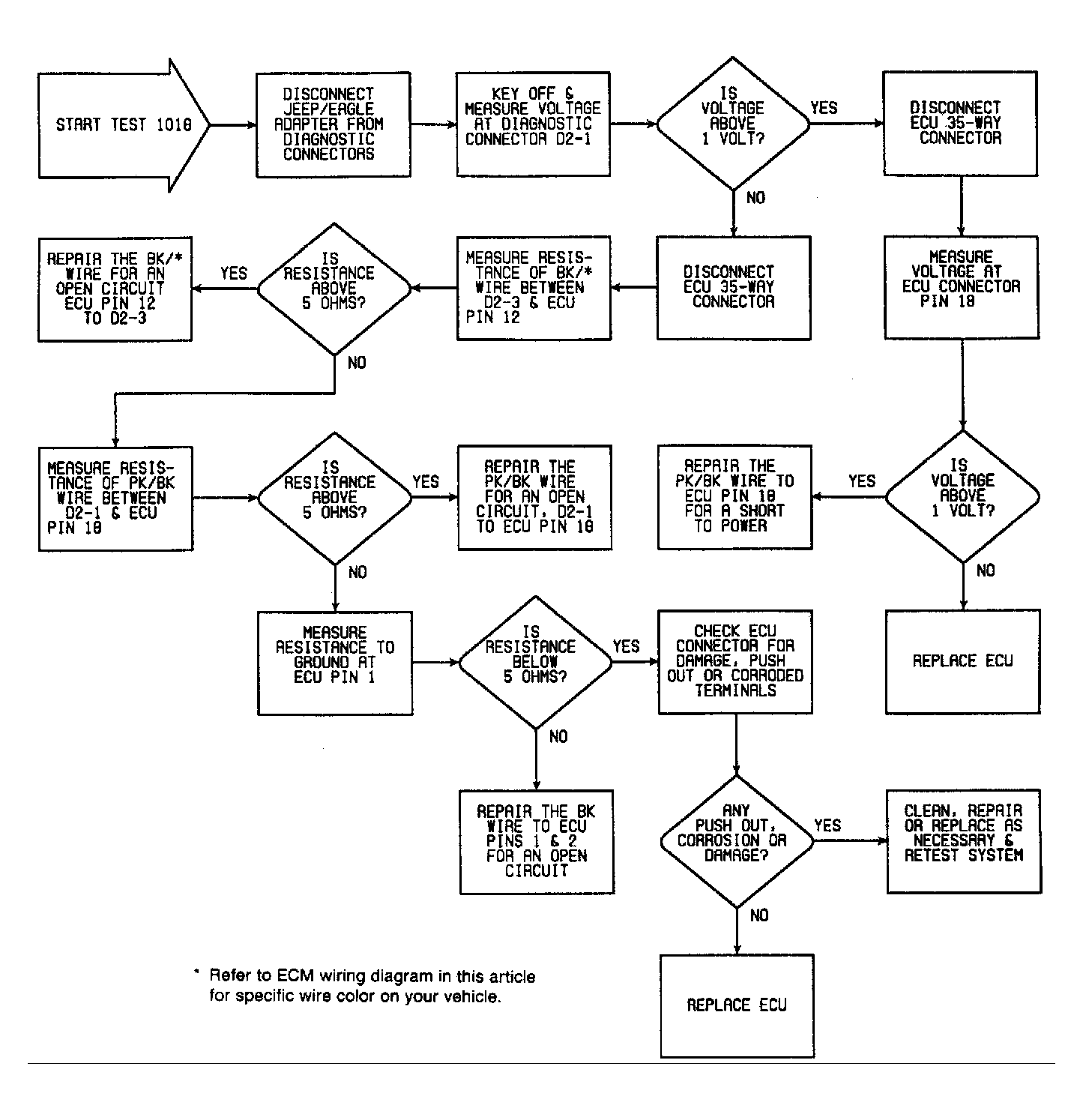

Fig 2: Fault 1018: Flow Chart Serial Data Circuit
G90C17675
