Fault 1210: Injector No. 1 Circuit Open
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Fault 1210: Injector No. 1 Circuit Open
Fig 1: Fault 1210: Circuit Diagram No. 1 Injector Circuit Open

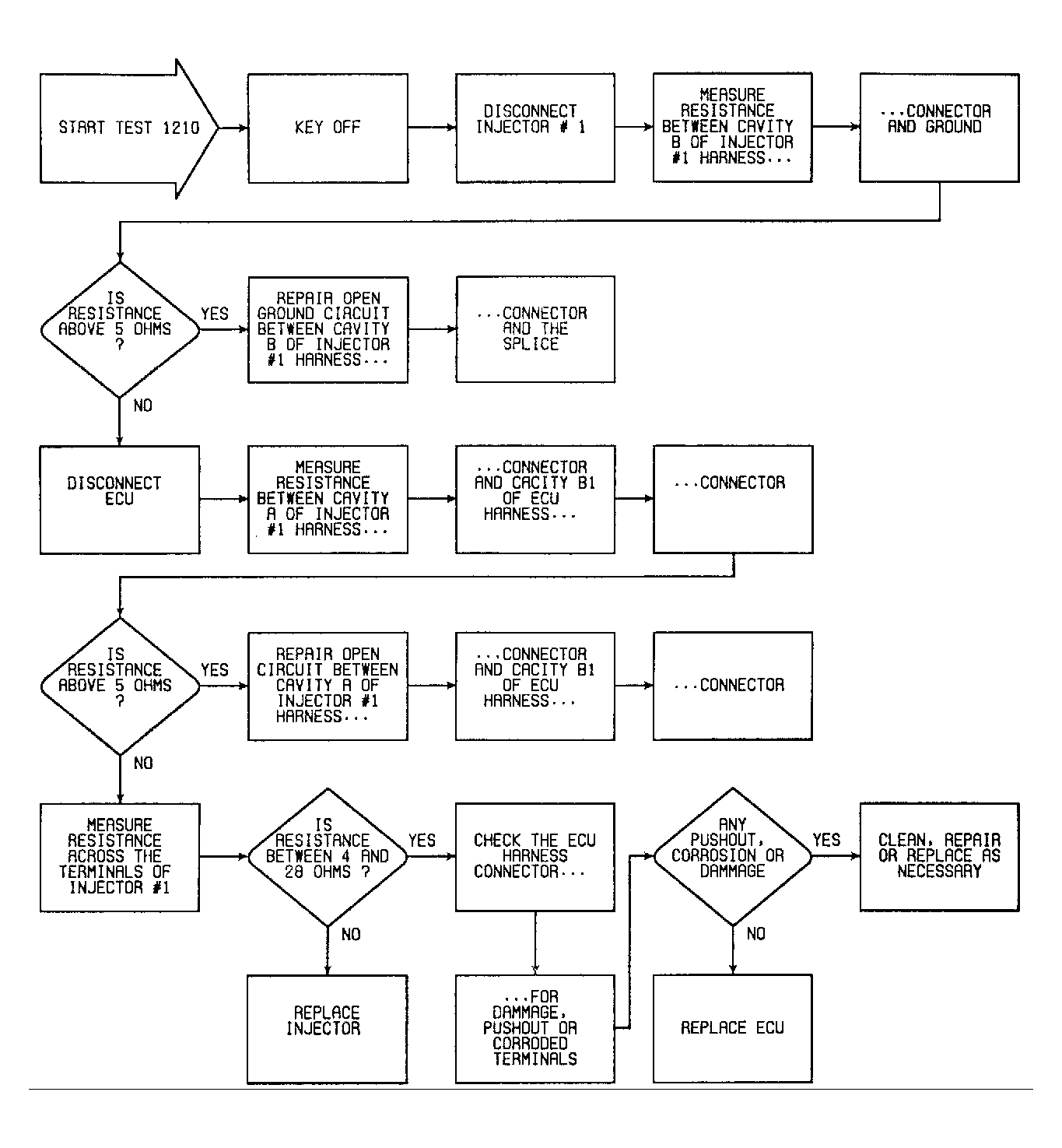

Fig 2: Fault 1210: Flow Chart No. 1 Injector Circuit Open
