Fault 1212: Injector No. 3 Circuit Open

Fig 1: Fault 1212: Circuit Diagram No. 3 Injector Circuit Open
G90F17835

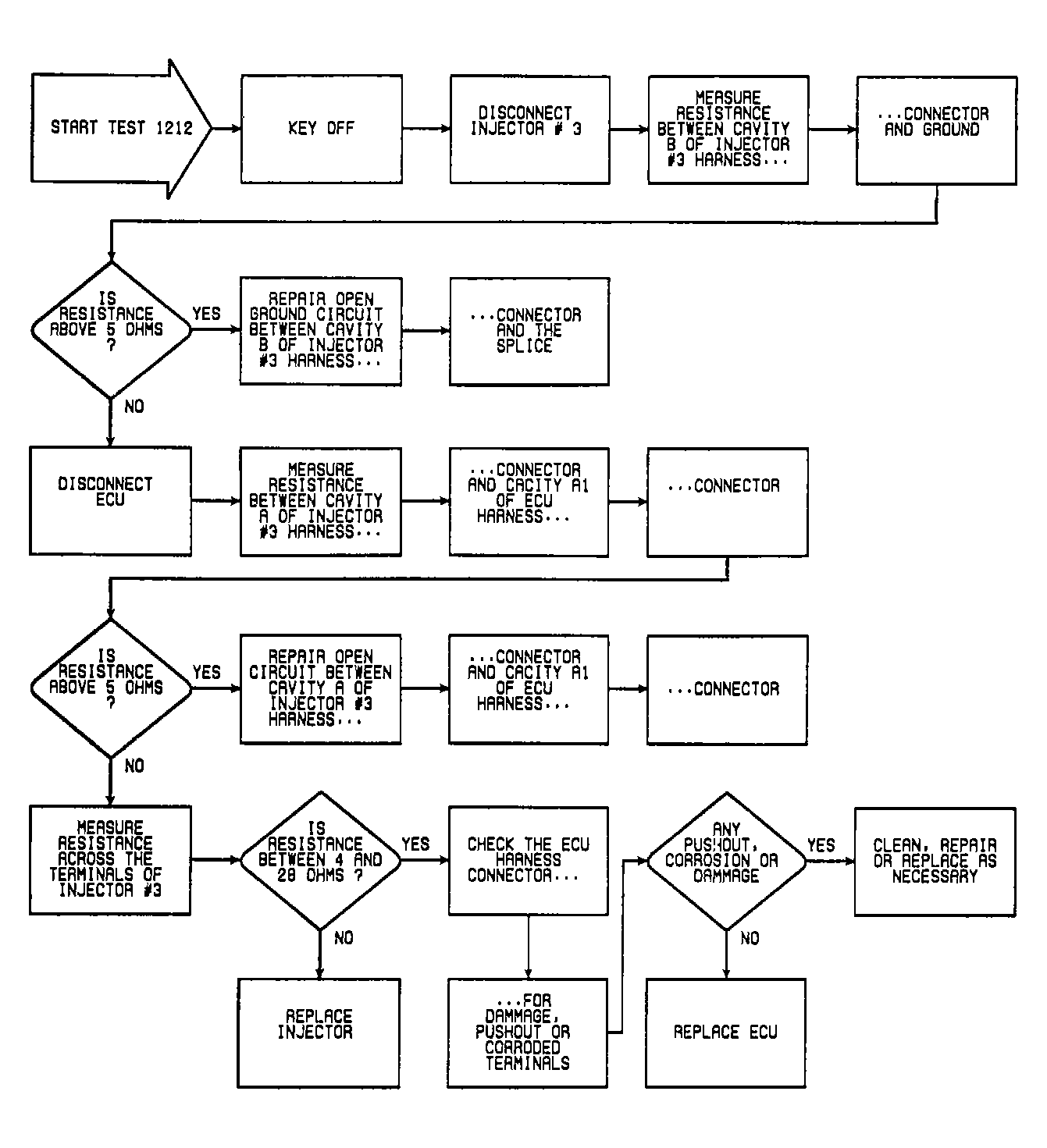

Fig 2: Fault 1212: Flow Chart No. 3 Injector Circuit Open
G90D17924
