Fault 1073: Ecu Doesn't See Speed Sensor

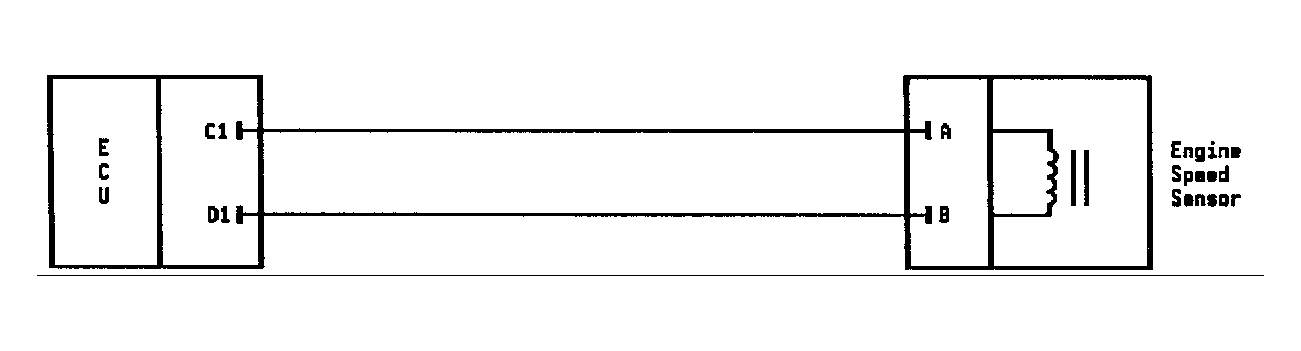

Fig 1: Fault 1073: Circuit Diagram ECU Doesn't See Speed Sensor

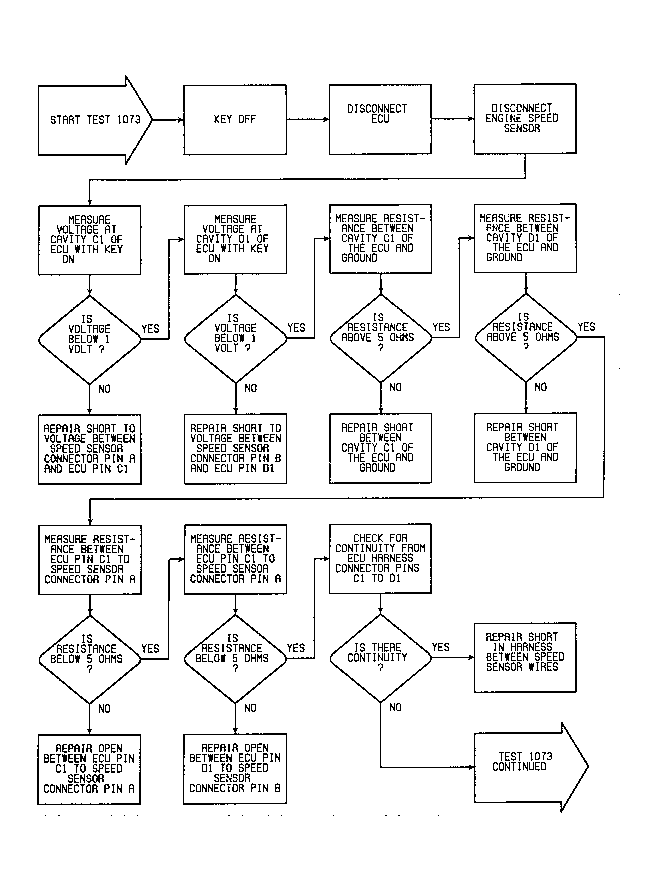

Fig 2: Fault 1073: Flow Chart ECU Doesn't See Speed Sensor (1 of 2)

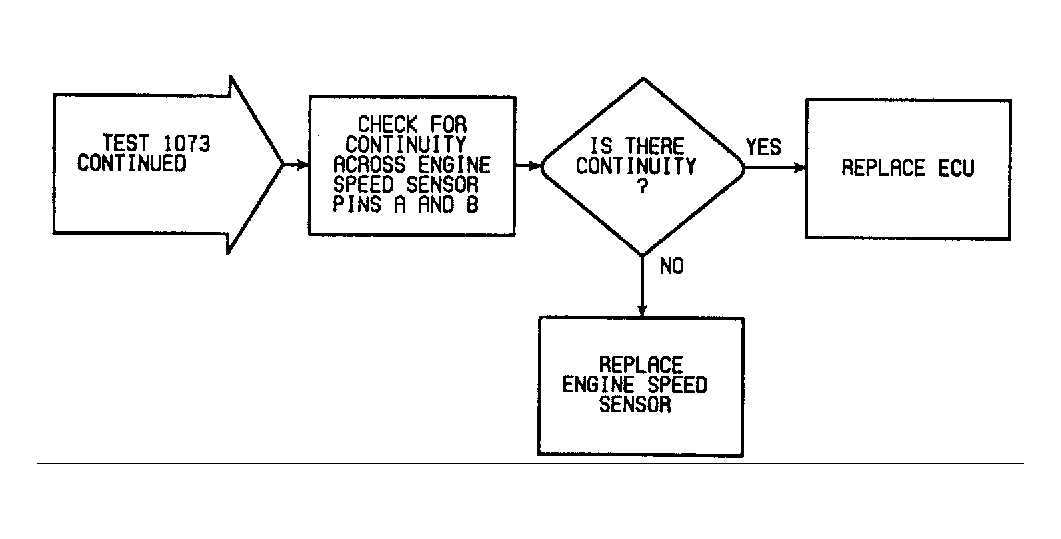

Fig 3: Fault 1073: Flow Chart ECU Doesn't See Speed Sensor (2 of 2)
