Code 816 - Left Rear Wheel Speed Sensor Fault

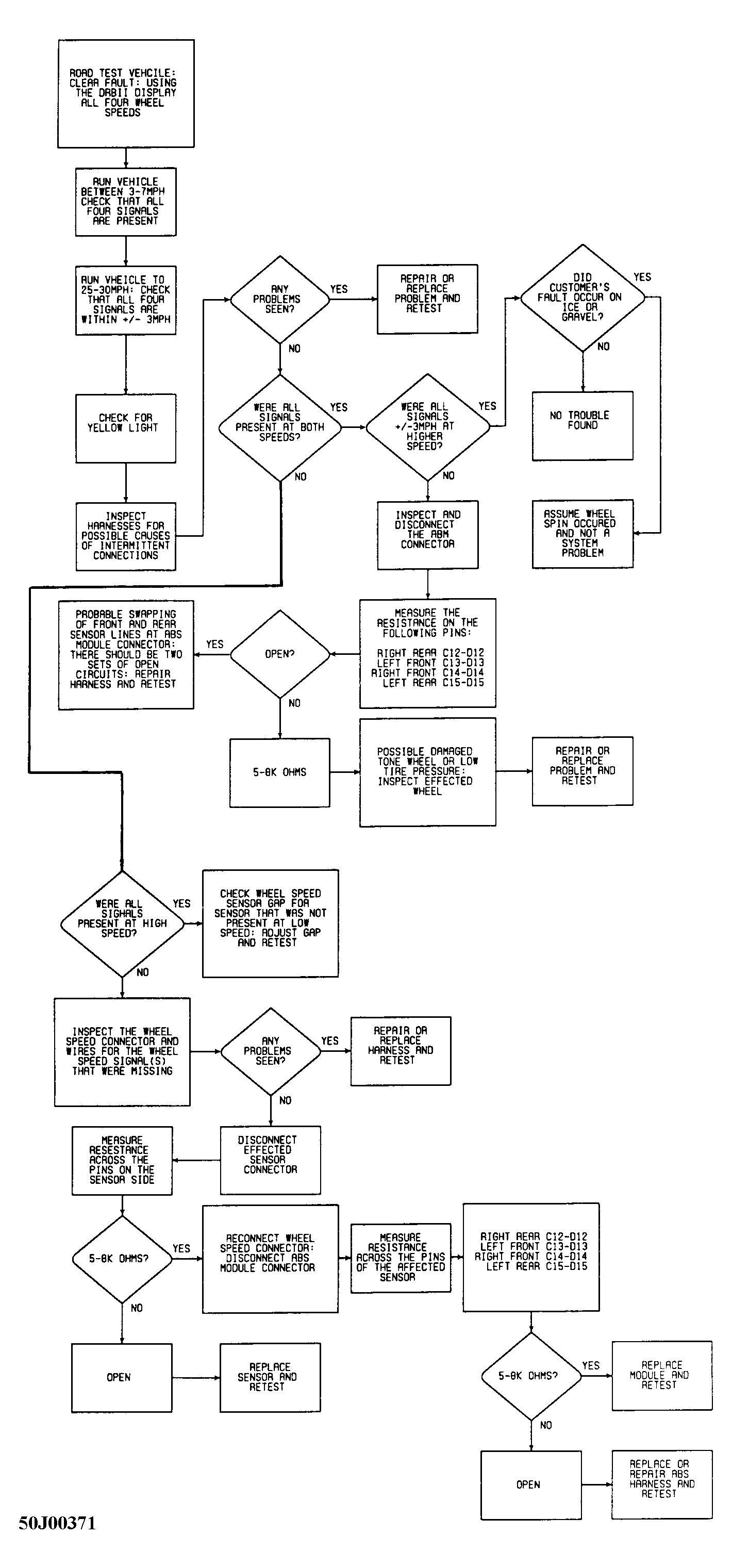

Fig 1: Code 816: Left Rear Wheel Speed Sensor Fault
G50J00371

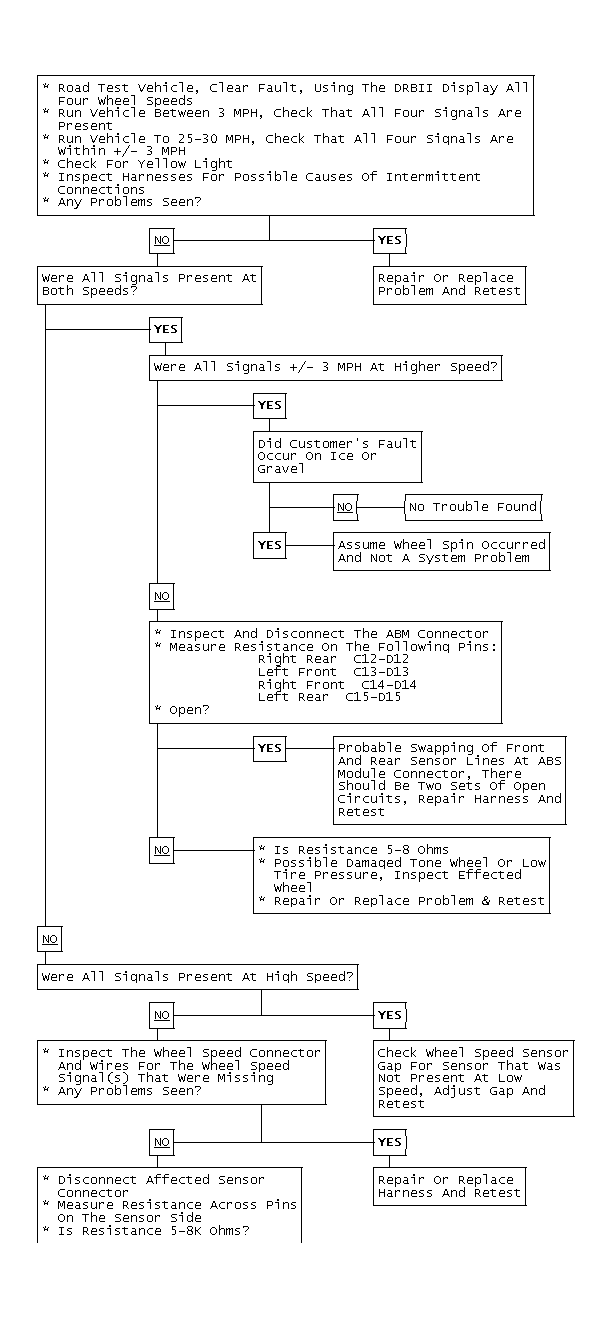

Fig 2: Code 816: Left Rear Wheel Speed Sensor Fault
GB0010701
