Throttle Position Sensor (TPS)

For TPS testing procedure, See Fig 1 .

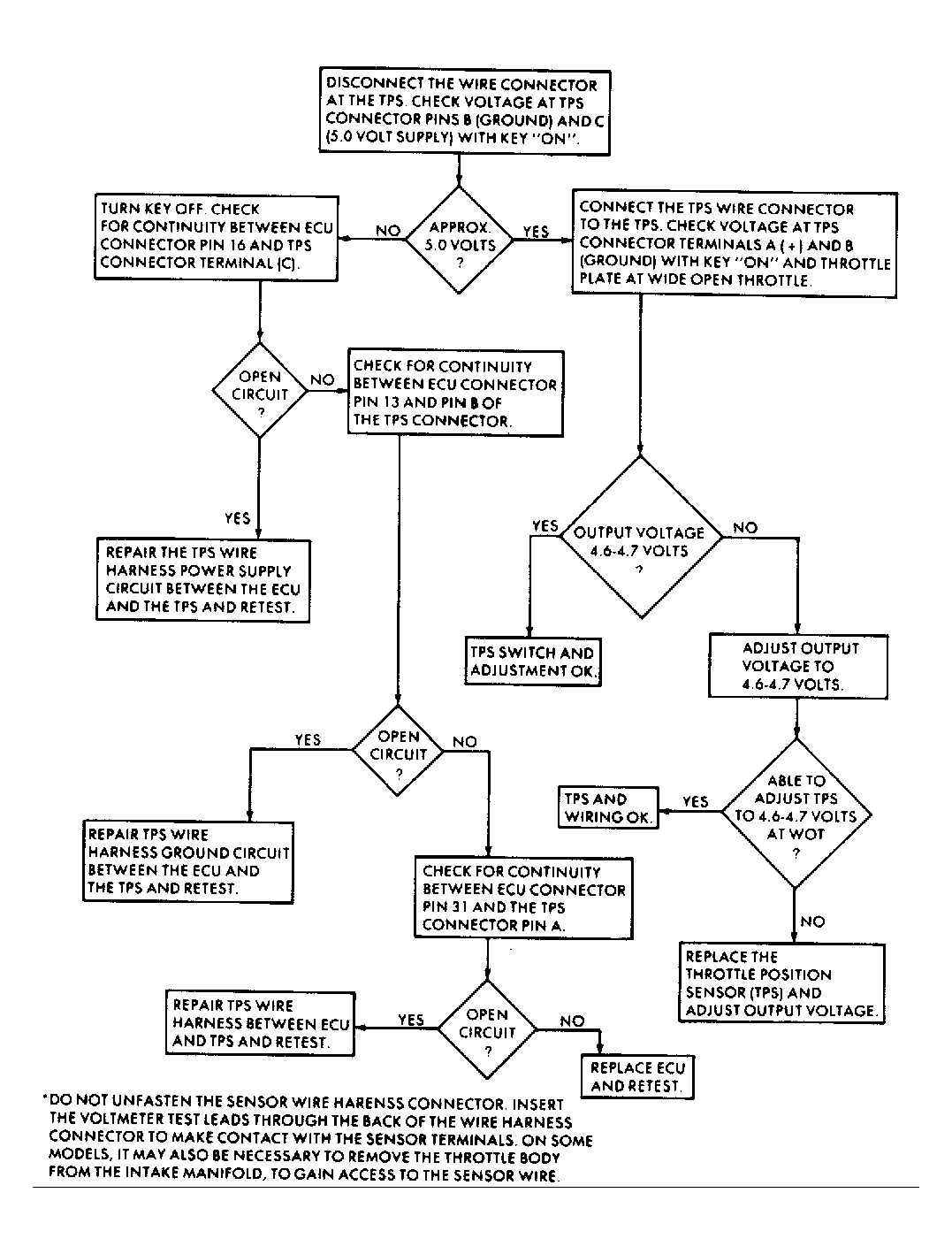

Fig 1: Throttle Position Sensor Flow Chart Test
G120919Courtesy of CHRYSLER MOTORS.
