Fault Code 1017 - Mat Sensor Line High

Fig 1: MAT Sensor Circuit Diagram

Courtesy of CHRYSLER MOTORS.

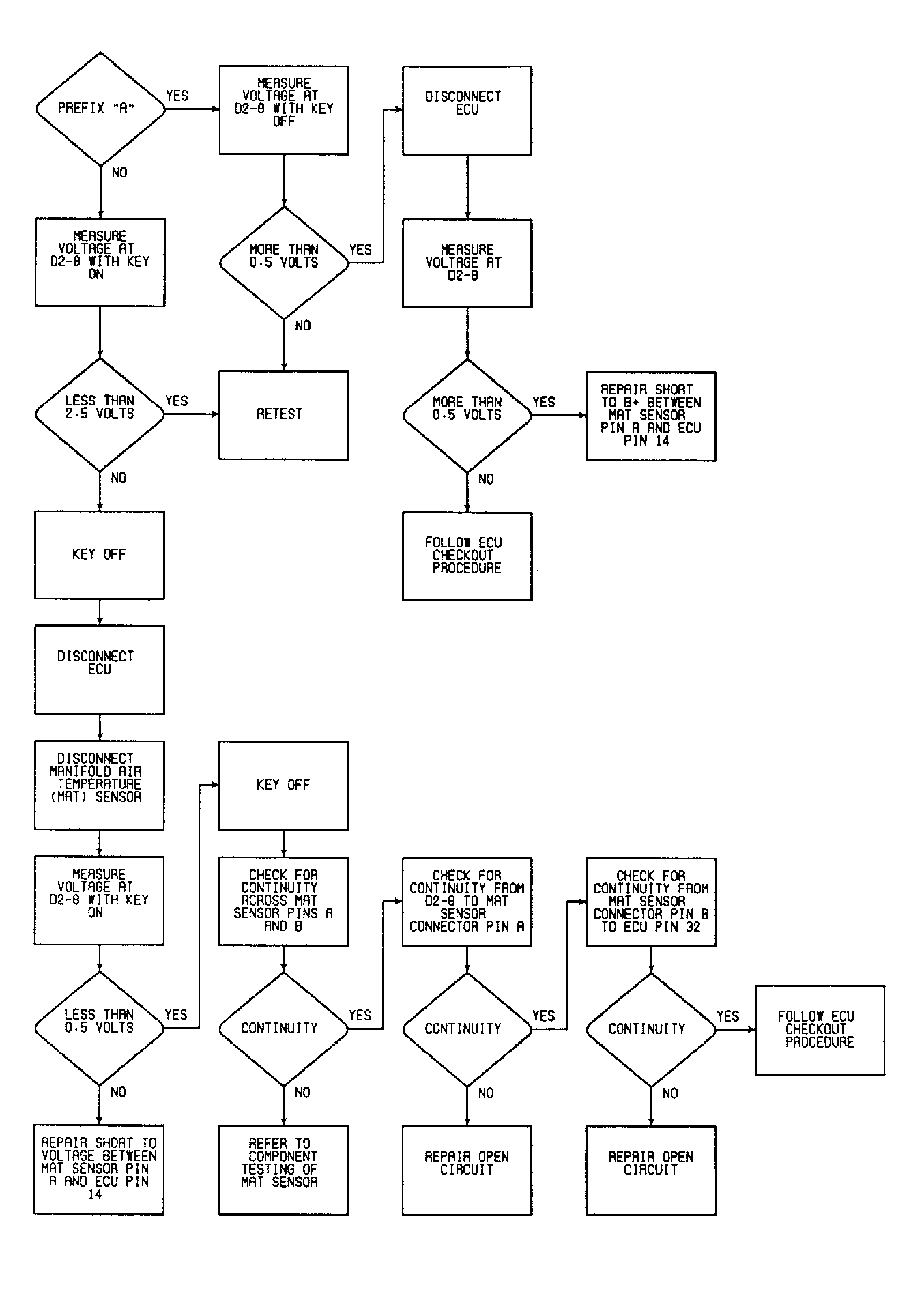

Fig 2: Testing For Fault Code 1017 - MAT Sensor Line High

Courtesy of CHRYSLER MOTORS.
