Ignition Control Module: Locations

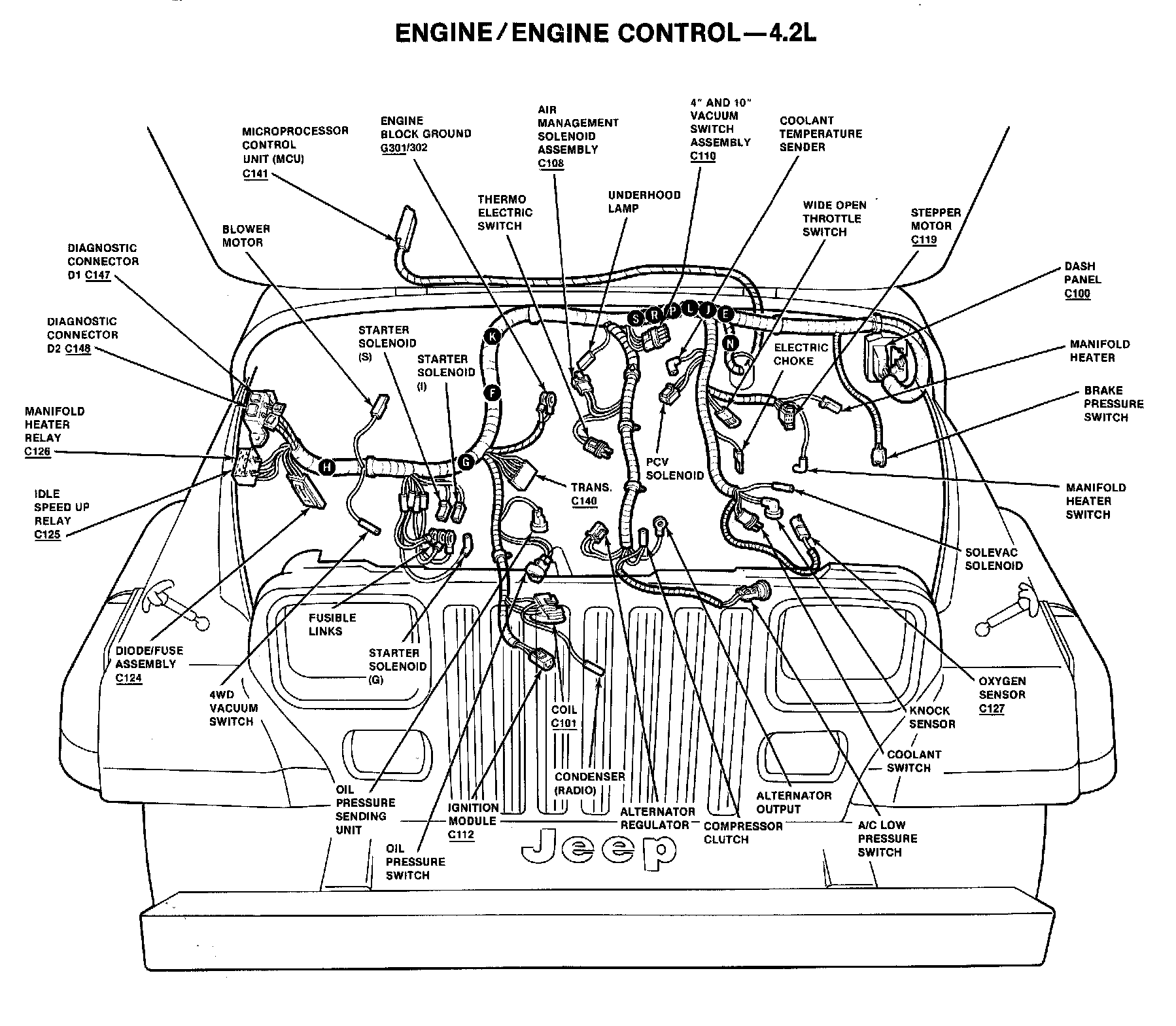

This is all O.E. gives for the location of the Ignition Control Module.
