Tune-Up - 4-CYL: Adjustments: Distributor

All models are equipped with a Renix solid state ignition module. Renix system uses a TDC sensor mounted near the flywheel. The distributor consists of a cap and rotor. Its only function is to distribute high voltage to appropriate spark plug. No adjustments are required on either system.

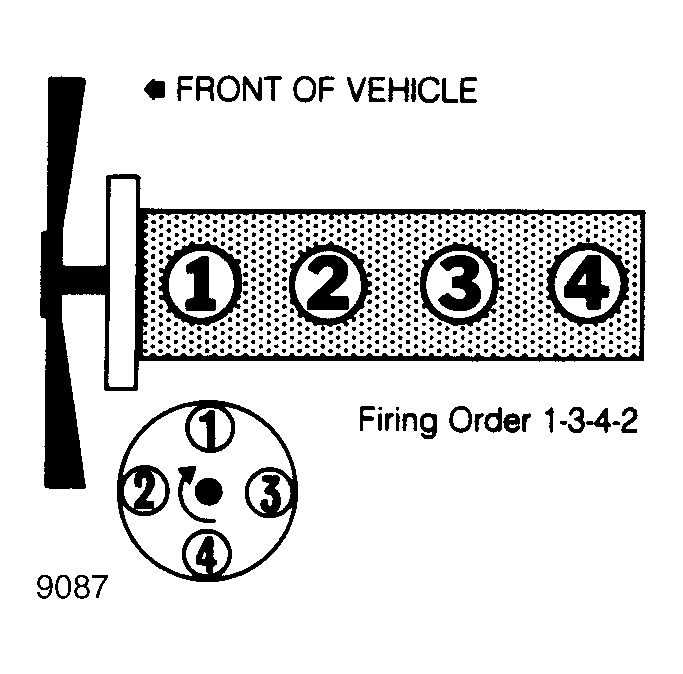

Fig 1: 2.5L Firing Order
G9087
