Connector Identification

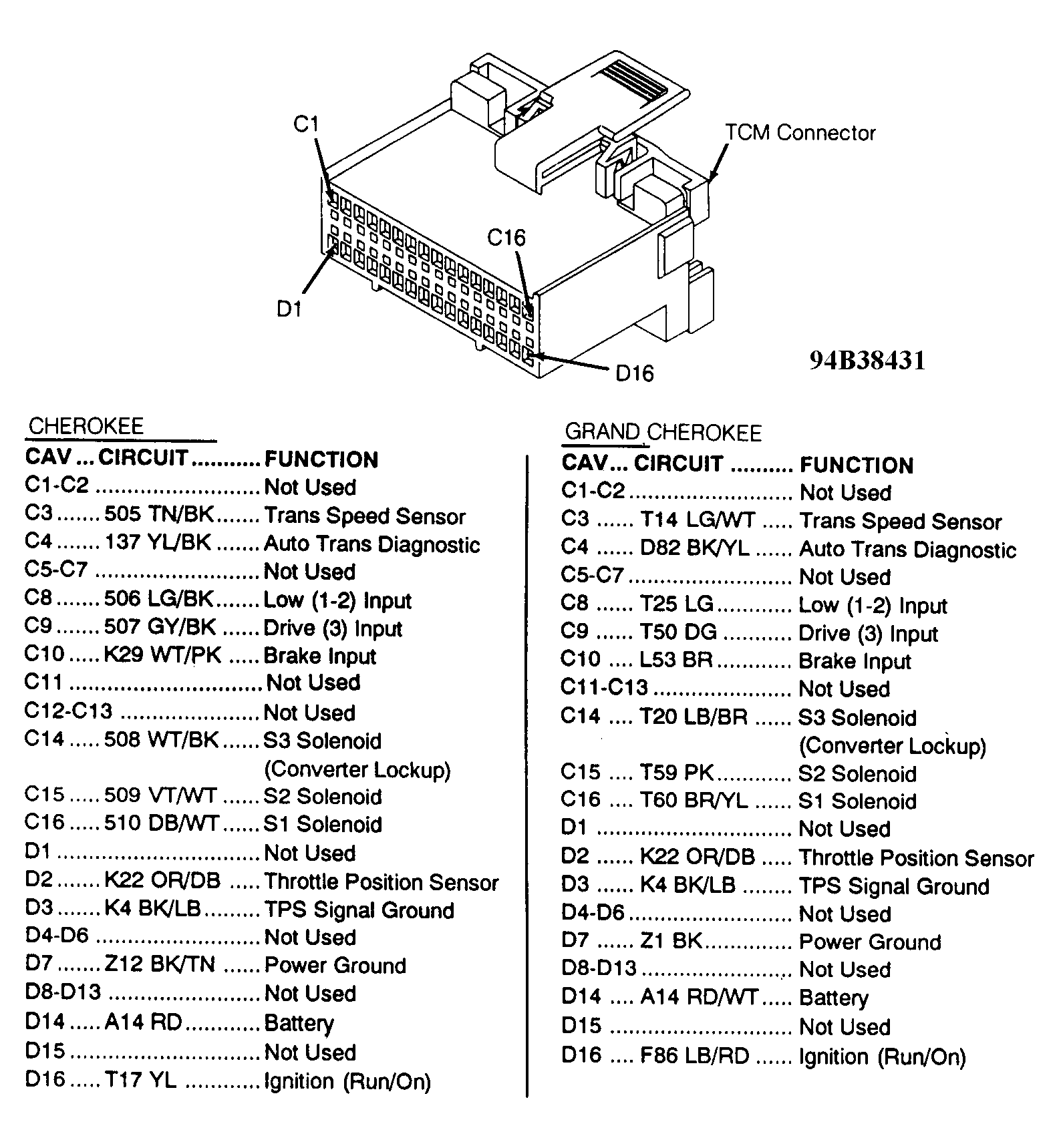

Fig 1: TCM Connector Terminals I.D., Circuits & Functions

G94B38431

Courtesy of CHRYSLER CORP.
