Fuel Injection Ecu Connector
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Fuel Injection Ecu Connector

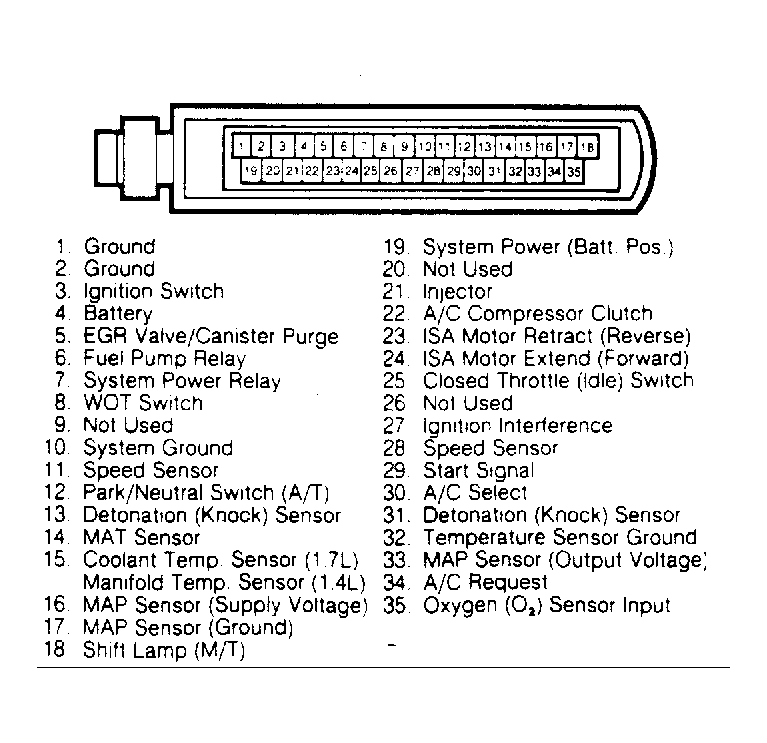

Fig 1: Jeep/Renix Fuel Injection ECU Connector
Courtesy of AMERICAN MOTORS/JEEP CORP.
