Thermal Vacuum Switch (TVS)

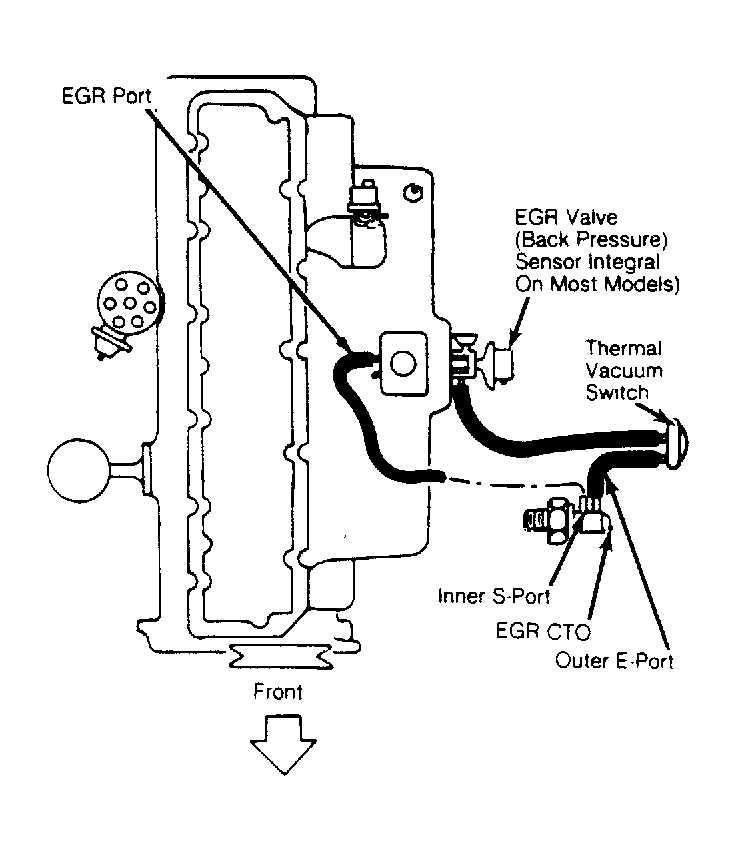

Used only on carbureted 6-cylinder and V8 engines, this switch is located in air cleaner and acts as on-off switch for EGR system. It is controlled by ambient temperature in air cleaner. Switch controls vacuum passage between CTO switch and EGR valve. Below preset temperature, TVS blocks passage of vacuum delaying EGR operation and improving cold driveability.
