Throttle Position Sensor: Testing and Inspection

TPS Terminal Identification:

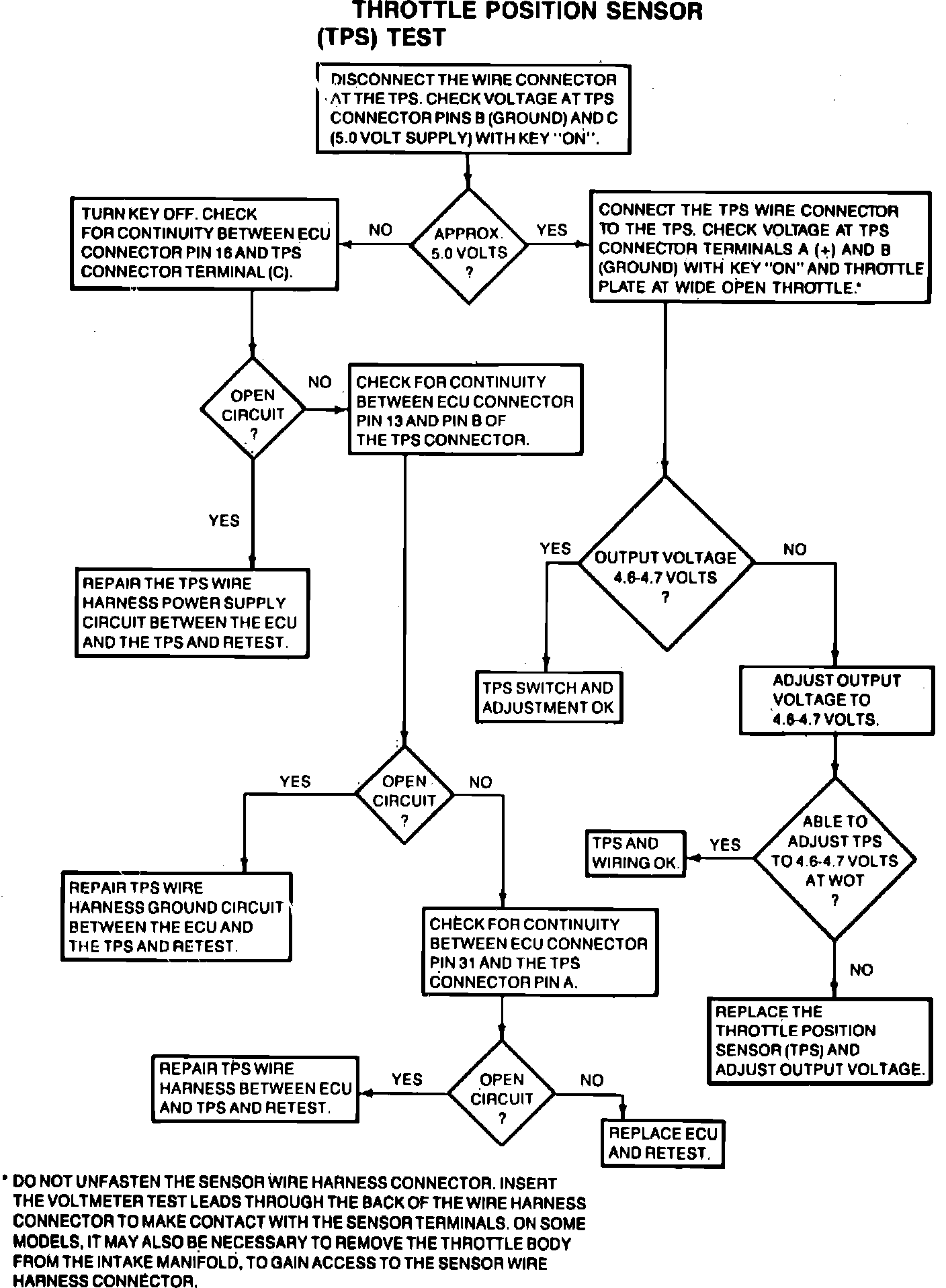

Fig. 13 TPS diagnostic chart:

Refer to pin terminal identification, Fig. 12, and diagnostic chart, Fig. 13, to test throttle position sensor.
