Coolant Temperature Sensor/Switch (For Computer): Locations

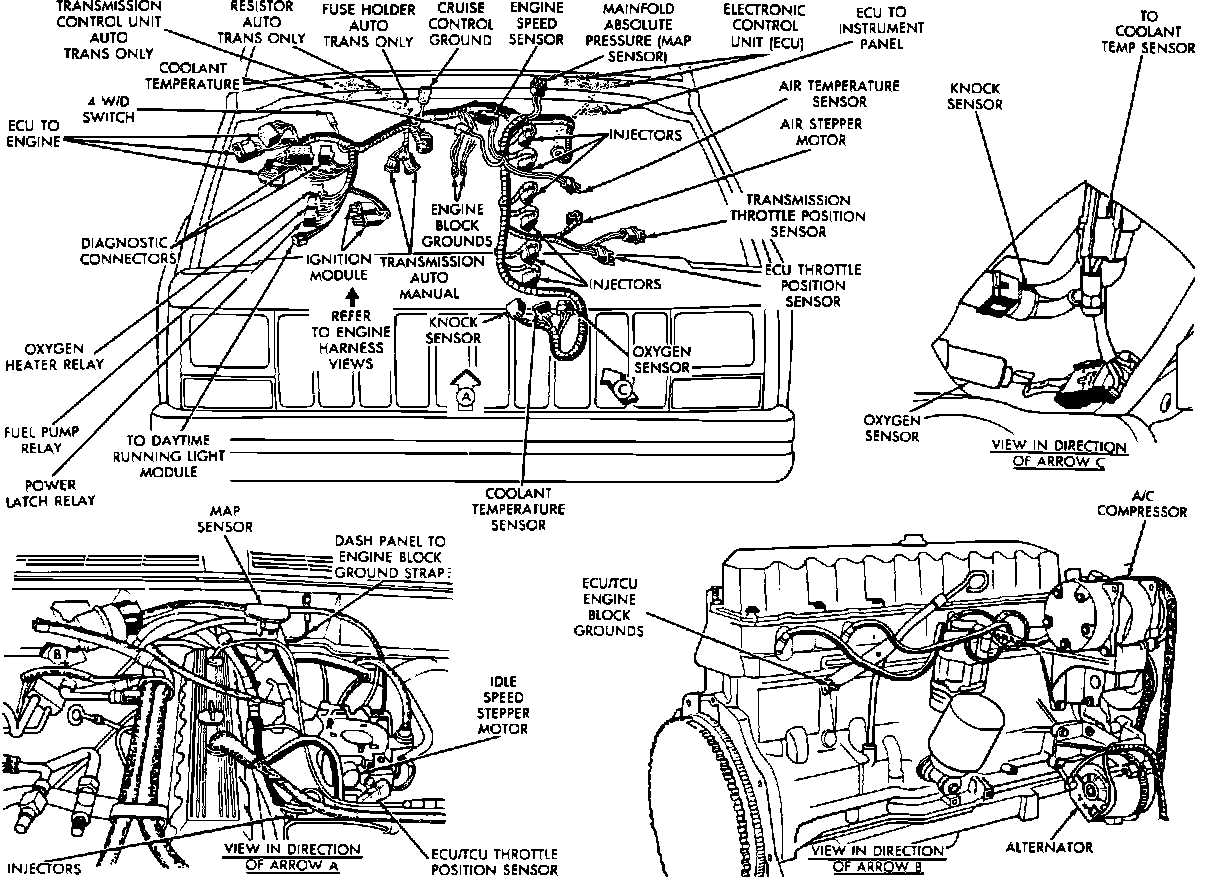

Engine Compartment Components.:




Center Front Of Engine Compartment

Applicable to: 6-243/4.0L Engine
