Test 6: Manual Transmission Up-Shift

Fig 1: Test 6: Manual Transmission Up-Shift (1 of 2)
G36984

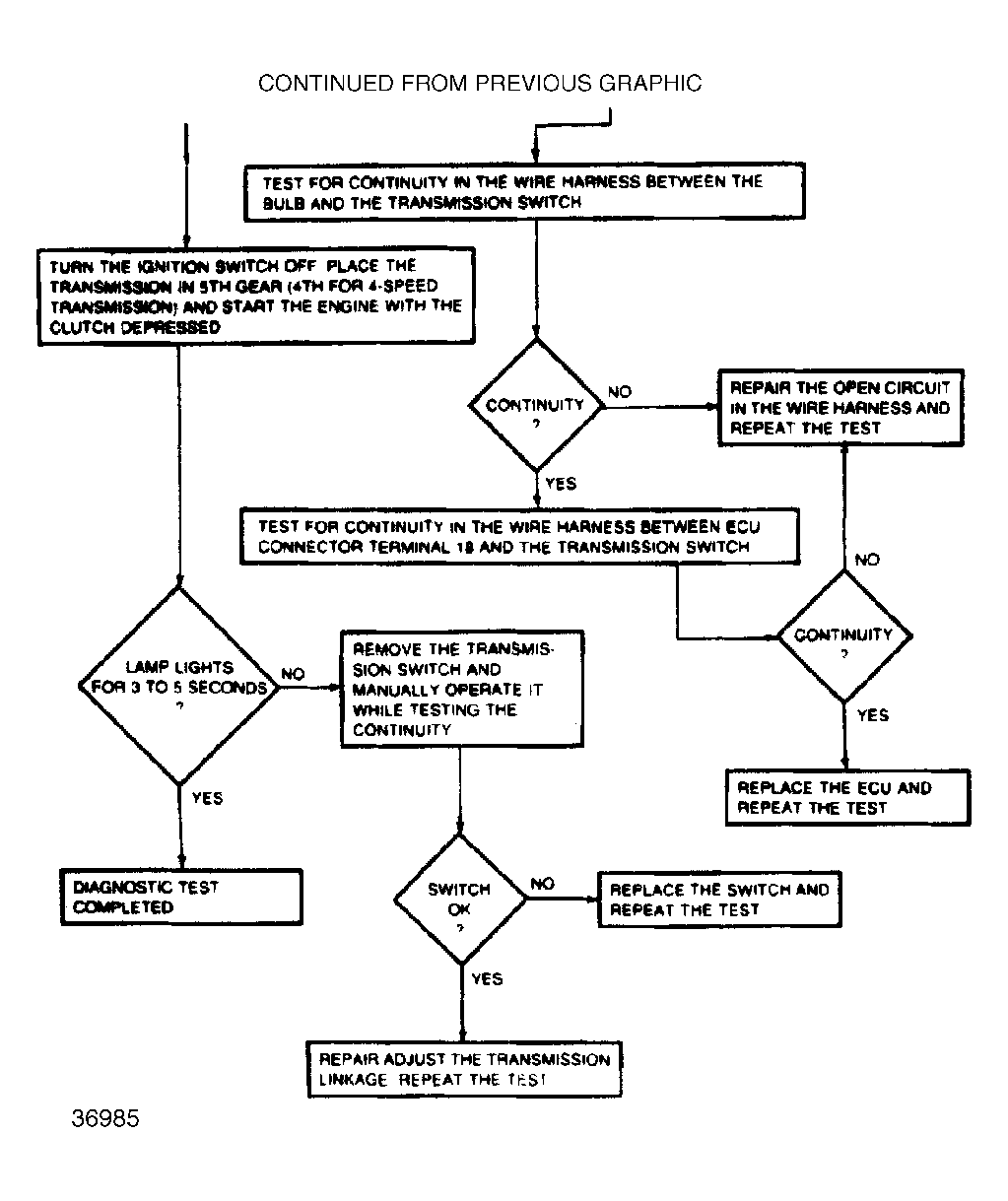

Fig 2: Test 6: Manual Transmission Up-Shift (2 of 2)
G36985
