Test No. 7 - Upstream Solenoid

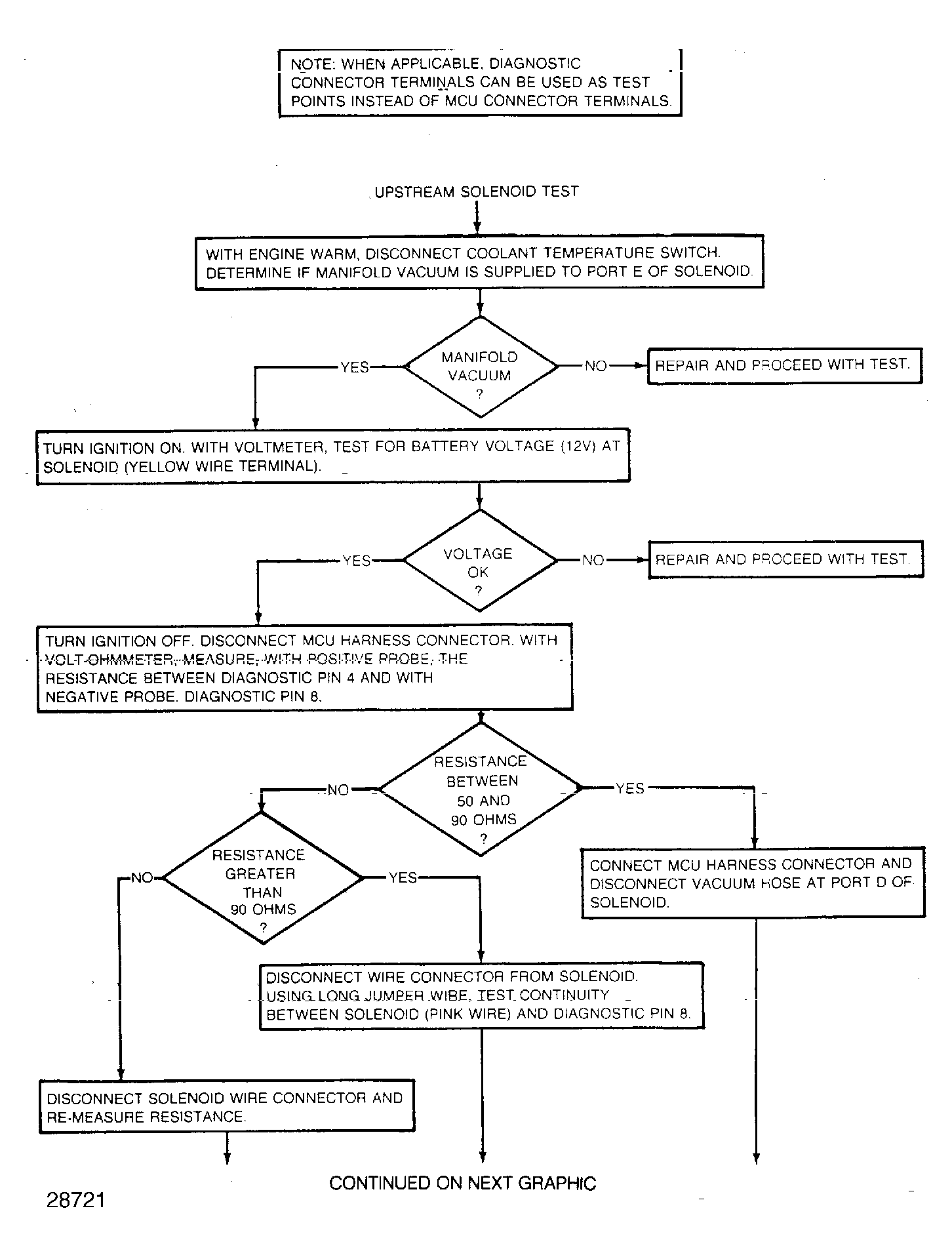

Fig 1: Test No. 7, "Upstream" Solenoid Test (1 of 2)
G28721

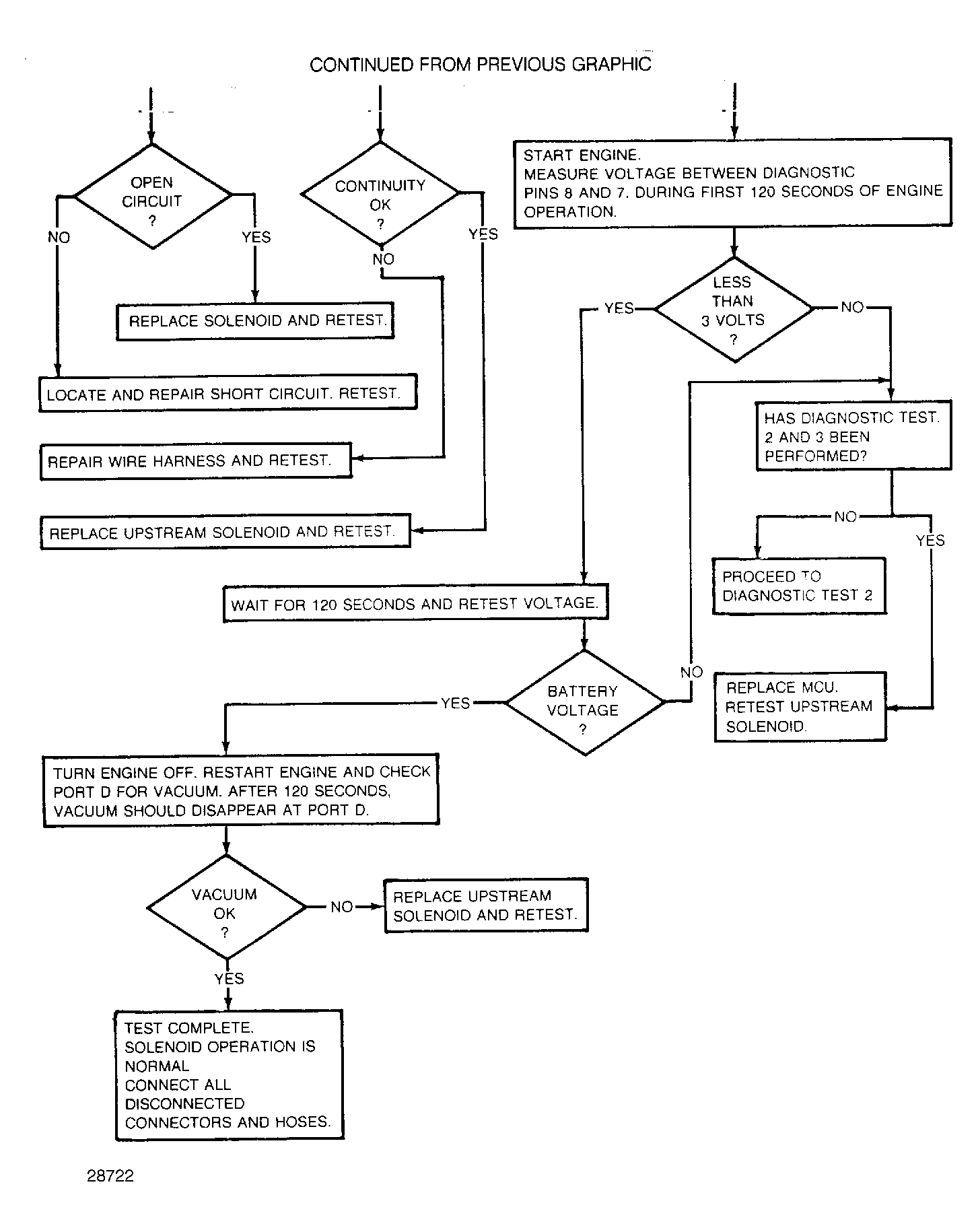

Fig 2: Test No. 7, "Upstream" Solenoid Test (2 of 2)
G28722
