Component Tests and General Diagnostics

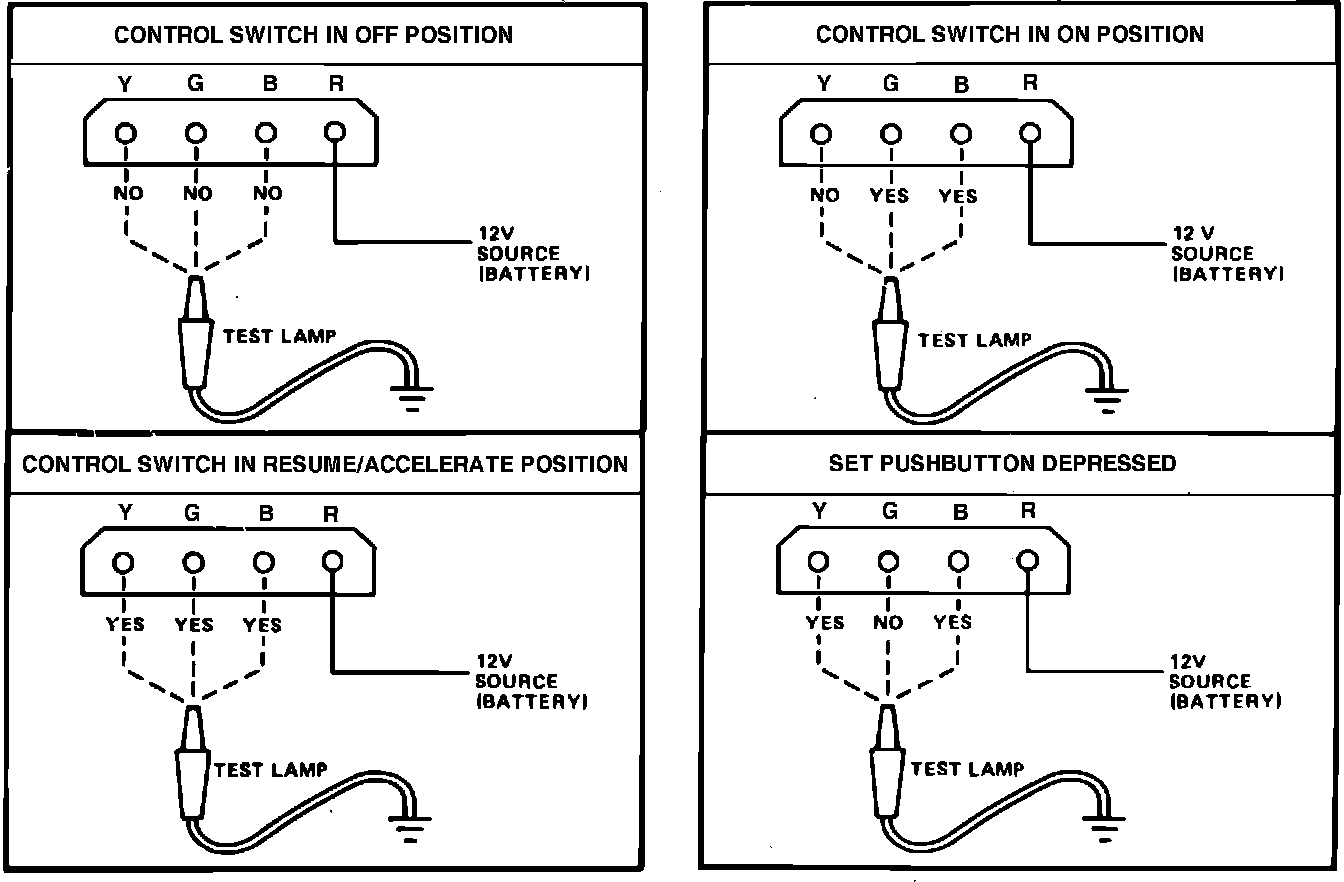

Fig. 5 Control switch continuity test. Exc. 1984-87 Cherokee & Wagoneer & 1986-87 Comanche:

Using a 12 volt test lamp, connect test lamp wires to control switch as indicated, and check continuity of switch. Replace as necessary.
