JAGUARDRIVE Controls: Notes

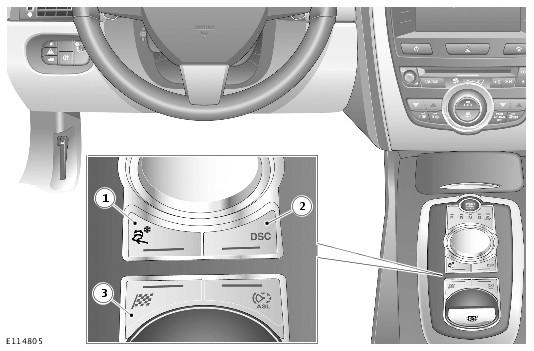

| Item Number | Description |
|---|---|
| 1 | Winter mode button |
| 2 | DSC/TracDSC mode button |
| 3 | Dynamic mode button |
The system is controlled by buttons adjacent to the JaguarDrive selector on the floor console. The buttons allow the selection of one of the following three modes:
- Special modes off.
- Winter mode.
- Dynamic mode.
The instrument cluster will display the selected JaguarDrive control mode in the message center. Refer to Instrument Cluster information.
The JaguarDrive control system uses a combination of a number of vehicle sub-systems to achieve the required vehicle characteristics for the mode selected. The following sub-systems make up the JaguarDrive control system:
- EMS (engine management system). Refer to Electronic Engine Controls for S/C 5.0L and Electronic Engine Controls for 5.0L information.
- Automatic transmission. Refer to Transmission Description information.
- Brake system. Refer to Anti-Lock Control - Stability Assist - 5.0L information.
- Adaptive dynamics. Refer to Vehicle Dynamic Suspension information.
- Electronic differential control (supercharger (SC) vehicles only). Refer to Rear Drive Axle and Differential - 5.0L information.
The JaguarDrive control software is stored in the JaguarDrive selector module located below the JaguarDrive selector. The module detects the selection made using the buttons and transmits a signal on the high speed controller area network (CAN) bus, which is received by each of the sub-system control modules.
Each of the affected sub-system control modules contain software, which applies the correct operating parameters to their controlled system for the JaguarDrive control mode selection made.
Each sub-system control module also provides feedback for the selected mode so that the JaguarDrive control software can check that all systems have changed to the correct operating parameters.
