Component Location - Lin And Private Can Buses
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

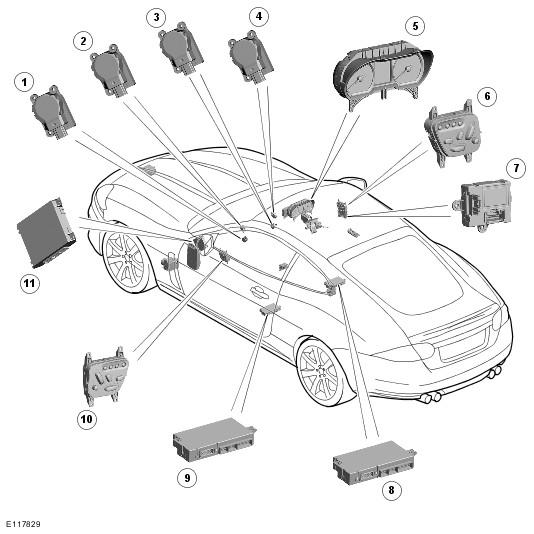

| Item Number | Description |
|---|---|
| 1 | LH (left hand) temperature blend stepper motor |
| 2 | Face/Feet distribution stepper motor |
| 3 | RH (right hand) temperature blend stepper motor |
| 4 | Windshield distribution (defrost) stepper motor |
| 5 | Instrument cluster |
| 6 | Driver seat switch pack |
| 7 | Driver door module |
| 8 | Driver seat module |
| 9 | Passenger seat module |
| 10 | Passenger seat switch pack |
| 11 | ATC (automatic temperature control) module |
