Home >> Jaguar >> 2012 >> XK (X150) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Parking Assist Distance Sensor >> RB005 Sensor-Parking aid-Inner-Rear-RH
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

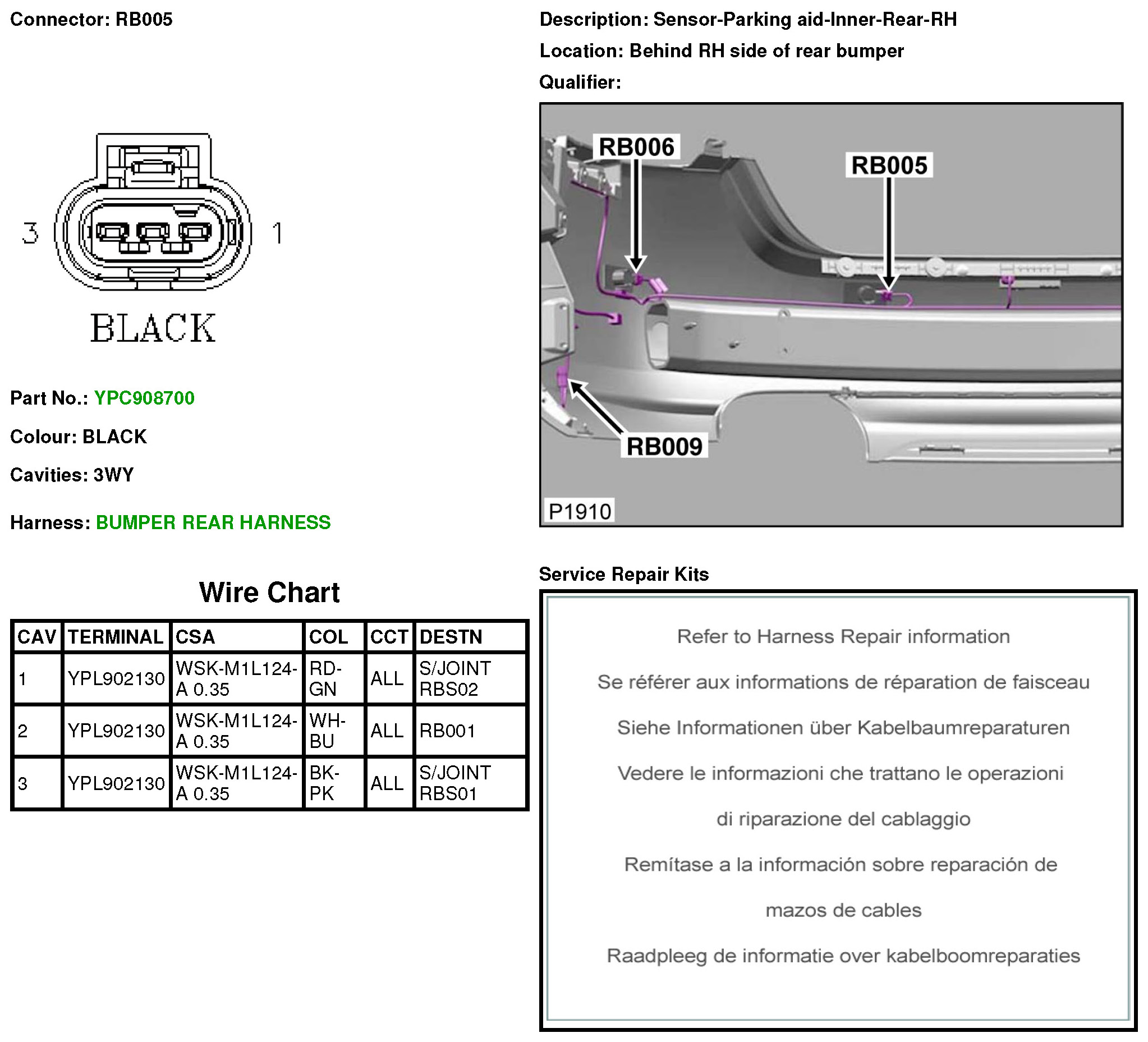

RB005 Sensor-Parking aid-Inner-Rear-RH



RB005
