Home >> Jaguar >> 2012 >> XK (X150) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module >> IP026 Restraints Control Module (RCM)
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

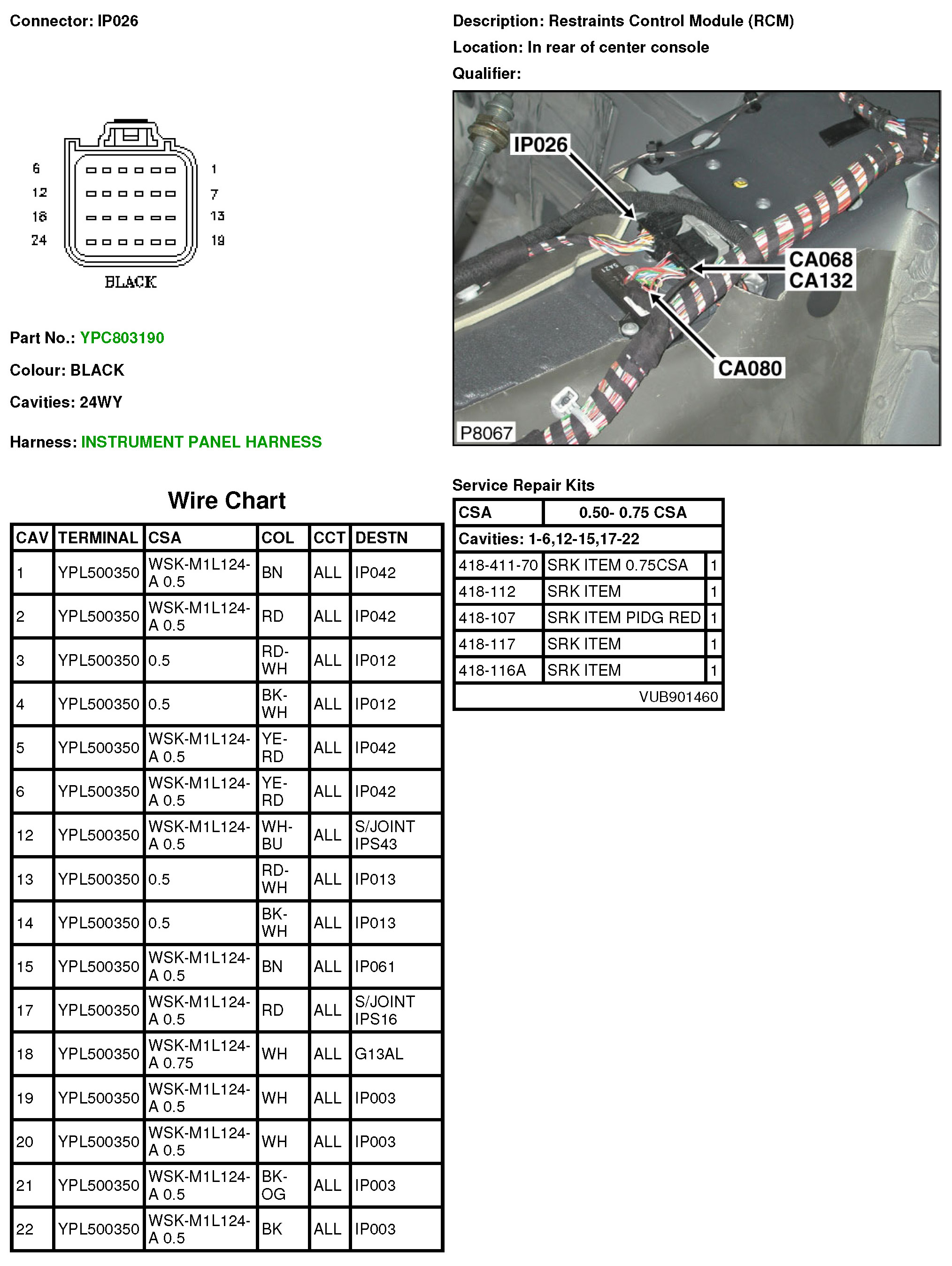

IP026 Restraints Control Module (RCM)



IP026
