Rear Subframe Front Bushing

Uni-Body, Subframe and Mounting System - Rear Subframe Front Bushing

Removal and Installation







Forcing bolt 204-469







Remover support 204-479







Reciever-bush 204-481







Remover-bush 204-482







Support-bush 204-480







Installer-bush 204-483


Removal

All vehicles

1. Disconnect the battery ground cable.

2. CAUTION: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

Vehicles with 4.2L engine
3. Remove the rear subframe assembly.
refer to: Rear Subframe - 4.2L. Service and Repair

Vehicles with 5.0L engine
4. Remove the rear subframe assembly.
refer to: Rear Subframe - 5.0L. Service and Repair

All vehicles







5. NOTE: Note the fitted position.

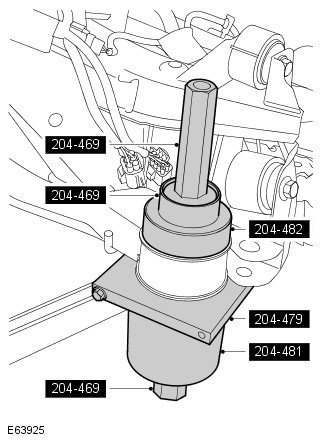

Using the special tools, remove and discard the rear subframe front bushing.

Installation

All vehicles

1. NOTE: Align to the position noted on removal.

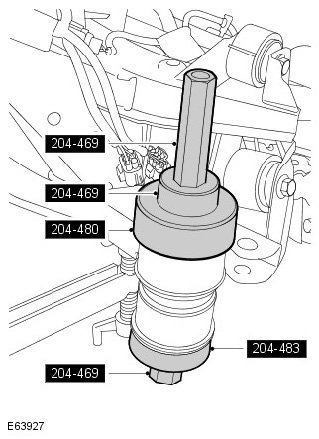

Using the special tools, Install the new front bushings.







Vehicles with 4.2L engine
2. Install the rear subframe.
refer to: Rear Subframe - 4.2L. Service and Repair

Vehicles with 5.0L engine
3. Install the rear subframe.
refer to: Rear Subframe - 5.0L. Service and Repair

All vehicles
4. Connect the battery ground cable.
