Home >> Jaguar >> 2012 >> XF (X250) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> C3HS03A Module-Climate-Controlled Seat
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

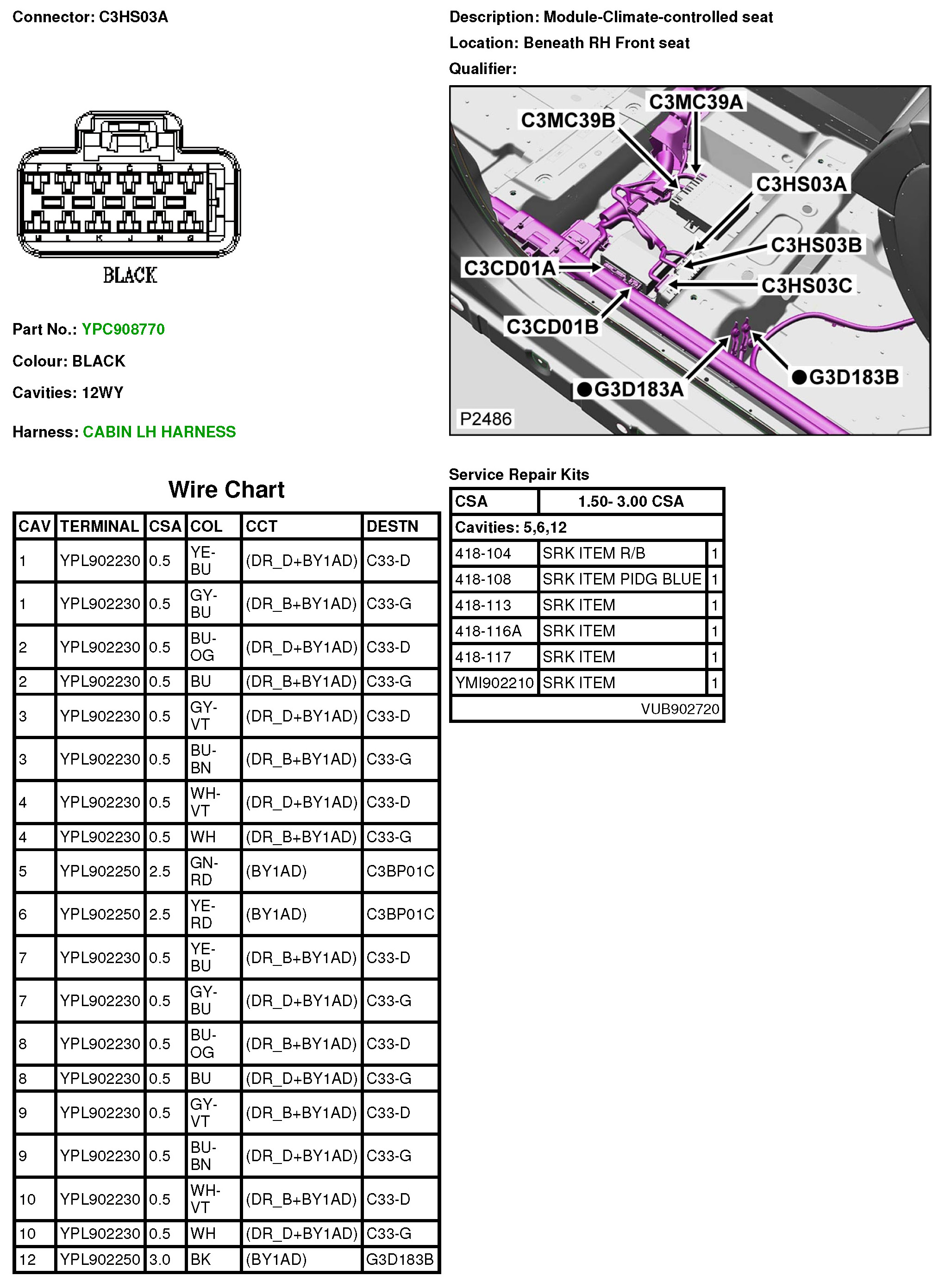

C3HS03A Module-Climate-Controlled Seat



C3HS03A
