Home >> Jaguar >> 2012 >> XF (X250) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Parking Brake Control Module >> C4CB01B Module-Parking Brake
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

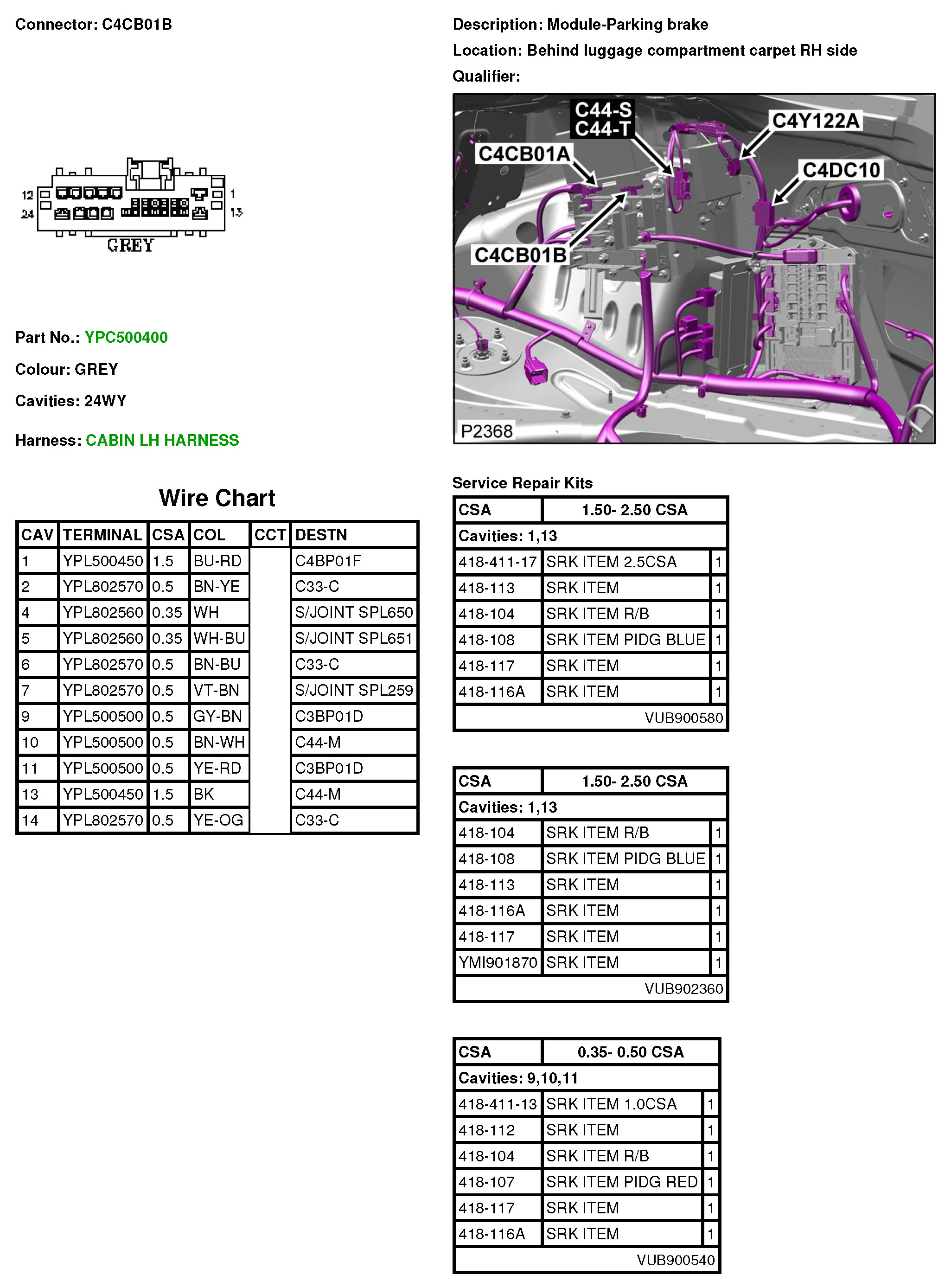

C4CB01B Module-Parking Brake



C4CB01B
