Home >> Jaguar >> 2012 >> XF (X250) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Collision Avoidance Module >> C4RB02A Module-Blind Spot Monitoring-RH
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

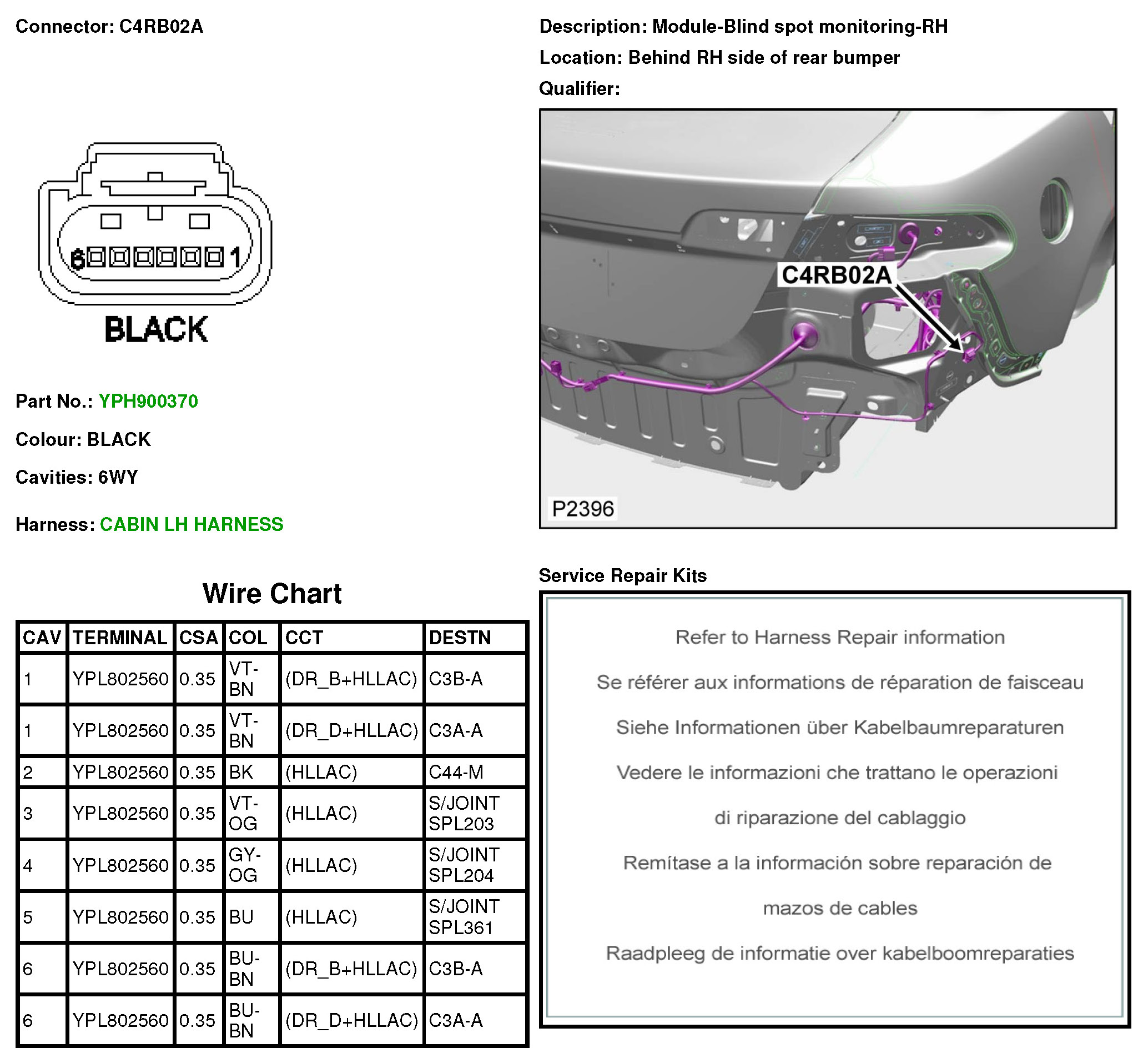

C4RB02A Module-Blind Spot Monitoring-RH



C4RB02A
