Service Action: XJ Feature Activation And Enhancement Program (K064)

Publication date: 2011-04-06
Reference number: K064

SERVICE ACTION: XJ FEATURE ACTIVATION AND ENHANCEMENT PROGRAM

SERVICE ACTION: XJ FEATURE ACTIVATION AND ENHANCEMENT PROGRAM

TECHNICAL SERVICE BULLETIN

Reference Number(s): K064NAS5, Date of Issue:  November 5, 2012
JAGUAR: 2011 XJ (X351)
SECTION: 100
VIN: V00477 - V10285
Superceded Bulletin(s): K064NAS4
NOTE: ISSUE '5' CHANGES ARE LIMITED TO THE EXTENSION OF THE EXPIRY DATE TO 31 OCTOBER 2014

AFFECTED VEHICLE RANGE

XJ (X351)

VIN: V00477 - V10285

Model Year: 2011

CONDITION SUMMARY

Situation:  In an effort to ensure that certain 2011 model year XJ vehicles are fitted with the very latest software to enhance the vehicle owner's experience, vehicles within the affected VIN range may require a number of module software updates. As previously communicated, these software updates will offer a number of additional infotainment features, including Interactive Voice™, enhanced Navigation functions, and video streaming via the Media Hub. Jaguar is making these available to customers who have purchased 2011MY XJ vehicles.

Those modules requiring software updates are:

In addition, as a result of field reports and Engineering investigations on 2011MY XJ vehicles, a number of enhancements are being introduced to improve the customer's experience. These feature enhancements will cover the following items:

NOTE: Unsold US vehicles only eligible for UPS3110 (K070) must have Owner's Handbook JJM 18 02 34 112 installed in place of JJM 18 02 34 111 after completion of the rework action detailed in Technical Bulletin UPS3110.

Action:  Dealers are required to HOLD  all affected vehicles in the above VIN range that are in their control and refrain from releasing the vehicles for new or used vehicle sale pending completion of the rework action detailed in this Technical Bulletin. Affected vehicles in the hands of owners should be repaired at the next available opportunity. At the time of customer appointment, ensure that all outstanding service campaigns for each individual vehicle are identified and allocate sufficient time and resources to complete all campaigns.

For cars in dealer inventory, this Service Action should be performed after completion of the vehicle Pre-Delivery Inspection (PDI).

PARTS

NOTE: Due to specific vehicle needs and limited stock, dealers should contact the Unipart DOC team and provide the relevant VIN by 2:00PM dealer local time to have orders for the following parts to be supplied FOR EXPRESS DELIVERY THE NEXT MORNING  . The Vanity Packs and Business Tray Latches are color-matched items with very low take. Casting Kits, Amplifiers, and Cross Car Seals are only necessary if failure is confirmed. Dealers should order these parts only if needed. Quantity shown is for each affected vehicle.
PARTS INFORMATION

C2D18856............... PAS Pipe-LHD V00477-V02989 Qty: 1
C2D18549............... Water Shedder (amp LH) V00477-V04369 Qty: 1
C2D17930............... Outer Waist Finisher Assembly-RH V00477-V04816 Qty: 1
C2D17931............... Outer Waist Finisher Assembly-LH V00477-V04816 Qty: 1
C2D13489NUG....... Business Tray Latch (Ivory, non-painted) V00477-V07015 Qty: 2(1)
C2D13489PVJ........ Business Tray Latch (Jet, non-painted) V00477-V07015 Qty: 2(1)
C2D17219AMN ...... Vanity Pack (Canvas) V00477-V08089 Qty: 2(1)
C2D17219NUG....... Vanity Pack (Ivory) V00477-V08089 Qty: 2(1)
C2D5746................. Cross Car Seal-Rear V00477-V09995 Qty: 1
C2D16891 .............. Rear Blind Casting Kit V00477-V07564 Qty: 1
C2D19095 .............. Rear Blind Casting Kit V07565-V10285 Qty: 1
C2D16892 .............. Front Blind Casting Kit V00477-V07564 Qty: 1
C2D19096 .............. Front Blind Casting Kit V07565-V10285 Qty: 1
C2D17657 .............. Amplifier-600W V00477-V04369 Qty: 1
C2D17658 .............. Amplifier-1200W V00477-V04369 Qty: 1
C2D13489APH ...... Business Tray Latch (Cashew, non-painted) V00477-V07015 Qty: 2(1)
C2D13489JMN ...... Business Tray Latch (Navy, non-painted) V00477-V07015 Qty: 2(1)
C2D17219PVJ ....... Vanity Pack (Jet) V00477-V08089 Qty: 2(1)
C2D4993VAE ........ Vanity Pack (Parchment) V00477-V08089 Qty: 2(1)
C2D3326K ............. Cross Car Seal-Front V00477-V09995 Qty: 1
(1) One set per LWB vehicle; depending on color.

** Locally-sourced Loctite® 406; one 20g bottle is sufficient for 200 vehicle repairs.
*** Loctite 272 (50ml) or 263 (50ml) or 3M Rite-Lok RT01 (50ml) thread locking compound is required for the front and rear blind repairs. The Loctite thread locking compound will cover the repair of up to 200 vehicles and should be claimed under 'Other'.
If Loctite 406 and any of the other four thread locking compounds are required, a maximum allowance of $0.45 has been set on the system to cater for both and should be claimed under 'Other'.
NOTE: A sufficient quantity of Owner's Handbooks has been sent directly to dealers free of charge.

**** JJM 18 02 34 111 ...... Owner's Handbook (NAS English)
**** JJM 20 02 34 111 ...... Owner's Handbook (NAS Canadian French)
**** Unsold US vehicles only eligible for UPS3110 (K070) must have Owner's Handbook JJM 18 02 34 112 installed in place of JJM 18 02 34 111 after completion of the rework action detailed in Technical Bulletin UPS3110.
NOTE: Dealers will receive an initial allocation automatic shipment of the following parts. Once this initial allocation is depleted, order subsequent inventory through Jaguar Parts Operations in the normal manner. Quantity shown is for each affected vehicle (if necessary), not  the quantity in the initial allocation shipment. Refer to Parts ALERT JA10PA-16/JA10PA-16C.
PARTS INFORMATION

FN106046K ............ Fixing Nuts V00477-V04369 Qty: 2
C2D19247............... Audio Control Module (ACM) V00477-V05279 Qty: 1
C2D18561............... Blind Feet-LH V00477-V06000 Qty: 2
V06001-V10049 Qty: 1 (as req'd)
C2D18562............... Blind Feet-RH V00477-V06000 Qty: 2
V06001-V10049 Qty: 1 (as req'd)
C2D5752................. Sight Shield-LH V00477-V07499 Qty: 1
C2D5751................. Sight Shield-RH V00477-V07499 Qty: 1
C2D18571............... Front Blind Motor Bracket V00477-V08100 Qty: 1
C2D18572............... Rear Blind Motor Bracket V00477-V10285 Qty: 1
Other ...................... Loctite 406 (20g) sealant V00477-V09995 Qty: 1(1)
Other ...................... Loctite 263 (50ml) thread locking compound V00477-V10285 Qty: 1(2)
Other ...................... Loctite 272 (50ml) thread locking compound V00477-V10285 Qty: 1(2)
Other ...................... 3M Rite-Lok RT01 (50ml) thread locking compound V00477-V10285 Qty: 1(2)
* One set per LWB vehicle; depending on color.
(1) Locally-sourced Loctite® 406; one 20g bottle is sufficient for 200 vehicle repairs.
(2) Loctite 272 (50ml) or 263 (50ml) or 3M Rite-Lok RT01 (50ml) thread locking compound is required for the front and rear blind repairs. The Loctite thread locking compound will cover the repair of up to 200 vehicles and should be claimed under 'Other'.

If Loctite 406 and any of the other four thread locking compounds are required, a maximum allowance of $0.45 has been set on the system to cater for both and should be claimed under 'Other'.
NOTE: A sufficient quantity of Owner's Handbooks has been sent directly to dealers free of charge.

**** JJM 18 02 34 111 ...... Owner's Handbook (NAS English)
**** JJM 20 02 34 111 ...... Owner's Handbook (NAS Canadian French)
**** Unsold US vehicles only eligible for UPS3110 (K070) must have Owner's Handbook JJM 18 02 34 112 installed in place of JJM 18 02 34 111 after completion of the rework action detailed in Technical Bulletin UPS3110.
NOTE: The following parts should be ordered through Jaguar Parts Operations in the normal manner. Quantity shown is for each affected vehicle.
PARTS INFORMATION

C2P10363............... PAS Fluid V00477 - V02989 Qty: 2
H8-90...................... Interstate Battery (obtained locally) V00477 - V06854 Qty: 1

TOOLS

CAUTION: It is imperative that K064 IDS Care Points, pages i - iv, be read in its entirety before proceeding with any IDS work indicated within. Failure to follow these instructions will greatly impact the level of success when performing this repair.
NOTE: All costs resulting from failure to follow all the guidance in this bulletin may result in nonpayment of any and all repairs.

Genuine IDS Toughbook© CF18/CF19 meeting standards published in the current IDS/SDD Maintenance Guide with the latest DVD, Calibration, and As-Built files; software first available on IDS-DVD124_V6.01, Calibration File 58, and As-Built v58

Jaguar-approved Midtronics Vehicle Power Supply

Three (3) 1 - 4GB USB memory sticks (two with at least 256MB free space; one with MP3/WAV/AAC audio files)

WARRANTY

NOTE: Always check DDW to verify that the vehicle is affected by this Service Action prior to undertaking any repairs. Repair procedures are under constant review and therefore times and prices are subject to change; those quoted here must be taken as guidance only. Always refer to DDW to obtain the latest repair time.

Warranty claims should be submitted quoting the Program Code 'K064'  , Option Code 'X'  along with the relevant SROs and parts. The Option Code which contains drive in/drive out and may only be claimed if the vehicle is brought back into the workshop for this action alone to be undertaken.

This Service Action is valid for a limited time only and will expire 31 October 2014  . All Warranty claims prior to this date must be submitted for payment within 30 days of completion of the repair.

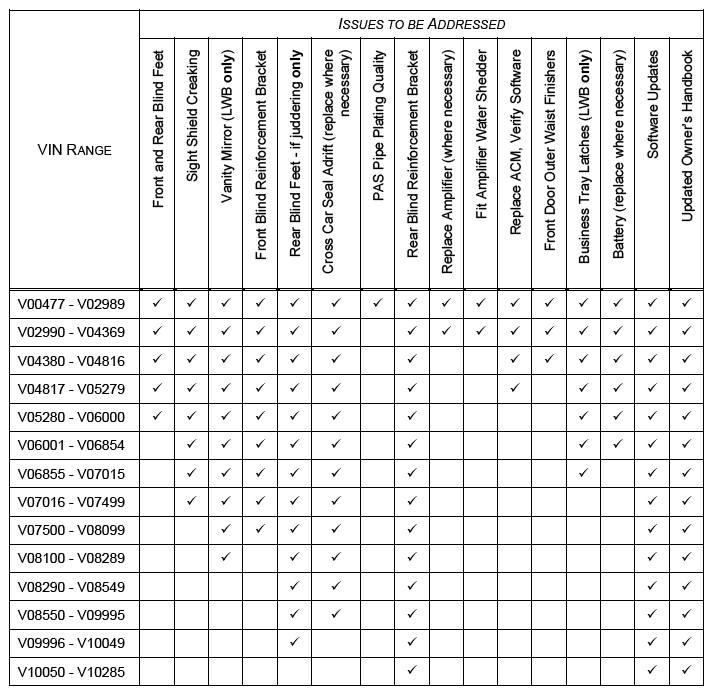

G08777712

WARRANTY INFORMATION - SRO NUMBERS AND TIME

WARRANTY INFORMATION - SRO NUMBERS AND TIME

REPAIR DESCRIPTION VIN RANGE SRO TIME (HOURS)
Replace power assist steering pipe - LHD V00477 - V02989 57.15.29 1.80
Water test and check amplifier for water ingress - no further action V00477 - V04369 10.10.99 0.20
Replace amplifier (if required) V00477 - V04369 86.50.67 0.40
Fit water shedder V00477 - V04369 76.20.19 0.20
Remove and replace front door outer waist finisher - both sides V00477 - V04816 76.31.58 0.30
Roof blind rework V00477 - V06000 76.95.76 1.80
Battery test (if required) V00477 - V06854 86.15.02 0.20
Renew battery V00477 - V06854 86.15.01 0.30
Business tray latch renew V00477 - V07015 76.14.16 0.20
Roof blind rework V06001 - V07499 76.95.77 1.60
Roof blind rework V07500 - V08099 76.95.78 1.50
Replace front roof blind motor and casting assembly (if required) V00477 - V08099 76.95.81 0.50
Replace rear roof blind motor and casting assembly (if required) V00477 - V10285 76.95.81 0.50
Replace both roof blind motor and casting assembly (if required) V00477 - V08099 76.95.82 0.70
Check and reseal front and rear cross car seals V00477 - V09995 76.95.74 0.20
Check and replace front cross car seal (if required) V00477 - V09995 76.81.47 0.20
Check and replace rear cross car seal (if required) V00477 - V09995 76.81.48 0.20
Check and replace front and rear cross car seals (if required) V00477 - V09995 76.81.49 0.30
Roof blind rework (headlining already lowered) V08100 - V10285 76.95.79 1.00
Lower headlining and carry out roof blind rework V08100 - V10285 76.95.80 1.40
Enhancement program software download-with audio control module replacement V00477 - V05279 86.94.36 1.90
Enhancement program software download-without audio control module replacement V05280 - V10285 86.94.24 1.60
Drive in/drive out V00477 - V10285 10.10.10 0.10
NOTE: The roof rework times include individual times that are not broken out; these times include time for the vanity unit, sight shields, blind feet, etc.

WARRANTY INFORMATION - PARTS/QUANTITIES*

*COMPLETE LIST MAY NOT BE REQUIRED FOR ALL VEHICLES

WARRANTY INFORMATION - PARTS/QUANTITIES

REPAIR DESCRIPTION VIN RANGE PART NO. QTY/COST
PAS Pipe - LHD V00477 - V02989 C2D18856 1
PAS Fluid V00477 - V02989 C2P10363 2
Amplifier - 600W (as required) V00477 - V04369 C2D17657 1
Amplifier - 1200W (as required) V00477 - V04369 C2D17658 1
Water Shedder (amp LH) V00477 - V04369 C2D18549 1
Fixing Nuts V00477 - V04369 FN106046K 2
Outer Waist Finisher Assembly - RH V00477 - V04816 C2D17930 1
Outer Waist Finisher Assembly - LH V00477 - V04816 C2D17931 1
Audio Control Module (ACM) V00477 - V05279 C2D19247 1
Blind Feet - LH V00477 - V06000 C2D18561 2
Blind Feet - RH V00477 - V06000 C2D18562 2
Battery (as required) V00477 - V06854 H8-90 1
Business Tray Latch (Cashew) V00477 - V07015 C2D13489APH 2
Business Tray Latch (Ivory) V00477 - V07015 C2D13489NUG 2
Business Tray Latch (Navy) V00477 - V07015 C2D13489JMN 2
Business Tray Latch (Black) V00477 - V07015 C2D13489PVJ 2
Sight Shield - LH V00477 - V07499 C2D5752 1
Sight Shield - RH V00477 - V07499 C2D5751 1
Front Blind Motor Bracket V00477 - V08099 C2D18571 1
Vanity Unit - Canvas V00477 - V08289 C2D17219 AMN 2
Vanity Unit - Ivory V00477 - V08289 C2D17219 NUG 2
Vanity Unit - Jet V00477 - V08289 C2D17219 PVJ 2
Vanity Unit - Parchment V00477 - V08289 C2D4993 VAE 2
Front Roof Blind Motor and Casting Assembly (as required) V00477 - V07564 C2D16892 1
Front Roof Blind Motor and Casting Assembly (as required) V07565 - V08099 C2D19096 1
Blind Feet - LH (as required) V06001 - V10049 C2D18561 1
Blind Feet - RH (as required) V06001 - V10049 C2D18562 1
Cross Car Seal - Front (as required) V00477 - V09995 C2D3326K 1
Cross Car Seal - Rear (as required) V00477 - V09995 C2D5746 1
Rear Blind Motor Bracket V00477 - V10285 C2D18572 1
Rear Roof Blind Motor and Casting Assembly (as required) V00477 - V07564 C2D16891 1
Rear Roof Blind Motor and Casting Assembly (as required) V07565 - V10285 C2D19095 1
Loctite 406 (20gm) adhesive sealant(1) (as required) V00477 - V09995 Other $0.17
Loctite 272 (50ml) thread locking compound (1) V00477 - V10285 Other $0.25
Loctite 263 (50ml) thread locking compound (1) V00477 - V10285 Other $0.25
3M Rite-Lok RT01 (50ml) thread locking compound *** V00477 - V10285 Other $0.16
Vehicle Handbook(2) V00477 - V10285 JJM 18 02 34 111 -
Vehicle Handbook (Canadian French)(2) V00477 - V10285 JJM 20 02 34 111 -
Vehicle Handbook(3) V00477 - V10285 JJM 18 02 34 112 -
* Locally-sourced Loctite® 406; one 20g bottle is sufficient for 200 vehicle repairs.
(1) Loctite 272 (50ml) or 263 (50ml), or 3M Rite-Lok RT01 (50ml) thread locking compound is required for the front and rear blind repairs. The Loctite thread locking compound will cover the repair of up to 200 vehicles and should be claimed under 'Other'.

If Loctite 406 and any of the other four thread locking compounds are required, a maximum allowance of $0.45 has been set on the system to cater for both and this should be claimed under 'Other'.
(2) Vehicle Handbooks supplied directly to each dealer.
(3) Unsold US vehicles eligible for UPS3110 (K070) must have Owner's Handbook JJM 18 02 34 112 installed in place of JJM 18 02 34 111 after completion of the rework action detailed in Technical Bulletin UPS3110. Vehicle Handbooks supplied directly to each dealer.

Normal Warranty policies and procedures apply

REPAIR PROCEDURE LIST

REPAIR PROCEDURE LIST

Procedure 1..... V00477 - V04816: Replace Front Door Waist Finishers
Procedure 2..... V00477 - V07015; LWB Only: Replace Business Tray Latches
Procedure 3..... V00477 - V09995: Check Front and Rear Cross Seals
Procedure 4..... V00477 - V08099: Check Front Blind Operation
......................... V00477 - V10049: Check Front and Rear Blind Operation
Procedure 5..... Lower Full Headliner
Procedure 6..... Lower RH-side Headliner
Procedure 7..... V00477 - V08100: Install Reinforcement Bracket to Front (LH) Motor
Procedure 8..... V00477 - V10285: Install Reinforcement Bracket to Rear (RH) Motor
Procedure 9..... V00477 - V06000: Replace All Blind Feet
V06001 - V10049: Replace Rear Blind Feet (as required)
Procedure 10... V00477 - V08100: Replace Front Motor and Casting Assembly (only  if noisy and inoperative [not juddering]); includes installation of new blind feet
......................... V00477 - V10285: Replace Rear Motor and Casting Assembly (only  if noisy and inoperative [not juddering]); includes installation of new blind feet
Procedure 11... V00477 - V08100: Remove Cassette Mounting Nuts, Glass Alignment Pegs; Re-Torque Fixings
......................... V08101 - V10285 Only if full headliner has been lowered:  Remove Cassette Mounting Nuts, Glass Alignment Pegs; Re-Torque Fixings
Procedure 12... V00477 - V10049: Check Front and Rear Blind Operation After Reworks
Procedure 13... V00477 - V07500: Replace Roof Sight Shields
Procedure 14... V00477 - V10049: Degrease the Rear Guides (if rear blind is juddering), Replace Rear Blind Feet (if not done under Repair Procedure 9)
Procedure 15... V00477 - V08089 LWB Only: Replace Rear Seat Vanity Mirrors
Procedure 16... V00477 - V04369: Inspect/Replace Audio Unit Amplifier, Install Water Shedder
Procedure 17... V00477 - V10285: Software Updates
Procedure 18... V00477 - V02989: Replace Power Assist (PAS) Steering Pipe
Procedure 19... V00477 - V06854: Replace Battery (only if necessary)
Procedure 20... V00477 - V10285: Post Enhancement Program Quality Checks

PRE-REPAIR PROCEDURES

NOTE: Prior to commencing Repair Procedures 1 - 20, verify required parts are available. In addition, perform the following pre-repair procedures to determine if any additional components (Panoramic roof blind casting kits, ACM) are required and customer settings (radio, CD) are available at the completion of the repair procedures.
  1. Record all radio presets (AM/FM/SDARS) and Navigation search area.
  2. Eject CD from CD player.
    NOTE: Refer to Parts  section for Express Delivery information.
  3. Verify Panoramic roof front and rear sun blind operation (Repair Procedure 4).
    • If necessary, order appropriate parts.
  4. V00477 - V04639: inspect Audio Unit Amplifier for water ingress (Repair Procedure 16).
    • If necessary, order appropriate part.
  5. V00477 - V05279 only: ensure a new Audio Control Module (ACM) is available.
  6. V00477 - V06854 only: refer to the Battery Care Manual and determine the battery condition.
    • Record Midtronics tester code in vehicle file.
    • If 'Replace Battery' or 'Bad Cell Battery' is displayed, note it on the repair order and continue with all the necessary Repair Procedures. If required, refer to Workshop Manual section 414-01 and replace the vehicle battery as part of Repair Procedure 18.
  7. Ensure K064 IDS Care Points  (attached) has been reviewed.
  8. Ensure the correct, updated Owner's Handbook is available.

REPAIR PROCEDURE 1: V00477 - V04816

CAUTION: Ensure care is taken to avoid damage to the body work.
  1. Open left-hand (LH) front door.
  2. Lower door glass.
  3. Remove the inner cap on the front door pillar.

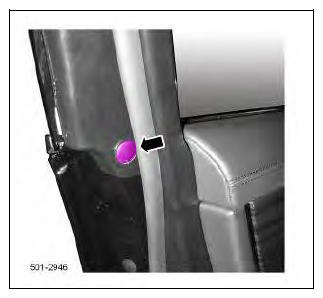

    G08777713

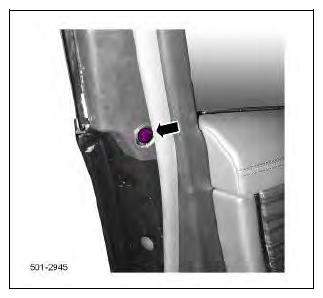

  4. Remove the Torx bolt.
    G08777714
  5. Apply protective tape to the gloss black portion of the door.
    CAUTION: Slightly twist the finisher past the gloss black portion of the door to prevent damage.
  6. Lift and twist the rear edge of the finisher past the gloss black portion of the door.

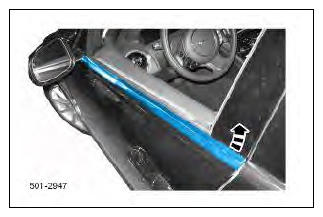

    G08777715

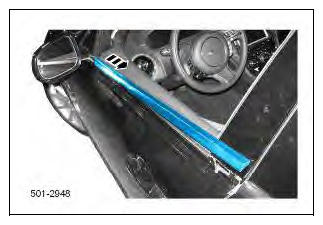

  7. Slide the front of the finisher back and out from under the door mirror.
    G08777716
  8. Using a diluted soap and water solution, fully lubricate the mirror and waist area.
    • Lubricate the upright flange running the length of the door outer panel which the outer waist finisher rests on.
    • Lubricate the local area at the bottom of the cheater part of the door mirror where the waist finisher enters.
  9. Install the new waist finisher.
    • Slide the front of the finisher forward and under ((1)) the rear edge of the door mirror.
    • Twist and lower ((2)) the rear edge of the finisher past the gloss black portion of the door.

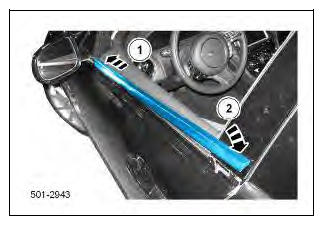

      G08777717
  10. Remove protective tape from the gloss black portion of door.
  11. Close door.
  12. Align the front and rear edges of the finisher.
    • Open door.
    • Install Torx bolt; tighten to 1.1Nm (0.80lbf ft)  .
  13. Install inner cap.
  14. Close window.
  15. Close door.
  16. Verify finisher fit.
  17. Repeat steps  1 -  16 to right-hand (RH) front door.
  18. Continue to next appropriate Repair Procedure.

REPAIR PROCEDURE 2: V00477 - V07015; LWB ONLY

  1. Open the LH business tray.
    NOTE: If present, the washer behind the latch must be installed in the same position on the new latch.
  2. Remove the LH business tray latch:
    • Remove the bolt.

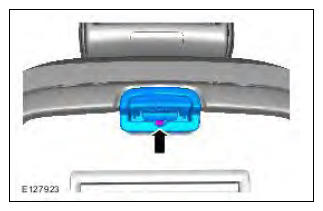

      G08777718
  3. Install the new LH business tray latch:
    • Install the bolt.
  4. Repeat steps  1 -  3 on the RH business tray.
  5. Continue to next appropriate Repair Procedure.

REPAIR PROCEDURE 3: V00477 - V09995

CAUTION: Ensure the vehicle interior is protected from damage, staining, or dirt.
  1. Turn ignition 'ON'.
  2. Open the Panoramic roof opening panel to the high-tilt position:
    • Press the Panoramic roof button to the tilt position.
    • Press the Panoramic roof button a second time to begin its slide rearwards.
    • Press the Panoramic roof button a third time once the opening panel reaches its highest position.

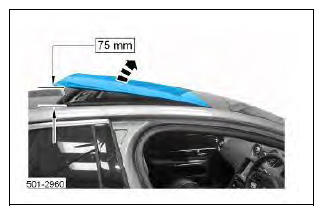

      G08777719
  3. Turn ignition 'OFF'.
    NOTE: If seal is distorted, using a suitable tool make sure that the seal is returned to the original shape.
  4. Inspect the rear cross car seal (affixed to the front of the rear fixed roof glass panel) adhesion:
    • If the seal has less than 15cm (6.0in)  of continuous non-adhesion, continue to step 5.
    • If the seal has more than 15cm (6.0in)  of continuous non-adhesion, continue to step  9 to replace the seal.
    • If the seal does not show signs of non-adhesion, continue to step  12.
      G08777720

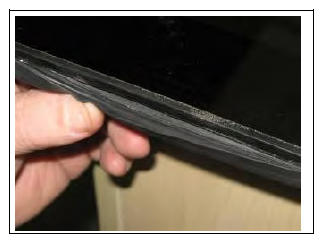

  5. Wipe the affected non-adhered areas with a suitable alcohol wipe; allow to dry.
    CAUTION: Ensure the front edge of the seal is not contaminated with the adhesive.

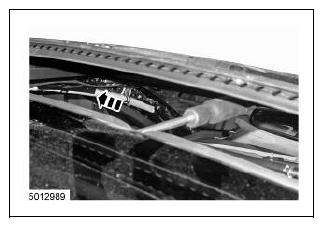

  6. Beginning at the adhered position, apply a 25mm (1.0in)  bead of Loctite® 406 adhesive to the contact surface of the cross car seal:
    • Use a suitable tool to align the seal to the glass, applying gentle upward pressure for 20 seconds.
    • Allow at least 10 minutes for adhesive to dry completely.
      G08777721
  7. Repeat step  6 for all affected non-adhered areas.
  8. Continue to step  12.
    CAUTION: Use care to remove the seal, stopping the tape from sticking to the vehicle.

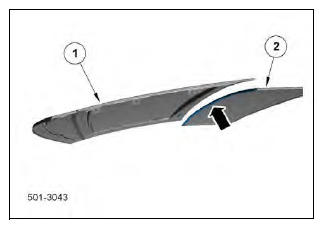

    NOTE: '(1)' is the roof opening panel; '(2)' is the rear fixed glass panel.
  9. Remove the rear cross car seal from the rear fixed glass panel.
    G08777722
  10. Wipe the affected non-adhered areas with a suitable alcohol wipe; allow to dry.
    NOTE: When installing the seal, remove the backing tape from the new seal in 20cm (8.0in) increments.
  11. Install the seal to the end of the glass:
    • Use a suitable tool to align the seal to the glass, applying gentle upward pressure until the seal has been installed the full length of the glass.
      G08777723
  12. Turn ignition 'ON'.
  13. Fully open the Panoramic roof glass panel.
  14. Turn ignition 'OFF'.
  15. Inspect the front cross car seal (affixed to the rear of the front fixed glass panel) adhesion:
    • If the seal has more than 15cm (6.0in)  of continuous non-adhesion, continue to step  20 to replace the seal.
    • If the seal has less than 15cm (6.0in)  of continuous non-adhesion, continue to step 16.
    • If the seal does not show signs of non-adhesion, continue to next appropriate Repair Procedure.
      G08777724

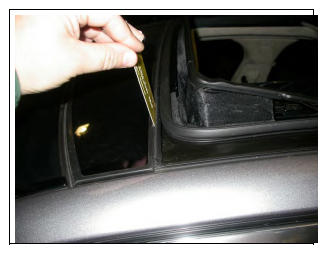

  16. Wipe the affected non-adhered areas with a suitable alcohol wipe; allow to dry.
    CAUTION: Ensure the rear edge of the seal is not contaminated with the adhesive.
  17. Beginning at the adhered position, apply a 25mm (1.0in)  bead of Loctite® 406 adhesive to the contact surface of the cross car seal:
    • Use a suitable tool to align the seal to the glass, applying gentle upward pressure for 20 seconds.
    • Allow at least 10 minutes for adhesive to dry completely.

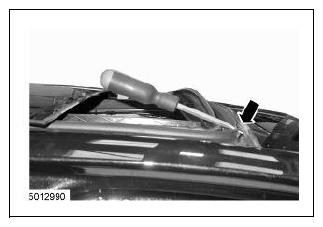

      G08777725
  18. Repeat step  16 for all affected non-adhered areas.
  19. Continue to step  23.
    CAUTION: Use care to remove the seal, stopping the tape from sticking to the vehicle.
    NOTE: '(1)' is the roof opening panel; '(2)' is the front fixed glass panel.

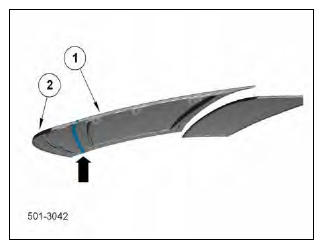

  20. Remove the front cross car seal from the front fixed glass panel.
    G08777726
  21. Wipe the affected non-adhered areas with a suitable alcohol wipe; allow to dry.
    NOTE: When installing the seal, remove the backing tape from the new seal in 20cm (8.0in) increments.

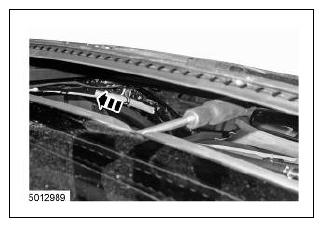

  22. Install the seal to the end of the glass:
    • Use a suitable tool to align the seal to the glass, applying gentle upward pressure, until the seal has been installed the full length of the glass.

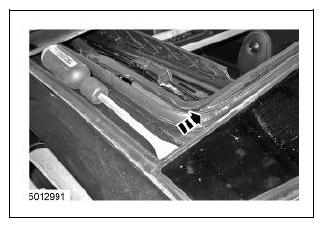

      G08777727
  23. Continue to next appropriate Repair Procedure.

PANORAMIC ROOF BLIND OPERATION CHECK/REPAIR PROCEDURE CHART

PANORAMIC ROOF BLIND OPERATION CHECK/REPAIR PROCEDURE CHART

VIN RANGE PROCESS PROCEDURE(S) TO PERFORM
V00477 - V06000 Verify Panoramic roof front and rear blind operation (function, noise). 4
If the blinds operate normally, install a reinforcement bracket to the front and rear panoramic roof blind motors. 5 + 7 + 8
If a blind does not function and a ratcheting noise can be heard from the motor, replace the motor and casting. 5 + 10
Remove Panoramic roof cassette mounting nuts and glass alignment pegs; torque cassette fixings. 11
Replace the front and rear blind feet. 9
Replace sight shields. 13
After completing panoramic roof reworks and prior to installing the headliner, verify rear blind operation (function, noise). If the rear blind is juddering, degrease the rear guides. 12 + 14
V06001 - V07499 Verify Panoramic roof front and rear blind operation (function, noise). 4
If the blinds operate normally, install a reinforcement bracket to the front and rear panoramic roof blind motor. 5 + 7 + 8
If a blind does not function and a ratcheting noise can be heard from the motor, replace the motor and casting. 5 + 10
Remove Panoramic roof cassette mounting nuts and glass alignment pegs; torque cassette fixings. 11
Replace sight shields. 13
After completing panoramic roof reworks and prior to installing the headliner, verify rear blind operation (function, noise). If the blind is juddering, degrease the rear guides. 12 + 14
V07500 - V08099 Verify Panoramic roof front and rear blind operation (function, noise). 4
If the blinds operate normally, install a reinforcement bracket to the front and rear panoramic roof blind motor. 5 + 7 + 8
If a blind does not function and a ratcheting noise can be heard from the motor, replace the motor and casting. 5 + 10
Remove Panoramic roof cassette mounting nuts and glass alignment pegs; torque cassette fixings. 11
After completing panoramic roof reworks and prior to installing the headliner, verify rear blind operation (function, noise). If the blind is juddering, degrease the rear guides. 12 + 14
V08100 - V10049 Verify Panoramic roof rear blind operation (function, noise). 4
If the blind operate normally, install a reinforcement bracket to the rear panoramic roof blind motor. 6 + 8
If a blind(s) does not function and a ratcheting noise can be heard from the motor, replace the motor and casting. 5 + 10
After completing panoramic roof reworks and prior to installing the headliner, verify rear blind operation (function, noise). If the blind is juddering, degrease the rear guides. 12 + 14
V10050 - V10285 Verify Panoramic roof rear blind operation (function, noise). 4
If the blind operates normally, install a reinforcement bracket to the rear blind motor. 6 + 8
If the blind does not operate normally and a ratcheting noise can be heard from the rear motor, replace the motor and casting. 5 + 10
After completing panoramic roof reworks and prior to installing the headliner, verify rear blind operation. 12
* Panoramic roof blind motor and casting should be replaced ONLY  if the blind does not open/close and a  ratcheting noise is heard.

PROCEDURE 4: V00477-V10285

  1. Verify front and rear panoramic roof blind operation.
  2. Continue to next appropriate Repair Procedure.

PROCEDURE 5: V00477-V10285

NOTE: LH motor is front blind; RH motor is rear blind.
  1. Refer to Workshop Manual section 501-05 to remove the following:
    • Both sun visors
    • Both sun visor clips.
    • Both A-pillar trim panels.
    • Both B-pillar upper trim panels.
    • Both C-pillar upper trim panels.

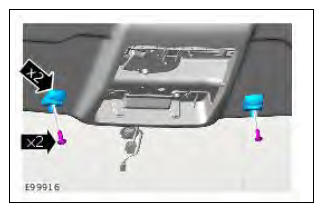

      G08777728

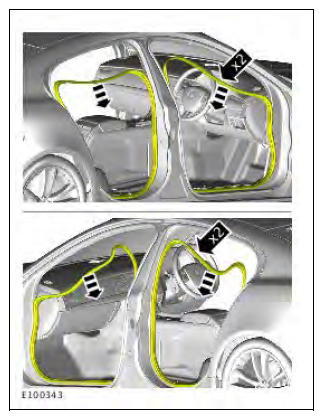

  2. Release all door seals. (RHD shown; LHD similar)

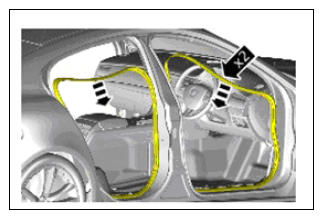

    G08777729
  3. Release both headliner bolts
    G08777730
    NOTE: Do not remove the grab handles from the headliner.

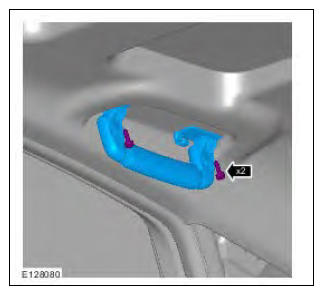

  4. Release both grab handles:
    • Loosen both Torx bolts from the roof mounting bracket, but do not remove them fully. Leave them threaded to the plastic spacer so the grab handle remains with the headliner.
      G08777731
  5. Release the headliner:
    • Release the three clips.
      G08777732
    CAUTION: Ensure the headliner is fully supported and that the electrical harnesses are not damaged during headliner lowering.
  6. With assistance, lower the headliner:
    • Release the 10 clips.
      G08777733
  7. Continue to next appropriate Repair Procedure.

PROCEDURE 6: V00477-V10285

NOTE: LH motor is front blind; RH motor is rear blind.
  1. Refer to Workshop Manual section 501-05 to remove the following:
    • RH sun visor
    • Sun visor clips.
    • RH A-pillar trim panel.
    • RH B-pillar upper trim panel.
    • RH C-pillar upper trim panel.
      G08777734
  2. Release RH door seals. (RHD shown, LHD similar)
    G08777735

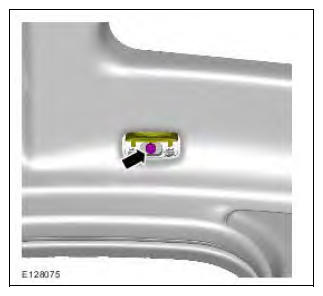

  3. Release RH headliner bolt.
    G08777736
    NOTE: Do not remove the RH grab handle from the headliner.
  4. Release RH grab handle:
    • Loosen both Torx bolts from the roof mounting bracket, but do not remove them fully. Leave them threaded to the plastic spacer so the grab handle remains with the headliner.

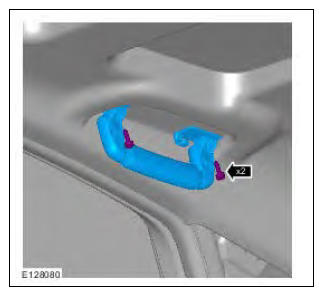

      G08777737
  5. Release the headliner:
    • Release the three clips.

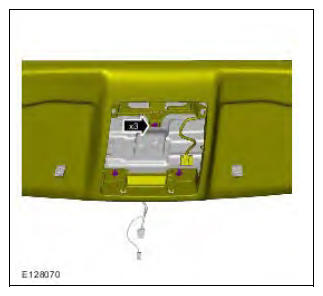

      G08777738
    CAUTION: Ensure the headliner is fully supported and that the electrical harnesses are not damaged during headliner lowering.
  6. With assistance, lower the RH side of the headliner:
    • Release the clips.

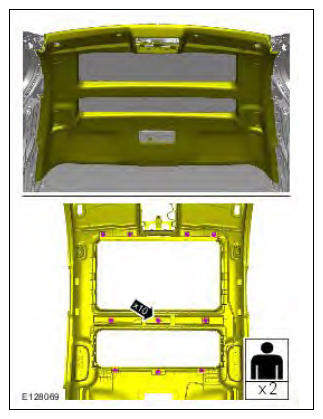

      G08777739
  7. Continue to next appropriate Repair Procedure.

REPAIR PROCEDURE 7: V00477 - V08099

NOTE: New motor and casting assemblies have the reinforcement brackets already installed. If the vehicle has had a new motor and casting assembly replaced as part of a previous repair, the reinforcement bracket may already be installed. Do not install a bracket in this case.
NOTE: Motor shown removed for clarity; motor located above LH rear grab handle.
  1. Open Panoramic roof front blind.

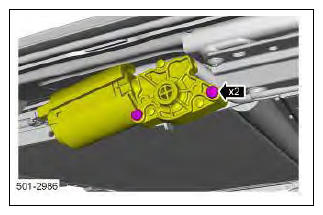

  2. Remove the two screws from the Panoramic roof front (LH) blind motor.
    G08777740
    CAUTION: Ensure the reinforcement bracket is installed as shown.
    CAUTION: Ensure the motor is located correctly on the dowels.

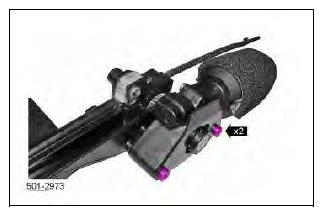

  3. Install the reinforcement bracket to the motor:
    • Apply Loctite® 263 to the end of the threads of the Torx bolts.
    • Install and torque bolts to 4Nm (3lbf ft)  .

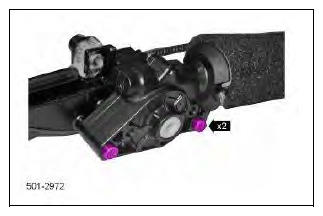

      G08777741
  4. Continue to next appropriate Repair Procedure.

PROCEDURE 8: V00477 - V10285

NOTE: Panoramic roof shown removed for clarity.
NOTE: The RH rear grab handle must be removed for standard wheelbase (SWB) vehicles.
NOTE: Rear (RH) motor located above RH rear grab handle.
  1. Open Panoramic roof rear sun blind.
  2. Remove Panoramic roof rear (RH) blind motor:

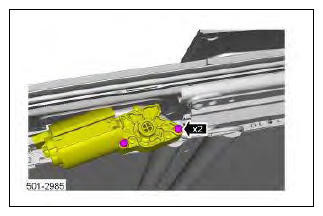

    • Remove two Torx bolts.
      G08777742
    CAUTION: Ensure any excess glue is removed from the casting prior to installation of the reinforcement bracket.
  3. Inspect the casting assembly for excess glue; carefully remove as necessary.
    NOTE: New motor and casting assemblies have the reinforcement brackets already installed. If the vehicle has had a new motor and casting assembly replaced as part of a previous repair, the reinforcement bracket may already be installed. Do not install a bracket in this case.
    NOTE: Ensure the bracket is fully seated before reinstalling the motor.
  4. Using pliers, squeeze the bracket into position to install the reinforcement bracket.

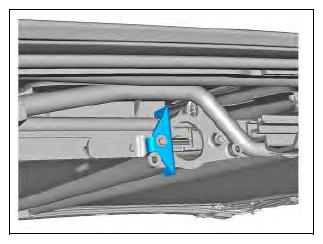

    G08777743
    CAUTION: Ensure the motor is located correctly on the dowels.
    CAUTION: Ensure the harness is located correctly above the motor; failure to do so will prevent the motor from locating correctly.
  5. Install the motor:
    • Apply Loctite® 263 to the end of the threads of the Torx bolts.
    • Install and torque bolts to 4.0Nm (3.0lbf ft)  .
  6. Continue to next appropriate Repair Procedure.
    G08777744

REPAIR PROCEDURE 9: V00477 - V10049

NOTE: V00477 - V06000: replace all blind feet;
NOTE: V06001 - V10049: replace rear blind feet only if juddering (refer to repair procedure 14 )
NOTE: Headliner shown installed; procedure may be performed with the headliner lowered.
NOTE: Refer to Repair Procedure 10, steps  1,  2,  3,  4,  23,  24,  29, and  30 for blind feet installation assistance.

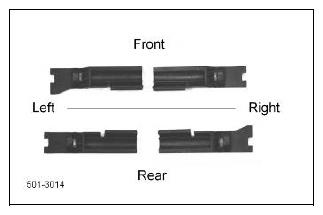

NOTE: Figure depicts the installation position of the blind feet.
G08777745
  1. Turn ignition 'ON'.
  2. Open the Panoramic roof opening panel to the full tilt position.

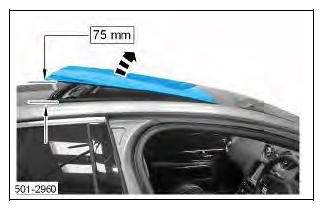

    G08777746
  3. Open the Panoramic roof rear blind.
  4. Turn ignition 'OFF'.

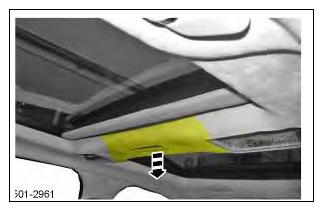

  5. Release the center headliner section:
    • Release the three clips.
      G08777747
  6. Release the Panoramic roof front blind:
    • Rotate the blind upwards to release the blind from the blind feet.
    • Allow the blind to retract slowly into the void above the headliner.
      G08777748

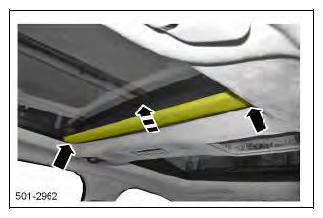

    CAUTION: If any blind foot is broken, ensure all debris is removed from the blind guide.

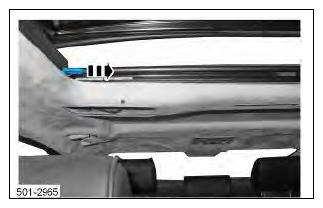

  7. Remove the front sun roof blind feet: (RH shown, LH similar)
    • Note the position of the blind feet prior to removal.
    • Firmly pull the RH blind foot towards the center of the vehicle.
      G08777749
  8. Repeat step  6 to the LH blind foot.
    CAUTION: The blind feet are 'handed' (LH/RH) and marked as such; ensure the blind feet are installed in the correct position. Failure to follow this may result in damage to the vehicle.
    NOTE: The Panoramic roof front and rear blind feet are installed to opposite sides of the vehicle. The front blind LH foot is installed to the RH side of the vehicle; the front blind RH foot is installed to the LH side of the vehicle.
  9. Install the RH blind foot: (rear shown, front similar)
    • Locate the blind foot dove tail onto the peg.
    • Press firmly into place (a 'click' should be heard).
    • Using gentle pressure, make sure the foot is correctly located and cannot move (forward, backward, or sideways).
      G08777750
      G08777751
  10. Repeat step  9 to the LH blind foot.
    CAUTION: If the blind feet are incorrectly oriented, the locking tabs will break when the roller blind draw bar is rotated on installation.
    NOTE: Glass panel removed for clarity.

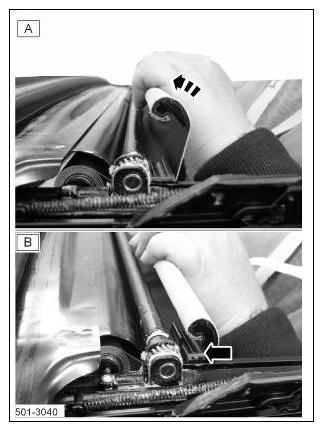

  11. Position the blind for installation:
    • Pull out the blind and rotate to the position shown A.
    • Position the blind above the clip as shown B.
      G08777752
    CAUTION: Excessive force will cause the blind feet to break.
    NOTE: Do not allow blind spring tension to push inward against the blind feet when installing the roller blind draw bar onto the blind feet.
    NOTE: The blind foot trough must remain in line with the draw bar channel bead.
  12. Secure the blind to the blind feet.
    • Locate the blind into the blind foot.
    • Apply gentle pressure.
      G08777753

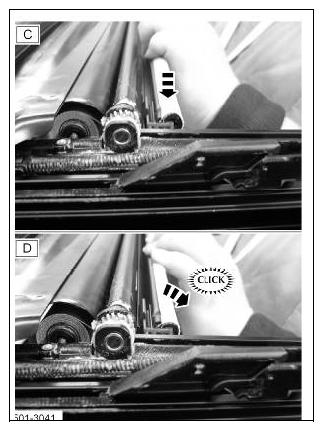

  13. Repeat step  11 to opposite blind foot.
    • Rotate the blind down to locate onto the blind feet.
    CAUTION: The blind feet are 'handed' (LH/RH) and marked as such; ensure the blind feet are installed in the correct position. Failure to follow this may result in damage to the vehicle.
    NOTE: The front and rear Panoramic roof blind feet are installed to opposite sides of the vehicle. The rear blind LH foot is installed to the LH side of the vehicle; the rear blind RH foot is installed to the RH side of the vehicle.
    G08777754
  14. Perform steps  1 -  12 to the Panoramic roof rear blind.
  15. Secure the headliner.
    • Secure the three clips.
  16. Verify Panoramic roof front and rear blind operation.
    • If the rear blind is 'juddering', perform Repair Procedure 14, Degrease the Rear Guides  .
  17. Continue to next appropriate Repair Procedure.

REPAIR PROCEDURE 10: V00477 - V10285

NOTE: Replace blind motors if noisy or inoperative only; if 'juddering', refer to Repair Procedure 14 , Degrease the Rear Guides  .
NOTE: install new front blind motor and casting assembly: V00477 - V08100
NOTE: install new rear blind motor and casting assembly: V00477 - V10285
CAUTION: The roller blind guide will prevent the blind from unwinding; however, the blind must be 'pinned' when the blind is removed.
NOTE: New motor and casting assemblies have the reinforcement brackets already installed.
NOTE: For vehicles from V07565, the blind motor and casting assembly part number has changed; refer to Parts information  for correct part number.

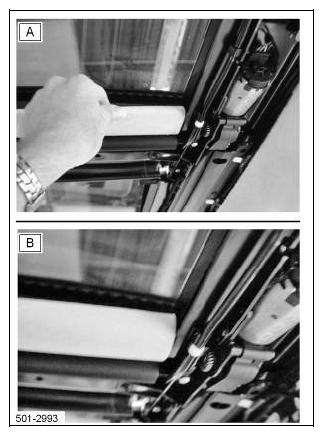

  1. Facing the front blind, unclip the blind draw bar from the plastic blind feet:
    • Rotate the blind upwards (rear edge of draw bar down) to release the locks.
    • Pull the blind towards you and then down and away from the blind feet.
      G08777755

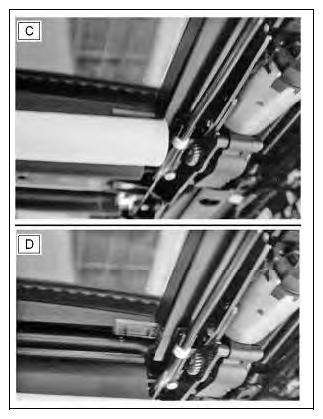

  2. Retract the draw bar back (rolled up) against the blind guide.
    G08777756
    NOTE: Roller blind draw bar shown removed for clarity.
  3. Rotate the roller blind draw bar up to remove it from the blind feet:

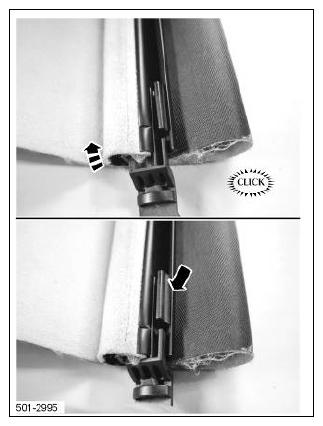

    • A 'click' will be heard from each blind foot when released from the draw bar.
      G08777757

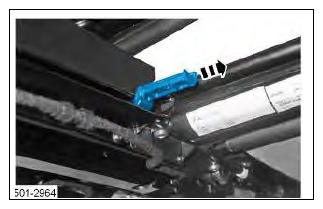

  4. Remove the blind feet from the track:
    • Pull the blind feet towards the center of the vehicle.
      G08777758
    CAUTION: Ensure care is used to properly pin the blind to avoid damage during removal and installation.
    CAUTION: Ensure the opposite side of the blind remains in the casting.
  5. Firmly grasp the roller blind to prevent unwinding.

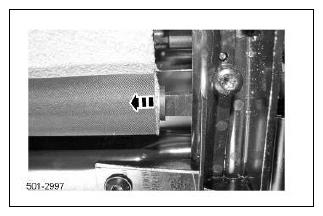

  6. Move the dowel side from the casting by moving the blind towards the lock side.
    G08777759
    CAUTION: Ensure the opposite side of the blind remains in the casting.
  7. While maintaining a firm grip on the blind, move the blind end down and away from the casting.
    G08777760
    CAUTION: The blind must be pinned to hold spring tension prior to removal from the casting. Ensure the blind is fully retracted (rolled up).

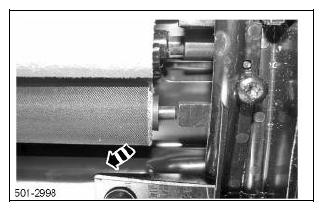

  8. Rotate the blind to view the pinning hole in the roller:
    • The blind shaft must be extended to line up the roller and shaft pinning holes.
      G08777761
    CAUTION: Ensure the roller shaft remains engaged in the casting until pinned; do not over-extend the shaft.

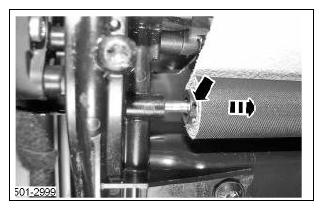

  9. While maintaining a firm grip on the blind, extend the shaft only far enough to expose the pinning hole in the shaft:
    G08777762

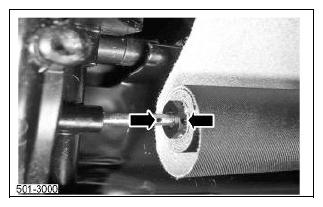

  10. Line up the pinning holes in the shaft and the roller.
    CAUTION: Use only the hardened locking pin supplied in the box with the new casting or an Allen wrench or drill bit to pin the roller to the shaft. Do not use a paper clip.
    NOTE: In the event the blind tension is released, refer to SSM45450, New Jaguar XJ Panoramic Roof Blind Re-tensioning Procedure, to re-tension the blind.

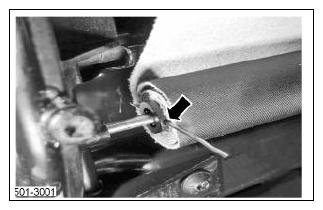

  11. Insert the locking pin through the holes in the roller and the shaft.
    G08777763
  12. Once the pin is installed, the firm grip may be released from the blind.
  13. Perform steps  1 -  12 for the Panoramic roof rear blind.
    NOTE: Drive spindle shown removed from vehicle for clarity.
  14. Remove the front blind drive spindle:
    • Slide the shaft towards the spring side.
    • Remove the shaft from the drive flange.

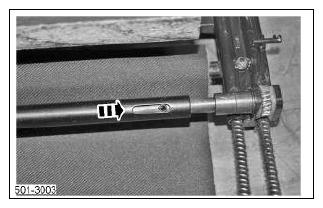

      G08777764
    NOTE: The rear blind drive spindle may be removed from the LH side without removing the aperture trim panel from around the Panoramic roof fixed glass panel.
    NOTE: Aperture trim panel shown removed for clarity.

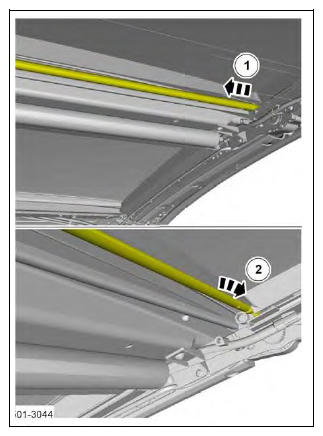

  15. Either using a pair of needle nose pliers to grip the drive spindle flange ((1)) or with a small screw driver to push on the roll pin and move the spindle flange to the left and reposition into the aperture ((2)).
    G08777765
    NOTE: The rear blind drive spindle may be removed from the LH side without removing the aperture trim panel from around the Panoramic roof fixed glass panel.
    NOTE: Aperture trim panel shown removed for clarity.

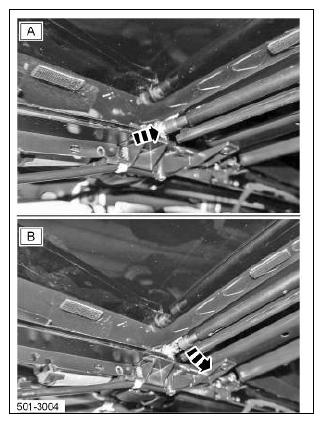

  16. Use a small screwdriver to push on the roll pin:
    • Moving the spindle flange to the right [A].
    • Lower the spindle down/away from the casting [B].
      G08777766
    CAUTION: Use care when removing spring(s) to avoid damage.
    NOTE: If replacing only one casting, remove only the spring from the affected casting.

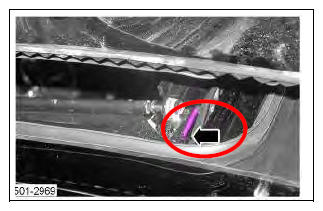

  17. From outside the vehicle, carefully remove the locking slider springs from the roller blind casting arm at the rear of the Panoramic roof panel.
    G08777767
    CAUTION: Ensure the tube remains on the cable until the casting assembly is removed from the vehicle.
  18. Remove the roller blind cable tube retaining fir tree clips from the casting(s) being replaced.
    G08777768

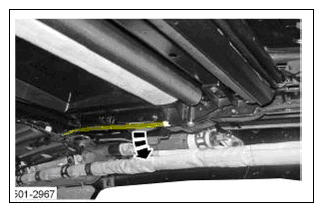

  19. Release the white clip from the casting.

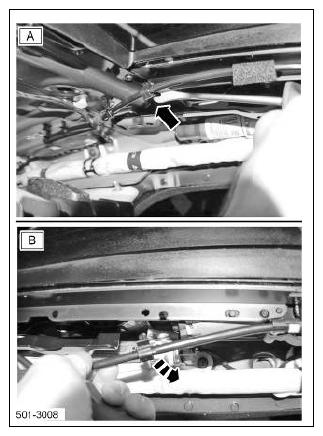

    G08777769

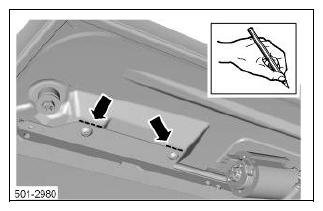

  20. Mark the position of the rear blind track mounting screws to enable installation in the same location.
    G08777770
  21. Remove the T25 Torx screws (SWB: 1; LWB: 2) from the rear blind track:

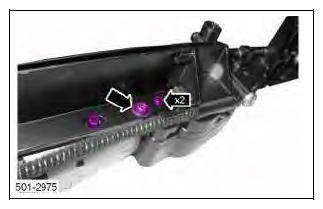

    • Remove the two T15 Torx screws from the roller blind casting to the front track.
    • Remove one T25 Torx screw from the roller blind casting.
    • If replacing both casting assemblies, mark the track and remove the screws from the other casting and rear blind track.

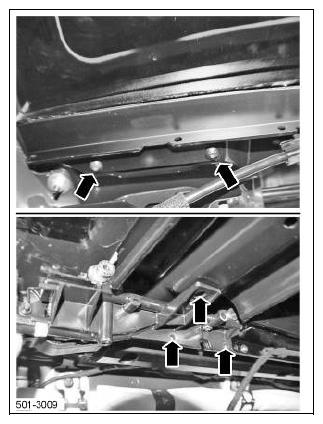

      G08777771
    NOTE: If replacing the rear blind (RH casting) on SWB vehicles, the RH rear grab handle must be removed for access.

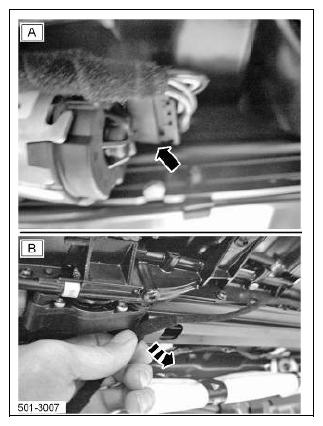

  22. Remove the electrical connector from the blind motor [A]:
    • Move the harness away from the blind casting assembly [B] (may remain clipped into the front blind track).
      G08777772

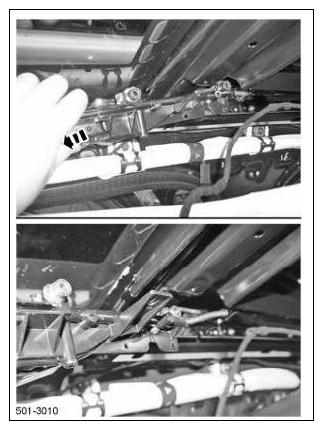

  23. Once the Torx screws have been removed, pull the roller blind casting assembly (with the rear blind track attached) down and rearward to remove it from the vehicle.
    G08777773
  24. Remove the rear blind track:
    • Remove the T15 Torx bolt.
    • Release the two dowels.
    • Release the rear blind track from the cables.
      G08777774
    NOTE: New casting assemblies are not threaded; threads will be cut as the Torx bolt is installed.
  25. Transfer the rear blind track onto the new casting assembly:
    • Position the track over the cables.
    • Locate on the two dowels.
    • Install the T15 Torx bolt; tighten to 3.5Nm (2.6lbf ft)  .
    • Reinstall the cable guide tube to the new casting assembly and secure the white clip.
      G08777775
    NOTE: Ensure the rear track is aligned with the alignment marks.
    NOTE: Ensure the dovetail on the cable is facing downwards.
  26. Install the new casting assembly:

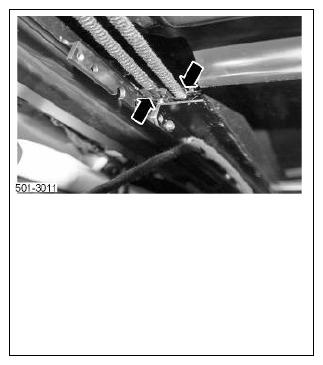

    • Ensure the drive cables are correctly routed into the front blind track.
    • Align the datum pegs on the casting into the holes in the front blind track.
    • Connect the blind drive motor electrical connector.
    • Install the two T15 Torx screws; tighten to 3.5Nm (2.6lbf ft)  .
    • Install the T25 Torx screws into the rear blind track/casting; tighten to 7Nm (5.2lbf ft)  .
    • Secure the white clip.
    • Secure the three cable guide fir tree clips.
      G08777776
  27. If required, repeat steps  17 -  26 to the opposite side.
    NOTE: The front and rear Panoramic roof blind feet are installed to opposite sides of the vehicle. The rear blind LH foot is installed to the LH side of the vehicle; the rear blind RH foot is installed to the RH side of the vehicle.
    NOTE: The roller blind drive cables move independently with the drive spindles removed.
  28. Prior to installing the drive spindles, ensure the blind cable drive blocks are the same distance, (relative to each other) front-to-rear.
    • Install the blind feet on both sides; measure their position to ensure they are at the exact same position, front-to-rear, to ensure the blind is being pulled out evenly
    • Align the blind LH foot dove tail notch onto the LH cable drive block; repeat for RH blind foot.
      G08777777
    CAUTION: The blind feet are 'handed' (LH/RH) and marked as such; ensure the blind feet are installed in the correct position. Failure to follow this may result in damage to the vehicle.
    NOTE: The Panoramic roof front and rear blind feet are installed to opposite sides of the vehicle. The front blind LH foot is installed to the RH side of the vehicle; the front blind RH foot is installed to the LH side of the vehicle.

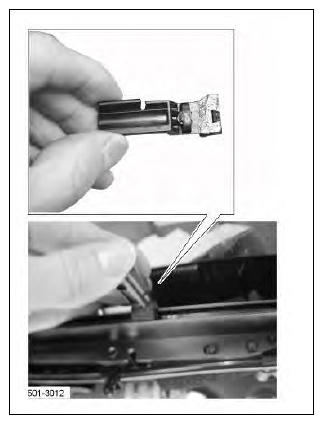

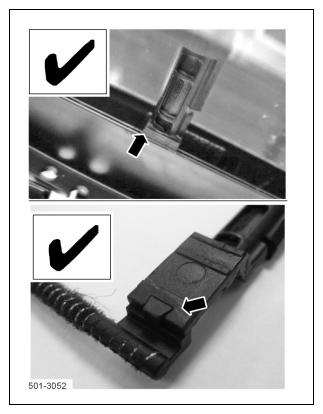

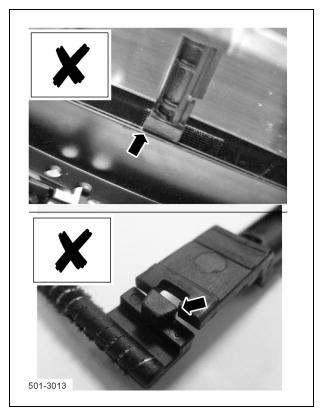

  29. Install the RH blind foot: (rear shown, front similar)
    • Locate the blind foot dove tail onto the peg.
    • Press firmly into place (a 'click' should be heard).
    • Using gentle pressure, make sure the foot is correctly located and cannot move (forward, backward, or sideways).
      G08777778
      G08777779
  30. Repeat step  29 to the LH blind foot.
    CAUTION: Failure to correctly time the blind roller cables will cause the blind to be pulled out unevenly, leaving slack material and causing blind feet failure.
    NOTE: The LH and RH blind feet/drive cables must be the same distance front-to-rear.
    NOTE: You are moving one blind foot to match the other side.

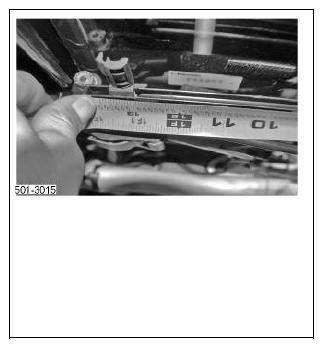

  31. After installing the blind feet measure the distance from the end of the track to the leading edge of the blind foot.
    • On the side that does not have the motor installed (i.e. RH side for the front blind or LH side for the rear blind) insert one end of the drive spindle into the drive flange on the cable and rotate the flange until the blind foot measures the same distance as the blind foot on the side with the motor.
    • Repeat steps 31 to the opposite side.
      G08777780
  32. Install both drive spindles.

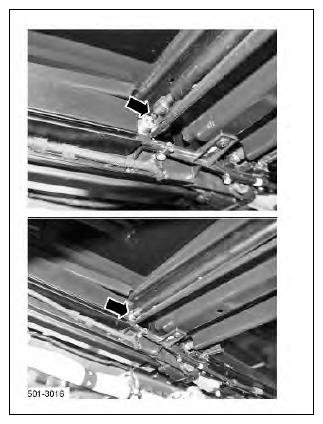

    G08777781
  33. Repeat step  31; remove drive spindles and adjust as necessary.

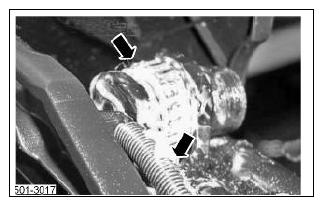

  34. Install spring(s).
    G08777782
    CAUTION: Ensure hands are clean prior to installing the roller blind.
    NOTE: Ensure the blind is installed with the retaining pin pointing down.
    NOTE: In the event the blind tension is released, refer to SSM45450, New Jaguar XJ Panoramic Roof Blind Re-tensioning Procedure  , to re-tension the blind.
  35. Keeping a firm grip on the blind, install the roller blind flat end first into the casting assemblies:
    • 'Jiggle' and remove the retaining pin.
    • Once the dowel (round) end is installed into the casting assembly, the blind will not unwind.

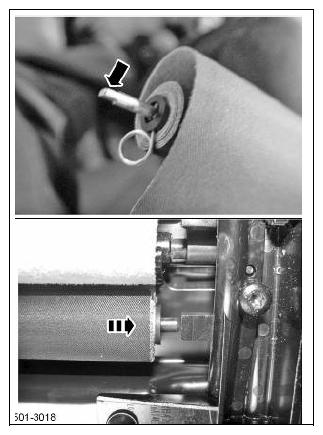

      G08777783
    CAUTION: If the blind feet are incorrectly oriented, the locking tabs will break when the roller blind draw bar is rotated on installation.
    NOTE: Glass panel removed for clarity.
  36. Position the blind for installation:
    • Pull out the blind and rotate to the position shown [A].
    • Position the blind above the clip as shown [B].
      G08777784
    CAUTION: Excessive force will cause the blind feet to break.
    NOTE: Do not allow blind spring tension to push inward against the blind feet when installing the roller blind draw bar onto the blind feet.
    NOTE: The blind foot trough must remain in line with the draw bar channel bead.
  37. Secure the blind to the blind feet.
    • Locate the blind into the blind foot.
    • Apply gentle pressure
    • Rotate the blind down to locate onto the blind feet.
      G08777785
  38. Repeat step  35- 37 to opposite blind.
  39. Continue to next appropriate Repair Procedure.

REPAIR PROCEDURE 11: V00477 - V08100

NOTE: V08101 - V10285 only if full headliner has been lowered.
  1. Verify Panoramic roof cassette front and rear mounting studs are centered.
    • Remove the two front mounting nuts.
    • If necessary, use a suitable socket and extension bar to bend the two front mounting studs until centered in the holes
    • Install the two front mounting nuts:
      • Tighten to 5.4Nm (4.0lbf ft)  .
    • If present, remove and discard the two rear nuts.
    • If necessary, use a suitable socket and extension bar to bend the two rear mounting studs until centered in the holes.

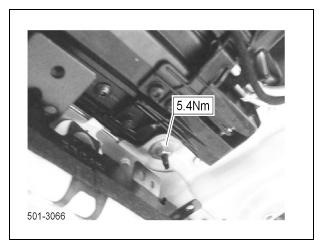

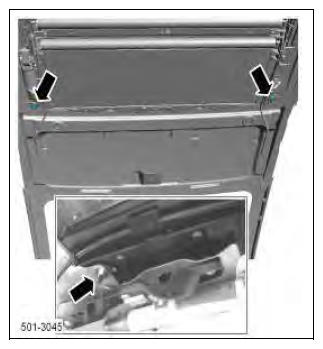

      G08777786
    G08777787
    CAUTION: Ensure the alignment pegs do not protrude through the slot in the body.
    NOTE: Apply a small amount of grease to the inside of the socket to prevent the broken peg from remaining in the vehicle.
  2. Use a suitable socket and extension bar to remove the front windshield locating pegs.

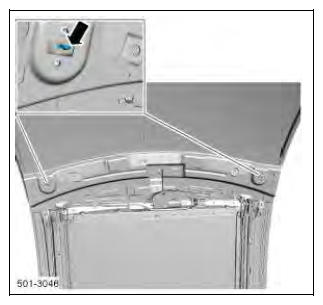

    G08777788
    CAUTION: Ensure the alignment pegs do not protrude through the slot in the body.
  3. Repeat step  2 to the rear windshield locating pegs.

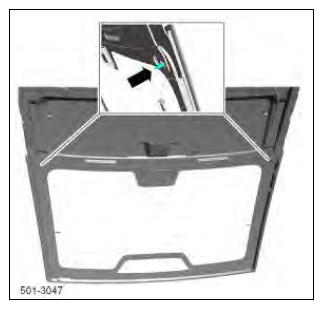

    G08777789
  4. Remove screw (RH) in [A]:
    • Check and remove any glue residue from screw or Panoramic roof cassette.
    • Install screw; tighten to specified torque value.
    • Repeat for LH screw.
    • Tighten screws in [B] to specified torque values.

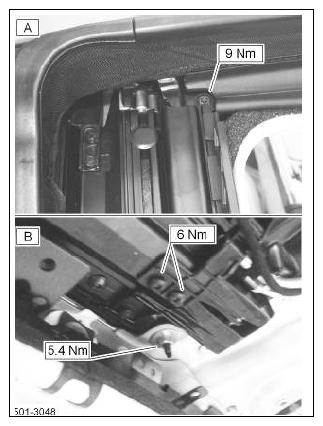

      G08777790
  5. Tighten screws in [C] and [D] to specified torque values.

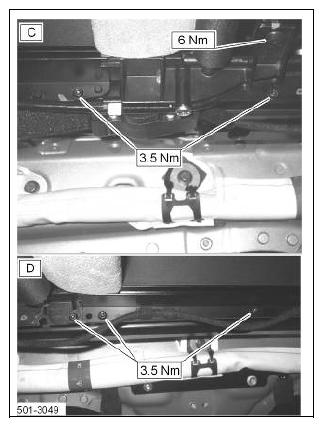

    G08777791
  6. Tighten screws to specified torque value.

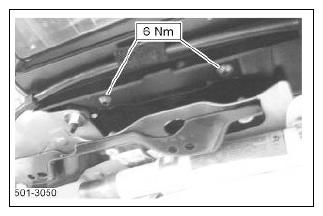

    G08777792
  7. Continue to next appropriate Repair Procedure.

REPAIR PROCEDURE 12: V00477 - V10285

NOTE: If the rear blind is juddering (V0477-V10050), carry out Repair Procedure 14, Degrease the Guides  .
  1. With the Panoramic roof blinds installed and prior to installing the headliner, verify blind operation:
    • Turn ignition 'ON'.
    • Close the Panoramic roof glass panel.
    • Open/close Panoramic roof blinds five times.
  2. Ensure the blinds are closing evenly and that the tension is equal on both sides of both blinds.
    • If blinds are operating properly, continue to step 3.
    • If blinds are not operating properly, refer to Repair Procedure 10, step  31, to adjust the roller blinds.
    • If the blinds are closing evenly but not completely, use IDS/SDD procedure to calibrate the roof opening panel and blinds.
  3. Install the headliner.
  4. Continue to next appropriate Repair Procedure.

REPAIR PROCEDURE 13: V00477 - V07500

  1. Turn ignition 'ON'.
  2. Open Panoramic roof opening panel to the full tilt position.
  3. Turn ignition 'OFF'.
  4. Remove the RH outer sight shield.
    • Note the position and gap between the top of the shield and the roof opening panel.

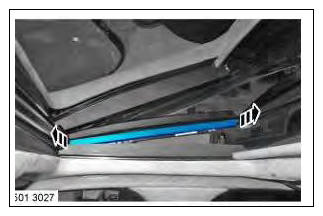

      G08777793
    NOTE: The sight shields must be installed with the tapered end towards the front of the vehicle.
  5. Install the RH outer sight shield.
    • Slide the shield as far forward as possible.
    • Secure the five clips.

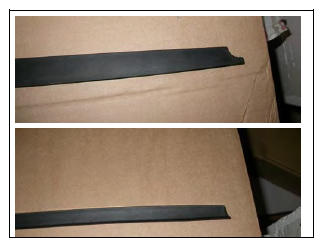

      G08777794
  6. Repeat steps  1 -  5 to the LH outer sight shield.
  7. Turn ignition 'ON'.
  8. Open Panoramic roof opening panel to the full-open position.
  9. Turn ignition 'OFF'.
  10. Remove RH inner sight shield.

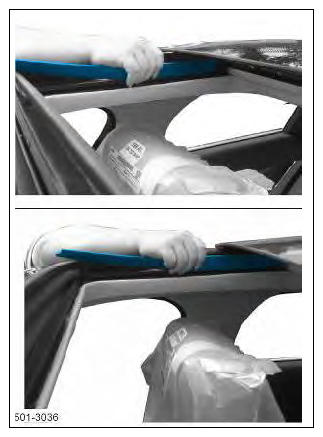

    G08777795
    CAUTION: Ensure there is a 2mm gap between the rear of the sight shield and the drive spindle.
  11. Install the RH inner sight shield.
    • Secure the rear clip to the rail.
    • Secure the remaining four clips while sliding the shield rearward.
  12. Repeat steps  10 -  11 to the LH inner sight shield.
  13. Continue to next appropriate Repair Procedure.

REPAIR PROCEDURE 14: V00477 - V10049

  1. Turn ignition 'ON'.
  2. Open the Panoramic roof rear blind to the full-open position.
  3. Turn ignition 'OFF'.
    NOTE: For V00477 - V06000 that have had the rear blind feet replaced, fully clean the blind feet only; do not  replace the blind feet again.
    NOTE: For V06001 - V10049, replace blind feet if juddering (Repair Procedure 9).
  4. Replace the rear blind feet only if juddering (V06001 - V10049).
    NOTE: Panoramic roof rear (stationary) glass shown removed for clarity.
  5. Use a suitable cloth/alcohol wipe, clear out the rear blind RH guide, removing as much grease as possible.

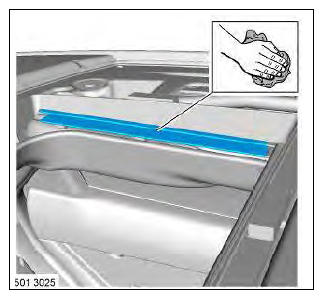

    G08777796
  6. Repeat step  4 to the rear blind LH guide.
  7. Continue to next appropriate Repair Procedure.

REPAIR PROCEDURE 15: V00477 - V08089; LWB ONLY

  1. Release the RH rear seat vanity mirror.
    • Release the two clips.

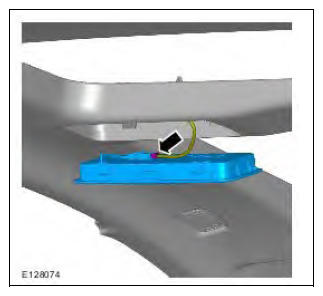

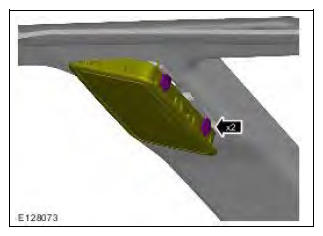

      G08777797
  2. Disconnect the electrical connector.
    G08777798
  3. Install the RH rear seat vanity mirror.
    • Secure the two clips.
  4. Connect the electrical connector.
  5. Repeat steps  1 -  4 to the LH rear seat vanity mirror.
  6. Continue to next appropriate Repair Procedure.

REPAIR PROCEDURE 16: V00477 - V04369

  1. Refer to Workshop Manual section 415-01 and remove the Audio Unit Amplifier.
  2. Perform a luggage compartment water test.
    • If water ingress is present, refer to Technical Bulletin JTB00210, Water Ingress via the 'D' Pillar  , to repair as necessary. To be carried out as a separate Warranty claim.
    NOTE: Water ingress repairs must be carried out as a separate Warranty claim.
  3. Inspect the amplifier for signs of water ingress (water stains, etc.)
    • If signs of water ingress are present, replace  the Audio Unit Amplifier and program with IDS.
    • If no sign of water ingress is present, install the original  Audio Unit Amplifier.
  4. Install an Audio Unit Amplifier water shedder.
  5. Continue to next appropriate Repair Procedure.

REPAIR PROCEDURE 17: V00477 - V10285

CAUTION: Refer to K064 IDS Care Points, pages i - iv, prior to commencing software updates.
CAUTION: Ensure all SDD-displayed ignition 'ON'/ignition 'OFF' requests and instructions are carried out; failure to perform these steps may cause damage to control modules in the vehicle.
CAUTION: A Jaguar-approved Midtronics Vehicle Power Supply must be connected to the vehicle battery during diagnosis/module programming.
NOTE: For vehicles within the VIN range V00477 - V05279, ensure a new Audio Control Module (ACM) is available prior to commencing this Repair Procedure. SDD will confirm if ACM replacement is necessary. Do not  replace the ACM unless and until  instructed to do so by SDD.
NOTE: Ensure the vehicle's USB Audio is functional before starting updates by playing music through vehicle USB port. If the vehicle's Audio/Video button is grayed out prior to starting SDD downloads, perform a Vehicle Battery Reset.
NOTE: The following items are required:

Two (2) formatted USB memory sticks with at least 256Mb of free space for transferring files from SDD to the vehicle; one (1) USB memory stick with MP3/WAV/AAC audio files

  1. Connect the Jaguar-approved Midtronics Vehicle Power Supply to the vehicle battery.
    NOTE: IDS must be loaded with IDS-DVD124_V6.01 or later and  Calibration File 58 or later.
  2. Connect the Integrated Diagnostic System (IDS) to the vehicle and begin a new Symptom Driven Diagnostics (SDD) session.
  3. Follow the on-screen prompts, allowing SDD to read the VIN and identify the vehicle.
  4. Choose 'Campaigns' from the Session Type selection screen.
    NOTE: In the event that a routine fails at any stage, the SDD recommendations screen will automatically change to show that the routine has 'completed'; on-screen prompts during the routine inform whether a download has completed successfully.
  5. Select the 'Recommendations' tab.
  6. From the Recommendations tab, select and 'Run' the following software updates in the order they appear:
    • XJ Customer Assurance Program - Stage 1 - Preparation - Important Instructions
    NOTE: If download fails to successfully be completed, disconnect the Midtronics power supply and vehicle battery to fully reset the vehicle. After 30 seconds, connect the vehicle battery and Midtronics power supply.
    • XJ Customer Assurance Program - Stage 2 - FCDIM Update Part A
    NOTE: Message 'Warning Communications Failure: IAM' may be displayed at the conclusion of stage 3; this may be ignored.
    NOTE: If SDD does not recognize the files transferred through the vehicle's USB port, perform a Vehicle Battery Reset and restart Stage 3.
    • XJ Customer Assurance Program - Stage 3 - FCDIM Update Part B
    NOTE: SDD will confirm if Audio Control Module (ACM) replacement is necessary. Do not replace the ACM until instructed to do so by SDD.
    NOTE: Ignore the SDD instruction to perform a vehicle lock-down procedure; this will be performed as part of Repair Procedure 20.
    • XJ Customer Assurance Program - Stage 4 - Audio Control Module Update
    • Only if instructed, refer to Workshop Manual section 415-01 and replace the ACM.
    • XJ Customer Assurance Program - Stage 5 - Instrument Cluster Module Update
    NOTE: DTC U0300 may become permanently stored in the FCDIM; it cannot be cleared and must be ignored.
    • XJ Customer Assurance Program - Stage 6 - Vehicle Set up/Recovery.
      • Select 'Traffic Messaging Channel' and then select 'tick'.
        • Only if instructed by the Jaguar Technical HelpLine: select 'Voice Car Configuration setting'.
      • Select 'Vehicle Set-up Instruction' and then select 'tick'.
      • Select 'MOST recovery help information' and then select 'tick.
  7. Follow all on-screen instructions to complete this task.
  8. Exit the current session.
  9. Disconnect the IDS and vehicle power supply.
    NOTE: Ensure Repair Procedure 20 is performed prior to testing any new features.
  10. Continue to next appropriate Repair Procedure.

REPAIR PROCEDURE 18: V00477 - V02989

  1. Refer to Workshop Manual section 211-00 and drain the power assist steering (PAS) fluid only.
  2. Refer to Workshop Manual section 303-12 and remove the left-hand (LH) air cleaner.
  3. Release the PAS fluid reservoir.

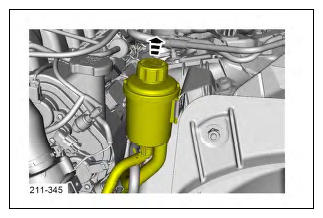

    G08777799
  4. Disconnect the PAS fluid feed pipe from the PAS pump.

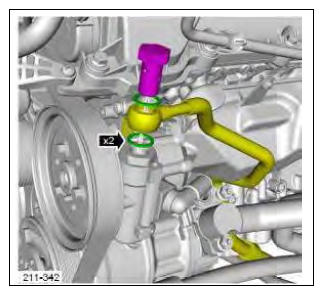

    • Remove and discard the sealing washers and banjo from the PAS fluid feed line.
      G08777800
  5. Refer to Workshop Manual section 100-02 and raise and support the vehicle.
  6. Disconnect the electrical connector.
    G08777801
    NOTE: Note the fitted position of the steering column flexible coupling.
  7. Release the steering column flexible coupling.
    G08777802
  8. Release and support the steering gear.

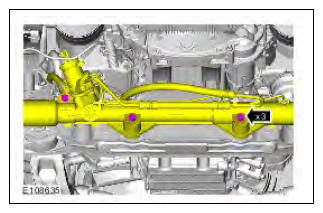

    G08777803

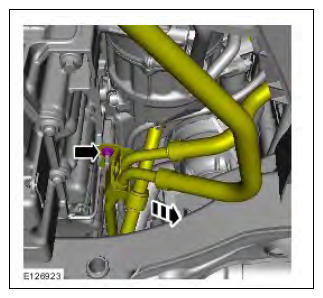

  9. Release the PAS pipe support bracket.
    • Remove the nut.
      G08777804
  10. Use a suitable jack and support the engine.
  11. Remove the nut.
    G08777805
  12. Remove the engine mounting assembly:
    • Remove the four (4) bolts.
      G08777806

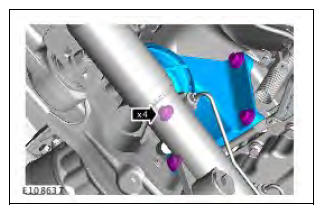

    NOTE: Suspension shown removed from vehicle for clarity.

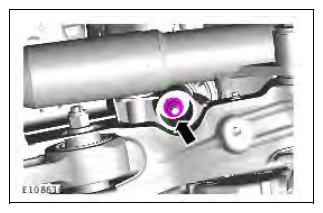

  13. Detach the PAS fluid feed line from the retaining clips.
    G08777807
  14. Using a suitable piece of wood, support the engine on the crossmember.
    G08777808

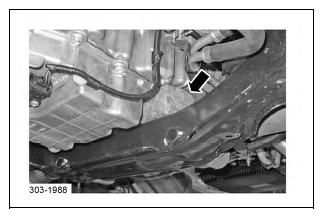

  15. Remove and discard the PAS fluid feed line.
    • Install the new PAS fluid feed line.
    • Remove the jack.
    • Lower the vehicle.
    • Position the PAS fluid feed line to the PAS pump union.
  16. Raise the vehicle.
  17. Use a suitable jack to support the engine.
  18. Remove the piece of wood from the crossmember.
  19. Install the engine mount:
    • Tighten the four (4) bolts to 48Nm (35.5lbf ft)  .
  20. Install the nut:
    • Tighten the nut to 63Nm (46.5lbf ft)  .

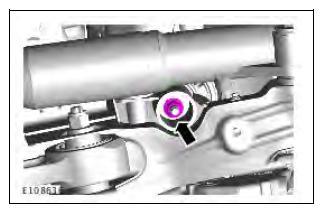

      G08777809
  21. Secure the PAS pipe support bracket:
    • Tighten the nut to 10Nm (7.4lbf ft)  .
      G08777810
  22. Secure the PAS gear:
    • Tighten the three (3) bolts to 100Nm (74lbf ft)  .

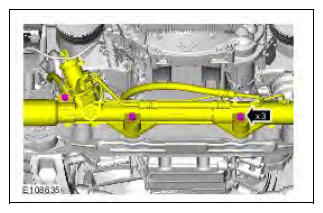

      G08777811
  23. Secure the steering gear flexible coupling:
    • Tighten the bolt to 35Nm (25.8lbf ft)  .

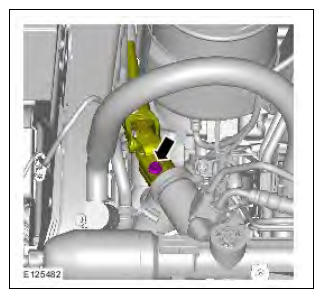

      G08777812
  24. Connect the electrical connector.
    NOTE: Suspension shown removed from vehicle for clarity.

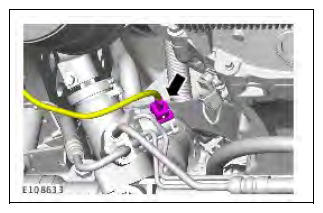

  25. Secure the PAS fluid feed line to the retaining clips.
    G08777813
  26. Lower the vehicle.
  27. Using a new banjo and sealing washers, secure the PAS fluid feed pipe to the PAS pump:
    • Tighten the banjo to 25Nm (18.4lbf ft)  .

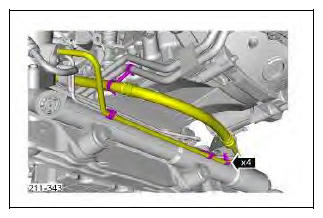

      G08777814
  28. Secure the PAS reservoir.

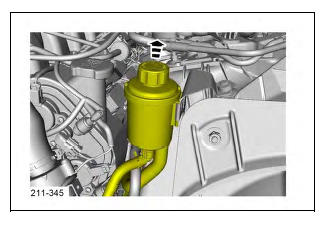

    G08777815
  29. Refer to Workshop Manual section 303-12 and install LH air cleaner.
  30. Refer to Workshop Manual section 211-00 and fill the power assist (PAS) steering fluid only.
  31. Continue to next appropriate Repair Procedure.

REPAIR PROCEDURE 19: V00477 - V06854

REPLACE BATTERY (ONLY IF NECESSARY)

  1. Refer to Workshop Manual section 414-01 and replace the battery.

REPAIR PROCEDURE 20: V00477 - V10285

POST-FEATURE ENHANCEMENT PROGRAM QUALITY CHECKS

  1. To ensure new vehicle settings are communicated across required vehicle modules on completion of the software update carry out the following:
    • Switch the ignition 'OFF".
    • Lock the vehicle; wait five minutes.
    • Unlock the vehicle.
    • Start the engine; leave running for two minutes.
    • Turn the engine 'OFF'.
    • Lock the vehicle; wait a further five minutes.
    • Unlock the vehicle.
    • Vehicle modules will have been reset successfully.
  2. Perform the following static checks:
    NOTE: Unsold US vehicles only eligible for UPS3110 (K070) must have Owner's Handbook JJM 18 02 34 112 installed in place of JJM 18 02 34 111.
    • Place updated Owner's Handbook JJM 18 02 34 111 (NAS English)/JJM 20 02 34 111 (NAS Canadian French) in the vehicle.
    • Inspect interior for damage and cleanliness, paying particular attention to the headliner and seats.
    • Inspect exterior of the Panoramic roof for damage.
    • Check the operation of the Panoramic roof and sun blinds.
    • Check operation of the business tray latches and vanity mirrors.
    • Set Interactive Voice ™ language to either French Canadian or US English as appropriate.
    • Door glass initialization, luggage compartment lid stop.
  3. Start the vehicle, move outside to an open area, and perform the following:
    • Press the voice button on the steering wheel; wait for the beep to end.
    • Using Interactive Voice™, tune the radio to a known strong frequency, e.g. "Radio Tune Frequency Ninety Seven Point One". Ensure the radio frequency changes and is displayed on the HLDF and that the Voice Command is acknowledged by Voice feedback and the display in the cluster.
    • Enter the Navigation Menu, 'Accept' the disclaimer, and select the Navigation Menu.
    • Select 'Destination Entry'. Set Navigation search area; ensure the new buttons for 'POI', 'Home', and the numbered '1-5' stored location buttons are displayed.
    • Program customer radio presets (AM/FM/SDARS); insert CD if previously removed.
    • Ensure date/time is set correctly (local time, 12/24HR format).
  4. Perform a road test, checking for the following:
    • Squeaks and rattles, paying attention to the Panoramic roof area.
    • Wind noise, paying attention to the Panoramic roof area.
    • Check steering system lock-to-lock and all fluid levels (V00477 - V02989 only).
  5. Pair the customer's phone:
    • Delete 'jaguar' from the customer's phone.
    • Refer to SSM45189, Phone Not Pairing After an IAM Software Update  , and pair the customer's mobile telephone to the vehicle (if necessary).

K064 IDS CARE POINTS

VEHICLE PREPARATION

Vehicle Battery Voltage
  • Ensure vehicle battery open circuit voltage (OCV) is 12.5V or greater before attaching the approved power supply to the vehicle's battery. (The power supply's negative cable should be attached to the vehicle chassis where the negative battery cable is connected.)
  • Batteries with OCV less than 12.5V must be charged using the approved battery charger.
  • It is NOT acceptable to charge the vehicle battery while IDS is being used to perform ANY vehicle programming. (Charge the battery first, remove surface charge, ensure OCV is >/= 12.5V, then apply the approved power supply.)
  • During module programming, the on-screen vehicle battery voltage indicator may turn red briefly while SDD establishes a programming session with the target control module; this is normal.
Vehicle Electrical Draw
  • To reduce electrical draw/noise, close or latch all doors and luggage compartment lid.
  • Switch 'OFF' all exterior lamps and all ventilation blower fans.
  • Switch 'OFF' all Infotainment Audio/Video systems.
  • Unplug any components connected to the iPod®/USB interface.
Vehicle Control Modules
  • Always start the SDD session with the vehicle's existing control modules fitted, and only replace modules if and when SDD indicates this is required  .
NOTE: Customer settings to be noted before and reset after software update
  • Remove CD if fitted to the IAM before starting the process
  • Record all presets (AM/FM/SDARS) before starting; reset when complete
  • Record Navigation Search Area and reset this in the navigation system and from the Navigation Destination entry feature in Voice Commands
    • Press the voice command button > say 'Navigation Go To Address' > 'Change search area' > input desired search area > exit commands
  • All navigation destinations will be deleted
  • Set window stops again when complete
  • Bluetooth phone will need to be re-paired. The customer must erase previously paired 'Jaguar' network from the phone before re-pairing to the vehicle
  • Set the system voice language to Setup - system - language - US English or French Canadian male or female  depending on customer preference
  • Save all shortcuts and configure again when complete
  • Record and reset all volume presets
  • Record and reset all customer screen settings
  • Record and reset all instrument pack vehicle setup settings
  • Record and reset all instrument pack display settings
  • Recommend customer complete voice training
  • Record reset luggage compartment lid position

IDS PREPARATION

IDS Software
  • Ensure IDS-DVD124_V6.01, Calibration Files 58, and As-Built Files 58 are fully installed.
  • Ensure all IDS maintenance has been performed recently. (Defrag, Scan Disc, File Clean-Up etc performed)
IDS Hardware
  • Inspect diagnostic cables and hardware, and replace as required.
  • Only use approved IDS equipment that meets all published hardware and software specifications. (Windows XP Service Pack 2 & Internet Explorer® 6 etc)
IDS Connectivity
  • Ensure connectivity is active or be prepared to use alternate PC to obtain vehicle software as required via USB memory stick.

MISCELLANEOUS PREPARATION

USB Flash Drive

Stages 3 & 4 require that files are transferred from the IDS tester to the vehicle via a USB memory stick. While the on-screen instructions for this process recommend using a USB device with at least 256MB of free space, the following specs and care points are critical.

  • A blank 1GB USB memory stick (or larger) is preferred.
  • DO NOT use USB memory devices that implement 'U3' technology. 'San Disk' branded devices typically employs this feature which creates multiple drive letters. THIS IS NOT PREFERABLE.
  • Disconnect/Remove all other 'Removable Disk Drives' from the IDS unit before starting this campaign, including the SD card slot.
  • When viewing 'My Computer', the only drive(s) visible should be the 'C:\' drive and the 'DVD' drive (when fitted), but no removable drives.
  • Carefully read the on-screen prompts for inserting/removing the USB drive, as this will save time by having the USB drive correctly inserted into the laptop or vehicle when expected.
  • When asked to insert the USB drive into the laptop, allow Windows XP time to load it. An auto run popup window will usually appear once the drive has been recognized by windows.

SESSION START

Verify Robust Communications with Vehicle

At the start of every diagnostic session, after the desired session type is selected, SDD performs a comprehensive data collection process. Afterwards, a network summary screen is displayed.

  • Review the results of the network summary screen that is displayed before selecting the Recommendations tab to begin the campaign.
  • If SDD DOES NOT DISPLAY A 'GREEN TICK' for the FCDIM, ACM, and IPC, check the connections and ignition state, and then repeat the data collect process.
  • If the problem IS  resolved, continue with the instructions in the campaign. IF NOT RESOLVED  , these communication failure issues will require separate troubleshooting before continuing with this campaign  . Contact the Technical HelpLine as required.

VERIFY REQUIRED DATA IS AVAILABLE

SDD requires a combination of 'live data' from the vehicle as well as 'As-Built' data to effectively qualify the vehicle specifications, hardware and software levels, etc. Without information from both sources, SDD may not be able to resolve vehicle software effectively and one or more programming stages may fail with the 'No Software for This Variant' message.

When the Recommendations tab is selected to display diagnostic candidates, additional candidates warning the user about 'missing as-built data' may be displayed at the top of the list. If this occurs, immediately confirm that the most current as-built data has been loaded to the tester by checking for new updates using the System Utilities.

  • If not up-to-date, download the latest as-built files for Jaguar XJ and then start a new session for this vehicle to confirm as-built is now available.
  • If the as-built data is up-to-date, then this specific vehicle may be missing as-built data.
  • Vehicles that are missing as-built data may encounter problems selecting software. Consult with your Technical HelpLine as required to resolve this issue.

Additional considerations when as-built data is not present on the tester.

If any stage fails in such a way that SDD must be restarted, users must ensure that the original session is resumed. In most cases, SDD will prompt you to resume the session in progress. If not, begin a new session, then immediately select the 'Sessions' tab at upper right side of screen. From the Sessions tab, select 'Load' to load the previous session. This is required to ensure SDD has all  of the control module data originally collected from the vehicle at the start of the original session. Starting a new session with partially programmed modules can limit the data available to SDD, preventing the effective completion of the remainder of this campaign.

GENERAL NOTES

Always follow on-screen ignition status instructions
Keyless Vehicle Module 'Failures'

There are several points during this campaign where SDD will collect various control module data before proceeding. Each module will be listed on-screen in turn by name. Occasionally, the Keyless Vehicle Module may be displayed with a 'Red X', indicating a negative response. For the purposes of this campaign, these errors may be ignored.

'Unknown Status' on 'Confirm Software to be Downloaded' Screens

During all vehicle software download procedures on SDD, a software confirmation screen with an evaluation of current and selected software is displayed for review by the user before the download is allowed to start. Below the selected software listing is general advice for how to proceed.

During this campaign, it is expected that SDD will NOT  be able to confirm when updates are required, and the following advice will be offered at every stage:

  • 'The overall download status of this module cannot be determined due to the unknown status displayed above, ensure that the latest application release has been loaded before proceeding.'
  • 'Advice can be sourced via the Technical Hotline.'

Provided the correct Calibration file v59 or later is currently loaded in SDD, these prompts may be ignored; do not contact the technical helpline regarding these prompts  .

STAGE SPECIFIC NOTES

Stage 2
  • The incremental changes of IDS-DVD124_V6.01 include an additional download (three total).
  • Because the FCDIM is programmed in several stages, it is temporarily left in a partially programmed state during Stage 2.
  • During the latter half of Stage 2, two errors will be seen during the collection of control module data from the vehicle prior to the software selection. The Audio Amplifier Module and Audio Front Control Module will have a 'Red X' displayed in front of them. This communication failure is expected in the latter half of Stage 2 and may be ignored.
  • At the start of ANY  software download procedure, SDD provides an estimate of time required to complete the download. During Stage 2, the typical time estimate is not possible and '0 Hours 0 Minutes' will be displayed. This is normal.

    The approximate download times are:

    • Four (4) minutes
    • One (1) minute
    • Two (2) minutes
NOTE: Download times displayed for other stages are accurate to within one (1) minute.
  • During Stage 2, there may be one or more software downloads to the FCDIM. SDD will display a software download report showing the various stages of these processes. Towards the end of each download during Stage 2, it is normal to see two 'Red Xs' and the message 'An unspecified error occurred during the software download process.' displayed. Ignore these errors during Stage 2, and continue on to Stage 3 to complete the FCDIM programming.
  • Towards the end of Stage 2, there is on-screen instructions to disconnect/re-connect the vehicle battery. After this is done, there is information about the FCDIM remaining blank. Since the ignition is 'OFF' at this point, the FCDIM will be blank regardless of the programming success/failure. Switch the ignition 'ON' to confirm the FCDIM remains off/blank at the end of Stage 2. If not blank with the ignition 'ON', then Stage 2 has not been completed successfully.
Stage 3
  • During Stage 3, since the FCDIM is partially programmed, two errors will be seen during the collection of control module data from the vehicle prior to the software selection. The Audio Amplifier Module and Audio Front Control Module will have a 'Red X' displayed in front of them. This communication failure is expected and may be ignored.
  • During Stage 3, while SDD resolves the vehicle software to be downloaded, there will be an extended delay of up to two minutes before the selection is displayed; this is normal.
  • If SDD does not recognize the files transferred through the vehicle's USB port, perform a Vehicle Battery Reset and restart Stage 3.
    • In the event SDD again does not recognize the files after performing a Vehicle Battery Reset, perform a second Vehicle Battery Reset and start Stage 2 a second time.
  • Towards the end of Stage 3, while the FCDIM is rebooting after final programming, it is normal for the screen to turn white for a short time.
Stage 4
  • To clarify the on-screen instructions, the 'IAM' acronym is used to describe the Integrated Audio Module.
  • The incremental changes of IDS-DVD124_V6.01 include an additional download (three total). Two original downloads have been split into three in an effort to reduce complexity and increase success rates.
  • All vehicles, including those requiring IAM replacement, require Stage 4 download.
  • At the start of Stage 4, confirm that the FCDIM is now operational again indicating all programming during Stages 2 and 3 were successful. If the FCDIM is still white or blank, Stage 2 and/or 3 may need to be repeated. First attempt another 'battery reset' as instructed at the end of Stage 3. If necessary repeat Stages 2 and 3 a second time while remaining in the current session. If proper function cannot be restored, contact the Technical HelpLine before proceeding with any additional recovery work.
  • Once Stage 4 is successfully completed, SDD will display a reminder to perform a complete vehicle lock-down; this should be done after successfully completing Stages 5 and 6.
Stage 5
  • No additional specific advice for this stage is required; follow all onscreen prompts to complete this stage.
Stage 6
  • New 'Vehicle setup/recovery' menu introduce the ability to add Traffic Master Channel and Voice Car Configuration settings.
  • Some on-screen text during the enablement of TMC is not translated correctly or references 'Voice Audio'. These text errors will be corrected on a future patch and may be ignored.
scientia non olet · About LEMON Manuals
