4.28.1 Description

The Engine Torque is monitored to ensure that there is no large unintended torque available which is greater than that requested by the driver.

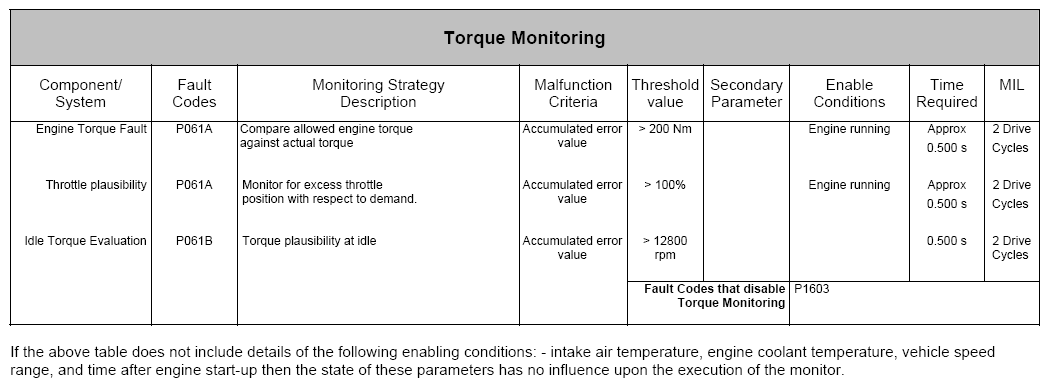

Fig 1: Torque Monitoring (Diagnostic Trouble Codes P061A, P061B)
G06421873Courtesy of JAGUAR CARS, INC.
