3.1.3 Unit and Scaling ID definition

Fig 1: Unit And Scaling ID Definition Chart

Courtesy of JAGUAR CARS, INC.

The Unit and Scaling ID is a one (1) byte identifier. This references the scaling and units to be used by external test equipment when calculating and displaying the test values (results). This includes the minimum test limit and the maximum test limit for the standardized and manufacturer defined Test ID requested.

All unit and scaling IDs used are specified in Fig 2.

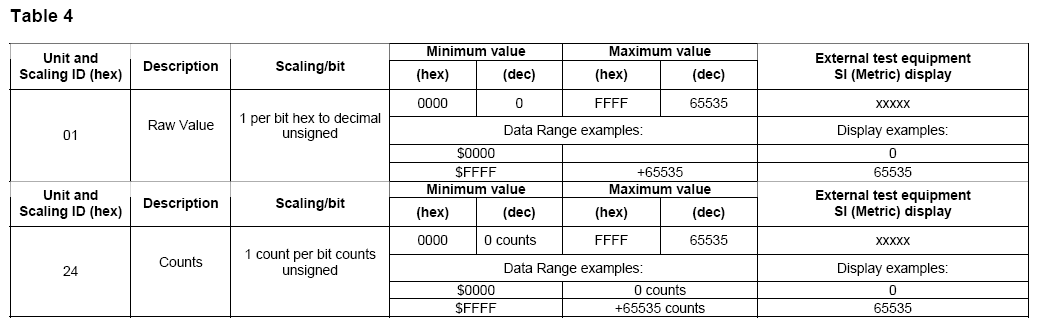

Fig 2: Table 4
