On Board Diagnostics - 4.2L V8
>>
2 Introduction
>>
2.1 Inputs and Outputs
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
2.1 Inputs and Outputs

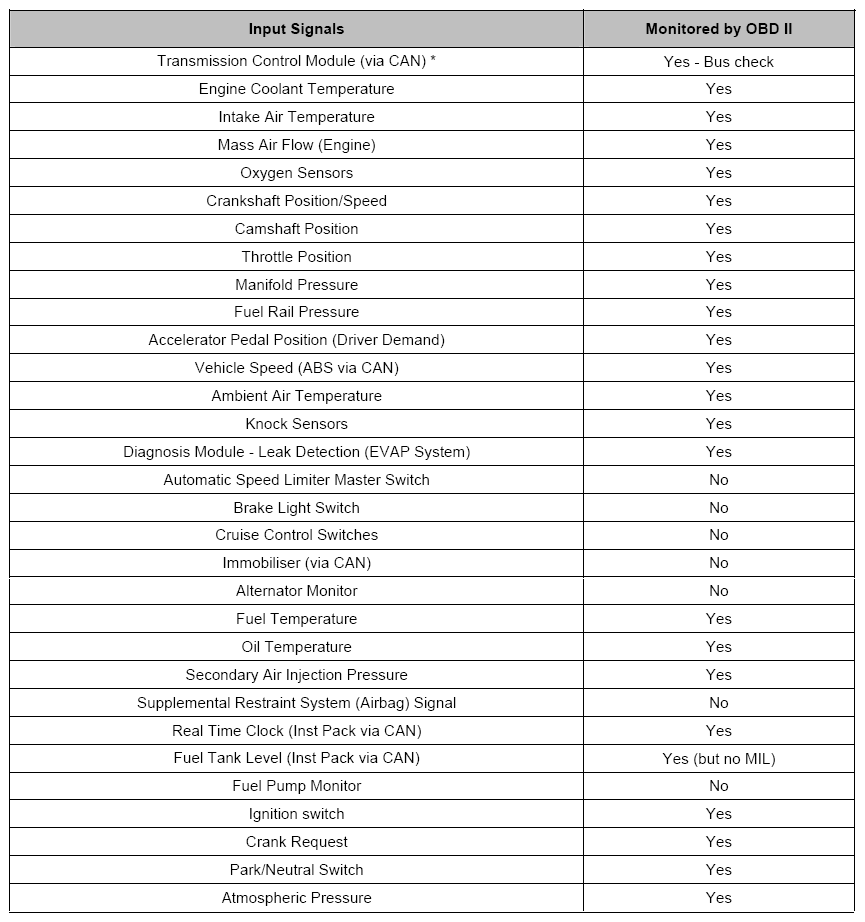

Fig 1: Input Signals Chart
Courtesy of JAGUAR CARS, INC.

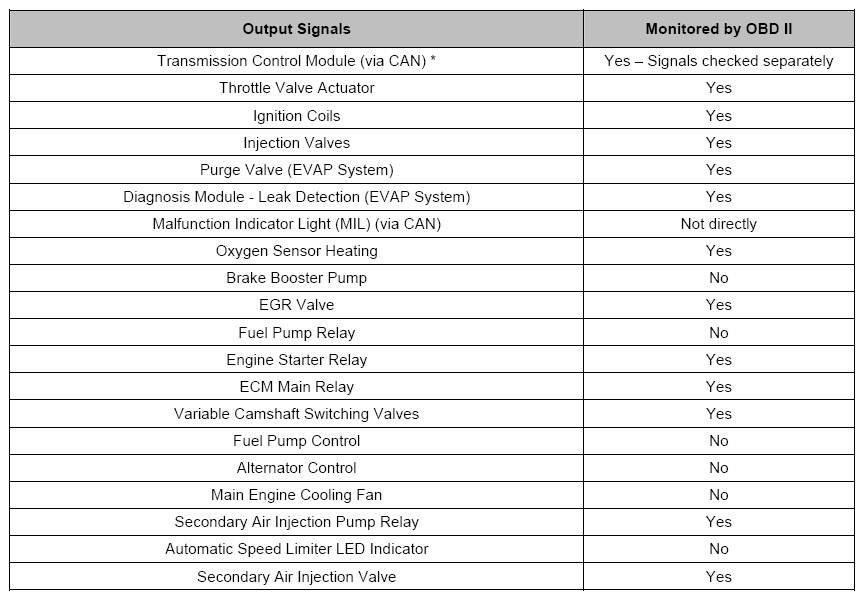

Fig 2: Output Signals Chart
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
