Battery Tray



Battery Tray (86.15.11)

Removal
1. Remove the battery.
2. Remove the spare wheel and tire.
3. Detach the power distribution box.

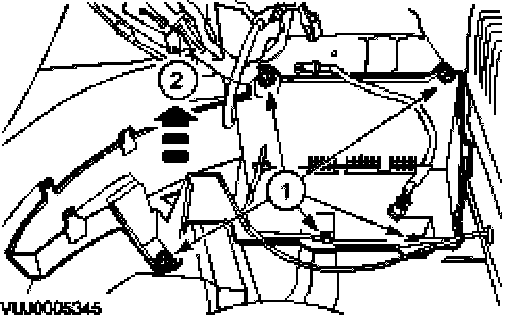

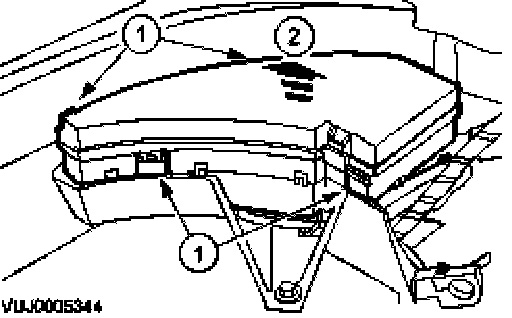

- Detach the power distribution box retaining tangs.
- Detach the power distribution box.







4. Remove the battery tray.

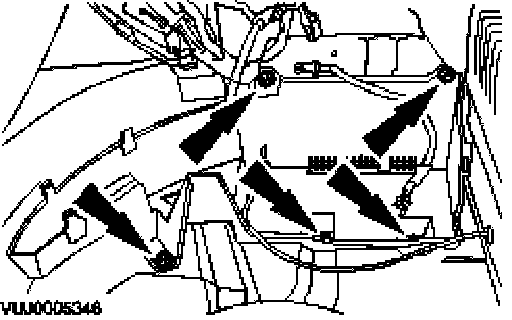

- Remove the battery tray retaining bolts.
- Remove the battery tray.







Installation
1. To install, reverse the removal procedure.
- Tighten to 10 Nm.
